| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001 : 2008 , SGS , RoHs |
| Model Number: | RJ45 Patch Cable |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable price |
| Packaging Details: | 100pcs in 1 tray |
| Delivery Time: | 7 - 10 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5,000,000 PCS / Month |
| Name: | RJ45 Jacket 8P8C | Gold-plated:: | Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" |
|---|---|---|---|
| Application: | Network Module Plate,Networking | Conductor: | BC/CU/CCC/CCA/CCS |
| Conductor Material: | CCA/CCS/CCAM/BC/OFC/CCC | Material: | Plastic |
| Type: | Cat 6 | Color: | Optional |
| High Light: | SGS CAT6 RJ45 Patch Cord,26AWG RJ45 Patch Cord,UTP RJ45 Patch Cable |
||

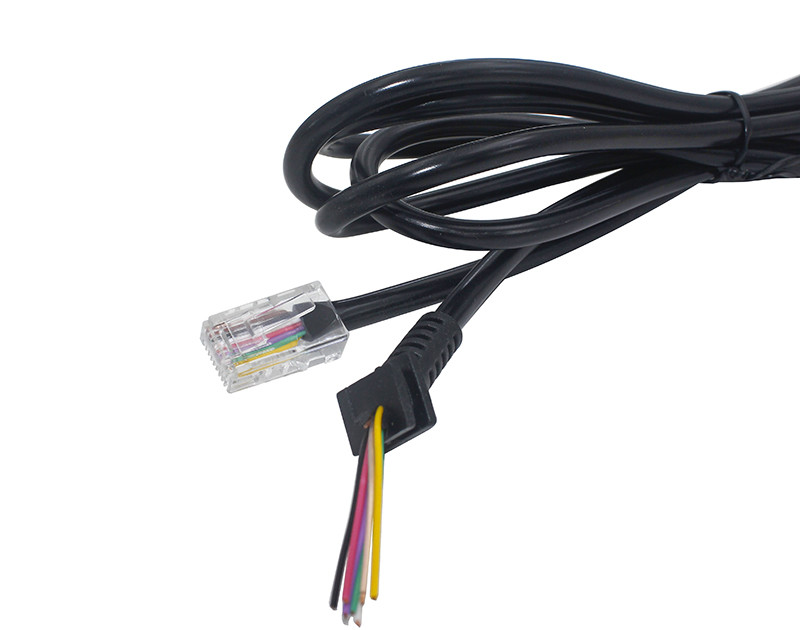

RJ45 Patch Cable UTP 26AWG Stranded Copper With Different Lengths
Specification
Conductor Solid:Cat6 Patch Cable
Conductor stranded :(26AGW)
Conductor Material:.Copper
Cores/Pairs:8/4
Sheath:5.2±0.1mm PVC/ROHS/LSOH/PVC(UV)/PE
Insulation: High-density Polyethylene (HDPE)
Enhance connector: two-row RJ45 8P8C gold plating 30U”
Features:
Mechanical Properties
Insert times ≥1500 times
Contact stability 20mΩ max variation
Pin retentively ≥110N
Elongation:Min. 300%
Tensile strength:Min.1.68Kg/mm2
Ratted Temperature: -20 up to +75°C
Electrical Properties (at 20°C)
| Conductor Resistance | Max.9.38Ω/100m |
| Resistance Unbalance | Max.2% |
| Insulation Resistance | Max.150Ω/Km |
| Mutual Capacitance | Max.5600pF/100m |
| Capacitance Unbalance | Max.330pF/100m |
| Impedance | 100±15 |
| Spark Test | 2000v |
| Velocity of Propagation |
67% |
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .
All the step are doing by ourself . So we can control the quality .
|
Manufactured under strict controls |
RoHS compliance |
|
ISO 9001:2008 |
OEM for PULSE |
|
UL Certification |
Active Environmental policy |
|
Reach Cetitifaction |
Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
|
Case.1 |
Stock |
25% |
|
Case.2 |
3-4 Weeks |
70% |
|
Case.3 |
5-6 Weeks |
5% |
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays
Development Production
Wish To Be Your Best Supplier and Supporter In Your connector Solutions
------------- PHC Sales & Support Team
