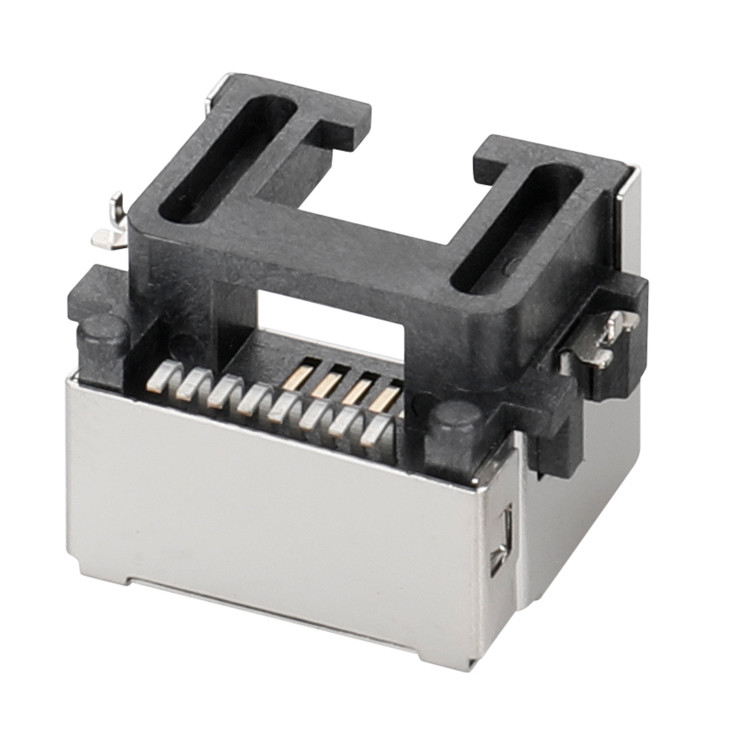

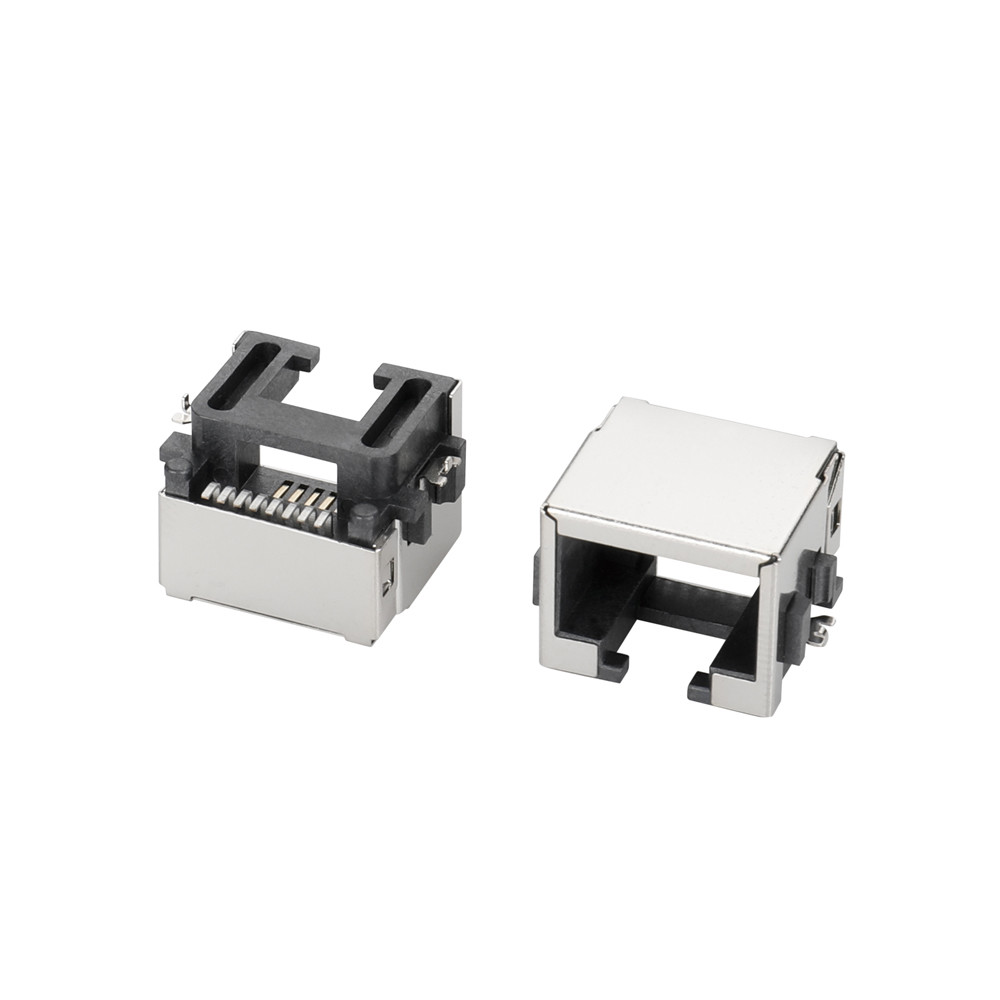

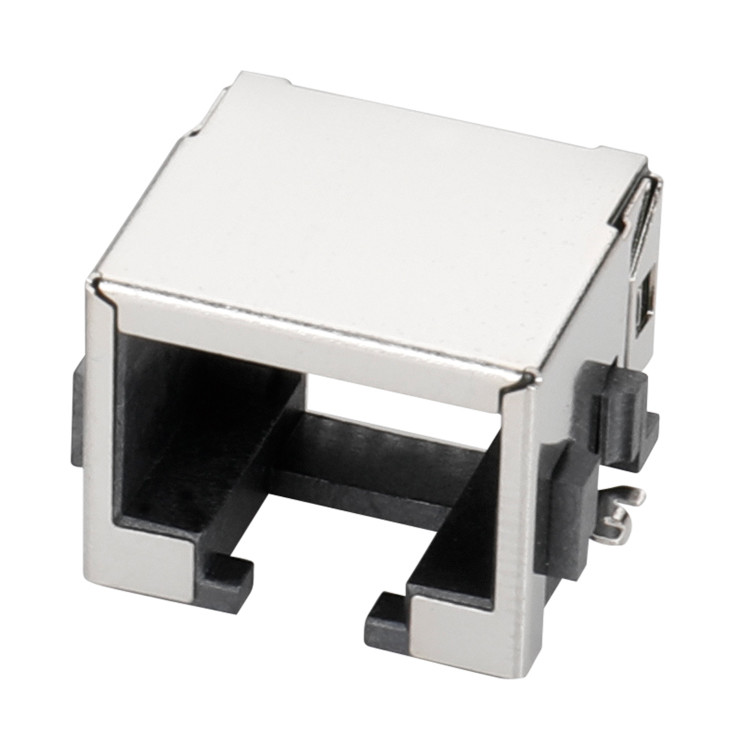

Shielded 8P8C SMT 13.15L RJ45 Jack With Cooper Shell

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: ROHS,SGS
Model Number: 1060-208009
Minimum Order Quantity: 500
Price: negotiate a price
Packaging Details: Carton packing
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 pcs/week
Detail Information
Application: PCB,Power Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
Color: Black Insulation Resistance: 1000 Megohms Minimum
Connector Type: RJ45 Material: Phospher Bronze
Pin: 8P8C Contact Resistance: 30m Ω Max
Shielding: Shielded Durability: 800 Mating Cycles Min
High Light:

13.15L RJ45 Jack

,

8P8C RJ45 Jack

,

8P8C shielded rj45 connector


Product Description

Hot sale connector rj45 connector SMT 8 pin 13.15L



Product Description

Items Description RJ sinking board SMT-8.65 all inclusive SMT
Shell copper shell DIP foot
Model No. RJ 45 8 pin connector 13.15L
Material Cooper shell
Package Tape reel+ carton
Color Black
Temperature range -40 ℃- 80
Interface RJ45 sinkng board
Life 800 mating cycles min





NOTE:

MATERIAL SPECIFICATION:
1.HOUSING:HIGH QUALITY COOPER SHELL, C268
2.CONTACTS:COPPER ALLOY


PLATING INSTRUCTIONS:
1.TERMINAL :CONTACT AREA GOLD PLATED G.F
2.SOLDER AREA TINNED
3.SHELL NICKEL PLATED



ELECTRICAL PERFORMANDE:
1.CURRENT RATING :1.5A
2.INSULATION RESISTANCE:500MΩ MIN
3.CONTACT RESISTANCE:40mΩ Max
4.LIFE:800 Mating Cycles Min



Drawing

Shielded 8P8C SMT 13.15L RJ45 Jack With Cooper Shell 0
