| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | PH52E88-21210XX |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable price |
| Packaging Details: | Our box size: L*W*H =315*240*400mm |
| Delivery Time: | 3-30 work days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 10000 PCS/Week |
| Product Name: | RJ45 Connector | Shielding: | Shielded |
|---|---|---|---|
| Housing: | GLASS FILLED POLYESTER UL94V-0 | CONTACT: | PHOSPHOR BRONZE WITH GOLD PLATING OVER NICKEL |
| Rated Voltage: | 125VAC | Contact Resistance: | 30 MΩmax |
| Insulation Resistance: | 500 MΩmin | Certification: | ROHS |
| High Light: | smt rj45 connector,rj45 pcb connector,125VAC Magnetic RJ45 Jack |
||
| RJ45/RJ11 Connector specifications: | |
|
Application - LAN |
ETHERNET |
|
Gender |
Jack |
|
No. of Ports |
1X1, 1X2, 1X3, 1X4, 1X6, 2X2, 2X4... |
|
Number of position |
4, 6, 8, 10 |
|
Number of contacts |
4, 6,8 or 10 |
|
Housing |
ABS,PBT,PA66,PA46 (UL94-V0) |
|
Contact Material |
phosphor bronze gold plating over nickel |
|
Shielding housing |
copper alloy, nickel/tin plating |
|
PCB Terminal |
Phosphor Bronze, Tail-Tin over Nickel |
|
Case |
Phenolic, UL94V-0 Black |
|
POE |
Option |
|
Shield EMI Tabs |
Option |
|
LED |
Option |
|
Contact Mating Area Plating |
Gold 3-50 u'', 80u over nickel |
|
PCB Mount Angle |
Side entry or Top entry |
|
Insertion Force |
2.2KG.F max |
|
Retention Strength |
7.7KG.F min between jack and plug |
|
Durability |
750 mating cycles min |
|
Working Temperature |
0-70°C |
|
Storage Temperature |
-40-85°C |
|
RoHS Compliant |
Yes |
|
RJ45 connector Application: |
||
|
Laptop |
Telephone |
Television |
|
Hub |
Router |
Copier |
|
Printer |
Broadband Switche |
Telecom box ATM Machine |
|
Server |
Fitness Equipment |
Home Security |
|
LCD and TV panel |
Point of Sales Terminal |
Security System |
|
Set-Top Box |
Vending Machines |
Video DVD product |
|
Surge protector |
|
|

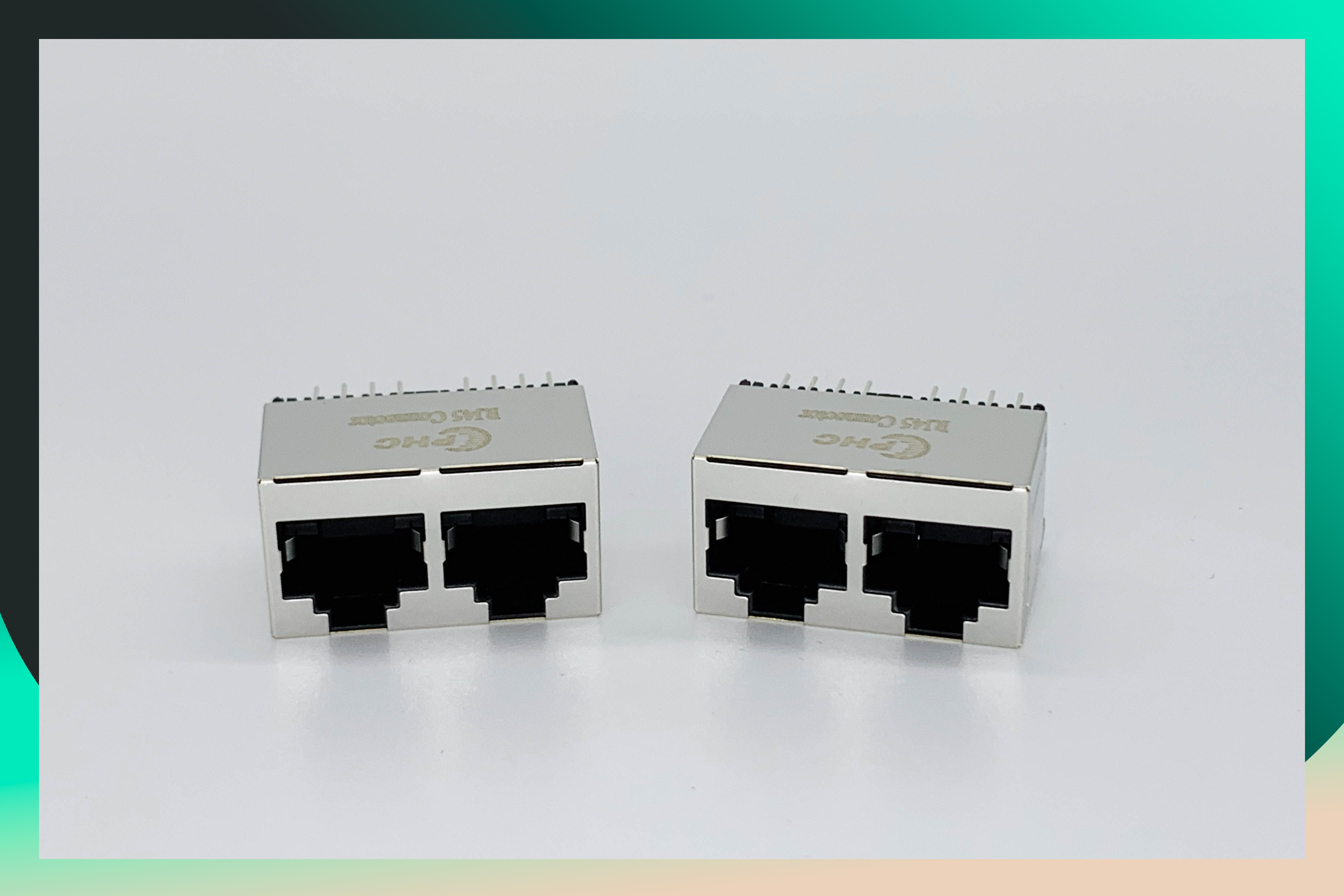

RJ45/RJ11 connector
1.Penghui's broad range of Modular Jacks and Plugs, with more than 1000 different parts, provides versatile solutions to
meet today's increasing demand for information flow with greater bandwidth requirements.
2. The extensive breadth of products offer exceptional performance and reliability for voice, data, and high-speed networking
applications and is the ideal solution for consumer, office, medical, commercial and industrial applications.
3. Penghui offers jacks in a variety of styles and configurations, including right-angle, top entry, bottom entry, through-hole,
and SMT, shielded and unshielded using gold or high durability palladium-nickel plating.
Modular jacks with integrated magnetic that support Power-over-Ethernet (PoE) and specialized, sealed jacks and plugs
for harsh environments help to ensure that Dosin can meet the market's diverse design needs.
Quality: Quality is the most important thing in our company. We use only the best quality(original) components to ensure
the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail.
Please contact us if you need our detail warranty term.
Payment: We accept payment via TT, Western Union, Paypal and so on.
Notes:
Free-sample is available!
If you need any parts, please kindly send us your drawings or sample for quotation.
