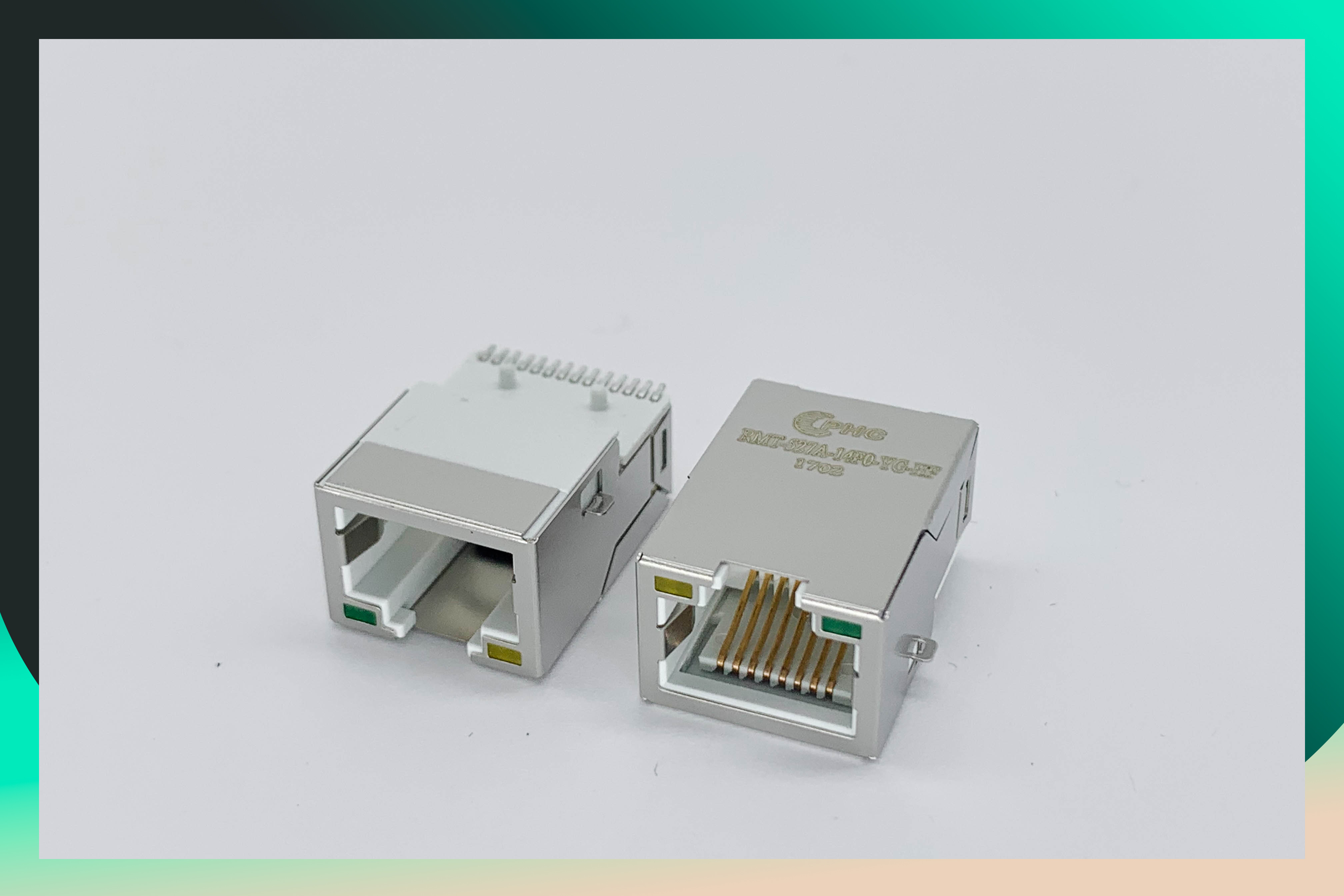

21.6mm 10P10C Magnetic RJ45 Jack Single Port Ethernet Stacked With Shield
Specifications
Part Number |
Manufacturer Part Number |
Manufacturer | Description |
RMT-462A-12F6-GY Rev.A0 | RMT-462A-12F6-GY Rev.A0 | PHCONN | 21.6mm 10P10C Magnetic RJ45 Jack Single Port Ethernet Stacked With Shield |
Series | Connector Type | Applications | Mounting Type |
Connectors, Interconnects | PHC RJ45 Female | 10/100 /1000 Mbps | Insert Plate |
Orientation | Termination | LED Color | Shielding |
90° Angle (Right) Side enter | Solder | G/Y | Shielded |
Electrical:
1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression
3. 350uH minimum OCL with 8mA bias current
4. Current rating 1.5 amps
5. Voltage rating 125vac
6. Insulation resistance 500 MΩmin
7. Contact resistance 30 MΩmax
8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min
9. Insertion loss: -1.2dB maximum @100KHz-100MHz
10. Return loss: -18dB minimum @1MHz-30MHz
11. 14dB minimum @30MHz-60MHz
12. 12dB minimum @60MHz-80MHz
13. 10dB minimum @80MHz-100MHz
14. Common mode rejection: -30dB minimum @1MHz-100MHz
15. Cross talk: -30dB minimum @1MHz-100MHz
Operating and storage temperatures:
1. Operating temperatures: -40 to 85℃
2. Storage temperatures: -40 to 85℃
Application:
1. Networking products: NIC, HUB, switch, router, bridge, work
2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box
Drawing
