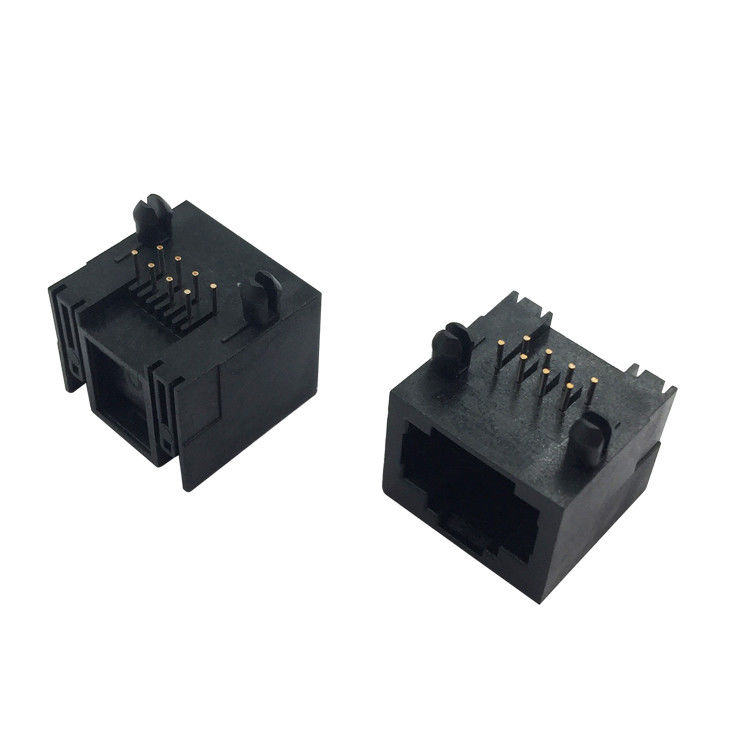

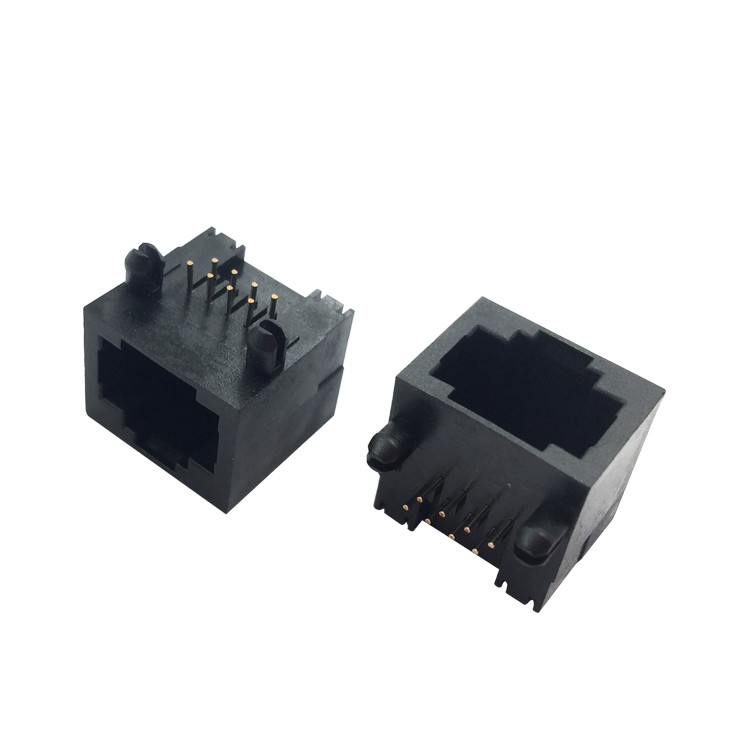

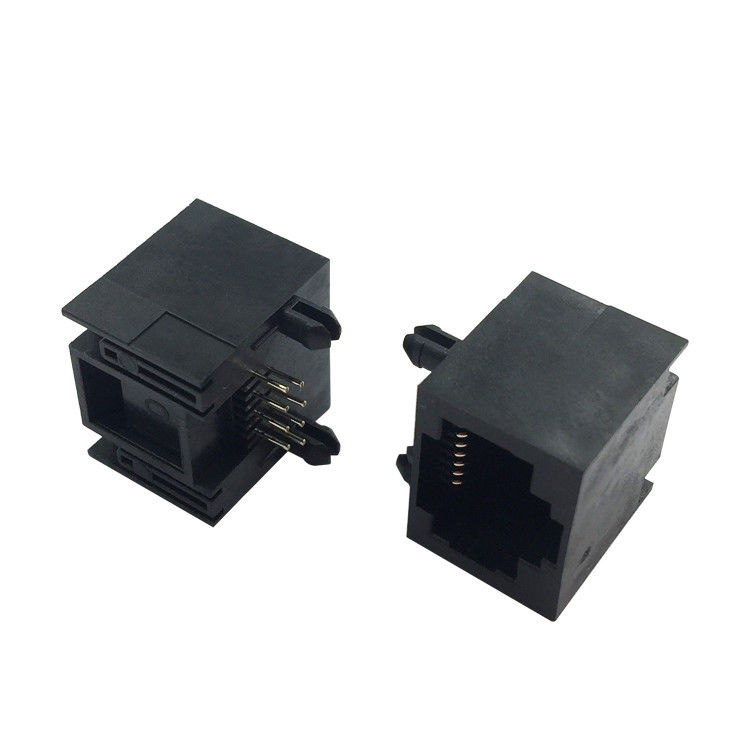

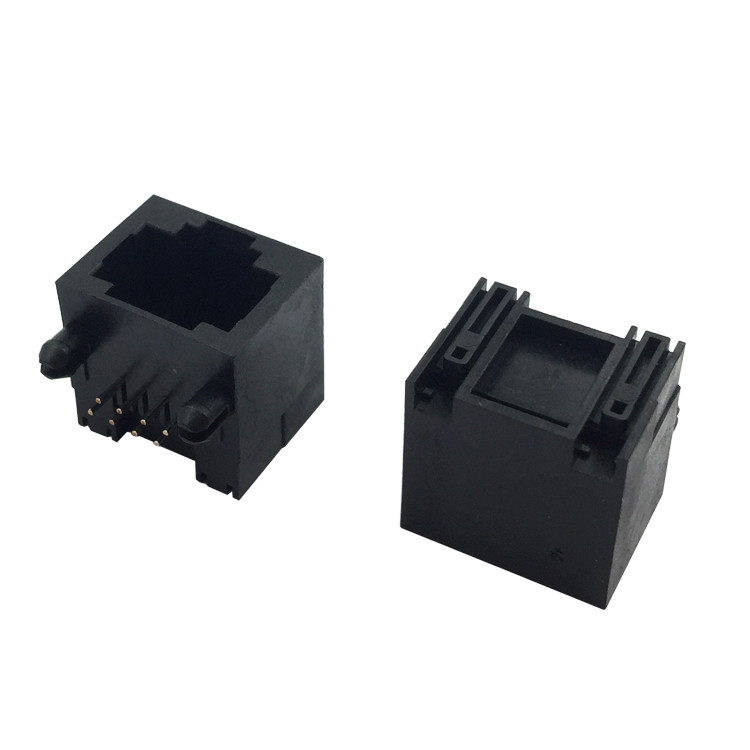

Thermoplastic Housing Modular 8P8C RJ45 Female Connector For PCB

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: 1051-208003
Minimum Order Quantity: 500 PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000000PCS/Week
Detail Information
Gender: Modular Jack Application: PCB,Audio & Video,networking,Telecom,Signal
Color: Black Material: Phosphor Bronze
Insulation Resistance: 1000 Megohms Min @ 500 Vdc Housing: Thermoplastic Plastics
Contact Resistance: 50 Milli Ohms Sample: Welcome Ask Sample For Testing
High Light:

Modular RJ45 Female Connector

,

Thermoplastic Housing RJ45 Female Connector

,

8P8C Modular RJ45 Connector


Product Description

Plastic Right angle RJ45 8P 8C Jack Connector Female for PCB Computer Internet Network PCB Jack Socket Black



Product Information



Categories Connectors, Interconnects
Modular Connectors
Application-LAN ETHERNET(non-POE)
Connector Type RJ45
Number of Positions/Contacts 8p8c
Number of Ports 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.537" (13.65mm)
LED Color Green - Yellow
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Packaging Tray
Operating Temperature 0°C ~ 70°C
Contact Material Plating Thickness Gold 6.00µin/15.00µin/30.00µin/50.00µin
Shield Material Brass
Housing Material Thermoplastic
RoHS Compliant YES-RoHS-5 WIth Lead in Solder Exemption




Drawing

Thermoplastic Housing Modular 8P8C RJ45 Female Connector For PCB 0



Company Information



PH Electronic SFPRJ45 Connector and FPC Connector 10+ years of Manufacturing Experience.
Factory We have over 1000 workers.
The area of Dongguan is 80,000 square meters.

PH Electronics have owned 2 factories in Guangdong andHubei.

Quality Lean production management.

100% Tested (Not Just Batch Tested).


Quality Guarantee:1 Year

Certification ISO 9001:2008;ISO 14001:2016

ROHS CE FCC Compliance.


Active Environmental Policy

Have R&D dept OEM Service Offered, Design Service Offered.

Engineer Can Design Products As You Need, Developer Tooling As Customer Require.

Price And Service Than PULSE TE HALO BEL Amphenol MOLXE And HANRUN More Competitive Price And Delivery.



Why Choose Us


What can we do for you?

1. We can offer free samples.

2. Various operation force, height, and color for your choice.

3. large quantity discount





Why us?



1. Excellent quality with competitive price

We are a manufacturer making RJ45 for more than 15 years.

2. Quality guaranty

Check quality one by one before shipping, We have a good quality-control team and

precision testing machine to control the quality seriously

3. Customize acceptable

according to your design to produce a quality product.



Production&Testing

PHC have more than 30 units automation equipment to the product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
