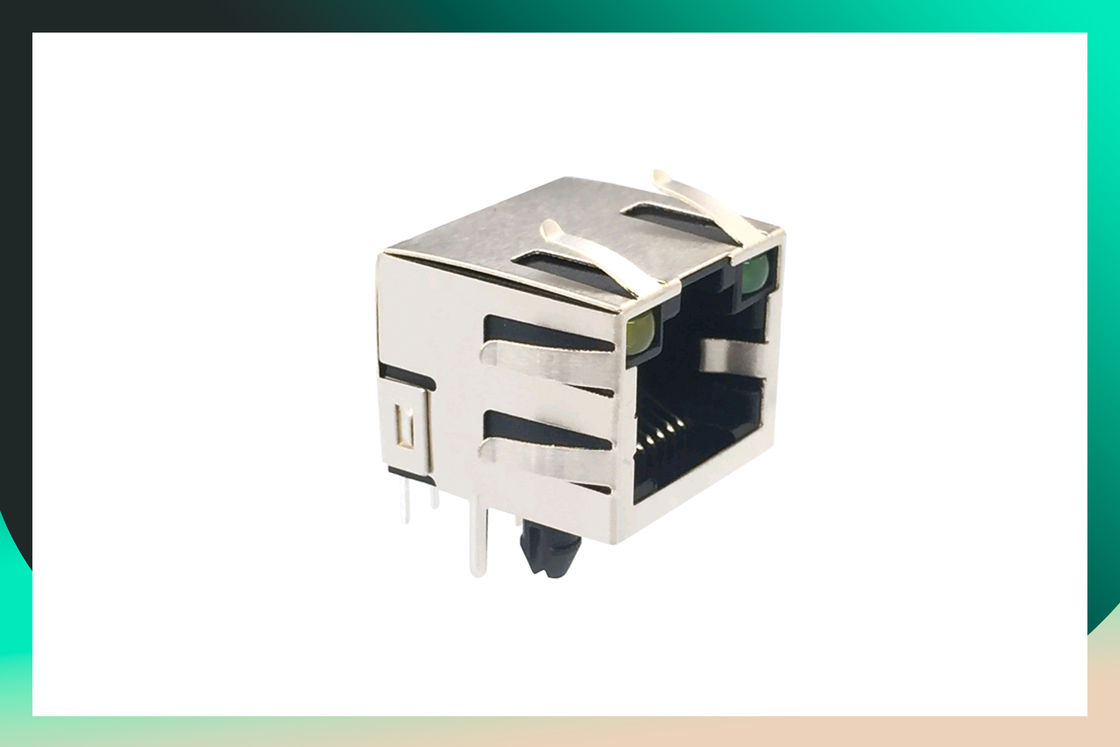

90 Degree Single Port Shielded RJ45 Ethernet Connector With LEDs Network Port Socket

Basic Information
Place of Origin: CHINA
Brand Name: PHC
Certification: ISO:9001;ISO:14001
Model Number: 1051-208004
Minimum Order Quantity: 5000 PCS
Price: $0.50-$1.00
Packaging Details: 10 pcs in 1 tray
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, T/T
Supply Ability: 5,000,000 PCS / Month
Contact Now
Detail Information
Place Of Origin: DONGGUAN, China (Mainland) Model Number: 1051-208004
Application: PCB Number Of Ports: 1 Port
Contact Plating: Gold Certificate: IS09001/ROHS/CE/FCC
Termination: Solder Type: RJ45
Gender: Female Shielding: Shielded, EMI Finger
Tab Direction: UP LED Color: Green - Yellow
Orientation: 90° Angle (Right)

Product Description

RJ45 Modular Jack with LEDs(YG),Offset Jack Shielded Mini RJ45 Connector for panel Mount





MECHANICAL:



1. HOUSING MATERIAL:glass-filled polyester(UL94V-0).

2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).

3. PLATING: gold plating over nickel.

4. DURABILITY:750 cycles min.

5. PCB RETENTION PRE-SOLDER:1 LB min.

6. PCB RETENTION POST-SOLDER:10 LB min.



Product Information



Categories Connectors, Interconnects
Modular Connectors
Application-LAN ETHERNET(non-POE)
Connector Type RJ45
Number of Positions/Contacts 8p8c
Number of Ports 1x1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.537" (13.65mm)
LED Color Green - Yellow
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Packaging Tray
Operating Temperature 0°C ~ 70°C
Contact Material Plating Thickness Gold 6.00µin/15.00µin/30.00µin/50.00µin
Shield Material Brass
Housing Material Thermoplastic
RoHS Compliant YES-RoHS-5 WIth Lead in Solder Exemption



ELECTRICAL:



1. VOLTAGE RATING:125 VAC RMS.

2. CURRENT RATING:1.5 AMP.

3. CONTACT RESISTANCE:50 milliohms max.

4. INSULATION RESISTANCE:500 megohms min @ 500V DC.

5. DIELECTRIC WITHSTANDING

RESISTANCE:1000V AC RMS 50Hz. 1min.





ENVIRONMENTAL:



1. STORAGE:-40℃ TO +85℃.

2. OPERATION:0℃ TO 70℃

3. WAVE SOLDER TEMPERATURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.





Drawing:



90 Degree Single Port Shielded RJ45 Ethernet Connector With LEDs Network Port Socket



Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.




Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.



Case.1 Stock 25%
Case.2 3-4 Weeks 70%
Case.3 5-6 Weeks 5%



Service

PHC Offer good pre-sales & after-sales service &Strong technical support

  • New Project: Strong technical and ideal support your new design
  • Existing projects: Try to help customer to save the cost to offer the good quality product and save
  • time.
  • Free Samples:3-5 PCS of each part number
  • Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
  • Customer complaint:24-48 hours reply 8D report
  • Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
  • kits if customers are not satisfied)
Why Choose Us


What can we do for you?

1. We can offer free samples.

2.Various operation force, height, and color for your choice.

3. large quantity discount





Why us?



1. Excellent quality with competitive price

We are a manufacturer making RJ45 for more than 15 years.

2.Quality guaranty

Check quality one by one before shipping, We have a good quality-control team and

precision testing machine to control the quality seriously

3. Customize acceptable

according to your design to produce a quality product.
