LED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact Plating

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: ISO:9001;ISO:14001
Model Number: 1051-208004
Minimum Order Quantity: 5000 PCS
Price: $0.50-$1.00
Packaging Details: 10 pcs in 1 tray
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, T/T
Supply Ability: 5,000,000 PCS / Month
Contact Now
Detail Information
Place Of Origin: DONGGUAN, China (Mainland) Model Number: 1051-208004
Application: PCB Number Of Ports: 2 Port
Contact Plating: Gold Certificate: IS09001/ROHS/CE/FCC
Termination: Solder Type: RJ45
Gender: Female Shielding: Shielded, EMI Finger
Tab Direction: UP LED Color: Green - Yellow
Orientation: 90° Angle (Right)

Product Description

LED 90 degree 1x2 ports shielded RJ45 ethernet connector



ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.

2. CURRENT RATING:1.5 AMP.

3. CONTACT RESISTANCE:50 milliohms max.

4. INSULATION RESISTANCE:500 megohms min @ 500V DC.

5. DIELECTRIC WITHSTANDING

RESISTANCE:1000V AC RMS 50Hz. 1min.


Product Dsiplay

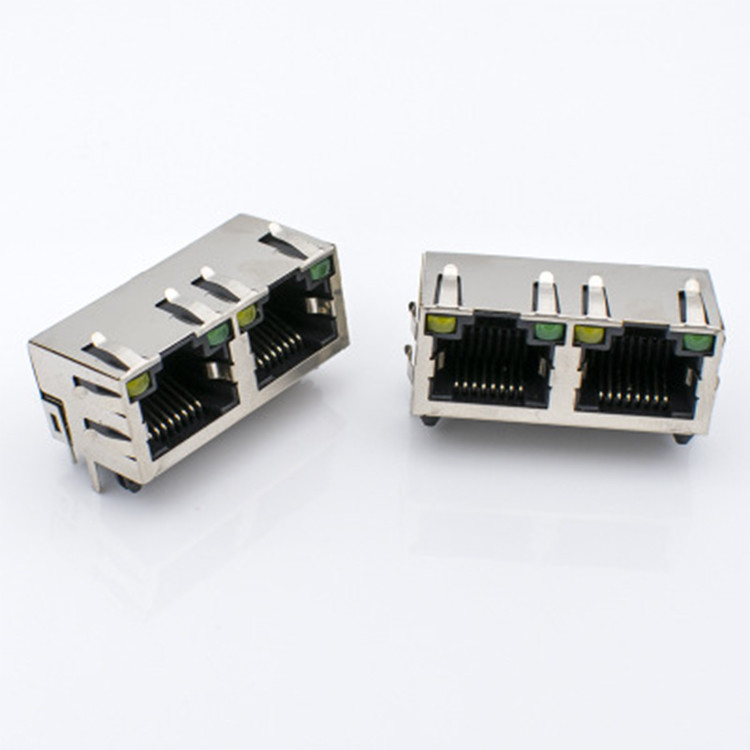

LED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact PlatingLED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact PlatingLED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact PlatingLED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact Plating
Product Information




LED Color

Green - Yellow

Shielding

Shielded, EMI Finger

Features

Board Guide

Tab Direction

Up

Contact Material

Phosphor Bronze

Packaging

Tray

Operating Temperature

0°C ~ 70°C

Contact Material Plating Thickness

Gold 6.00µin/15.00µin/30.00µin/50.00µin

Shield Material

Brass

Housing Material

Thermoplastic

RoHS Compliant

YES-RoHS-5 WIth Lead in Solder Exemption






MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).

2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).

3. PLATING:glod plating over nickel.

4. DURRABILITY:750 cycles min.

5. PCB RETENTION PRE-SOLDER:1 LB min.

6. PCB RETENTION POST-SOLDER:10 LB min.



ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.

2. OPERATION:0℃ TO 70℃

3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.



Drawing:

LED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact Plating





Type of Shipping

LED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact Plating
Connect Us
LED 90 Degree 1x2 Ports Shielded RJ45 Ethernet Connector Gold Contact Plating

Why Choose Us



What can we do for you?

1. We can offer free samples.

2.Various operation force, height, and color for your choice.

3. large quantity discount



Why us?

1. Excellent quality with competitive price

We are manufacturer making RJ45 more than 15 years.

2.Quality guaranty

Check quality one by one before shipping, We have good quality-control team and

precision testing machine to control the quality seriously

3. Customize acceptabl

according your design to produce quality product.
