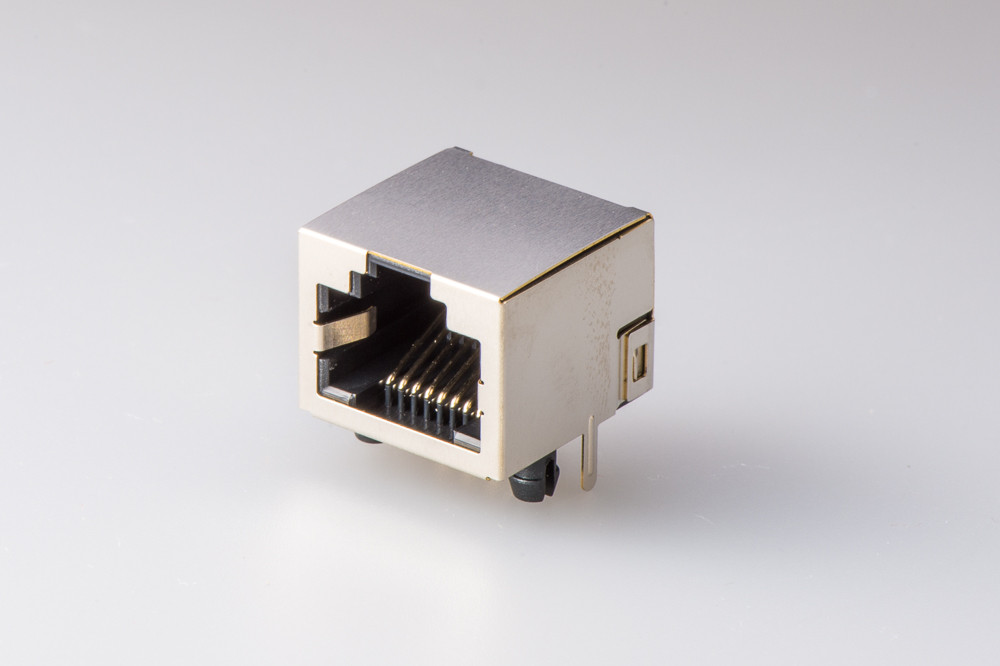

Modular Rj45 jack tap up 8p8c Single port With Shielded And Without Led

Basic Information
Place of Origin: GuangDong
Brand Name: PHC
Certification: IS09001-2008
Model Number: 1051-208011
Minimum Order Quantity: 500pcs
Price: 0.15~0.5 USD/PCS
Packaging Details: 70 pcs in 1 tray , 36 tray in 1 carton
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P/PayPal
Supply Ability: 5,000,000pcs/Month
Contact Now
Detail Information
PN.: 1051-208011 Shield: Brass Alloy
Plastic: PBT With 15% - 30% Glass Terminal: Phosphorus Copper
Durability: At Least 750 Cycles Repeated When A Rate Of 10 Cycles/min Application: IP Camer , DVR , TV , SET BOX , Etc
Mounting Type: Thru-hole Series: Ethernet Connector
90° Angle (Right): Side Enter 90 Degree Gender: Female

Product Description

Specifications



90 degree side enter single Ethernet RJ45 jack with shiled without Led





Eceatrical


1. voltage Rating :125 val
2. Insnlation Resiitance : 500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60 / hz1min


Mechanical

1. Operating :750  cycles min


Materical


1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v - 0)
2. Contact Wire : Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating : 3u inch6u inch150u inch30u inch50u inch


Environmental


1. Working Temeperature :-20℃to 75℃
2. Storage Temeperature :-45℃to 85℃


Mates with modular plug conforming to FCC part 68 , subpart F .





Drawing



Modular Rj45 jack tap up 8p8c Single port With Shielded And Without Led





Why Choose PengHui





Quality :



World’s Leader supplier of Integrated RJ45 Connector and PCB connector



Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .



1.  Manufactured under strict controls .

2.  ISO 9001 : 2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM  for PULSE

7. Active Environmental policy

8. Every module  tested 3times  ( not just batch tested )





Unit Price



Charge only 35% ~ 60% of Pulse ,Wurth(Midcom) , Bothhand Belfuse, Tyco, Halo,....Etc



Except the plating ,All the step are doing by ourself. So we can control the cost

PHC have more than 30 units automation equipments to product as possible

PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong



Design&Technical strength



We have many more than 20years experience in connector industry engineer can support your new project. Design a new tooling time:30-45 workdays





PHC Patented product in China



Modular Rj45 jack tap up 8p8c Single port With Shielded And Without Led





Lead Time



With large Popularity of 450 Workers distributed in 3 subsidiary corporations , PHC can offer the fastest Lead time , and the particular case is according to the situation.



Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%





Service



PHC Offer good pre-sales & after-sales service & Strong technical support



1. New Project : Strong technical and ideal support your new design

2. Existing projects : Try to help customer to save the cost to offer the good quality product and   save time.

3. Free Samples : 3-5 PCS of each part number

4. Shipping Fee : We can get 80% off from DHL / UPS / TNT / FedEx , keeping safe and fast .

5. Customer complaint : 24-48 hours reply 8D report

6. Warranty : 24 months ( Merchandise are promised to be promptly returned , replacement , or repair kits if customers are not satisfied)





Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
