6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHC
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1053-206001
Minimum Order Quantity: 500 PCS
Price: USD 1.6 ~ 3.0 PCS
Packaging Details: 120 pcs in 1 tray,20 tray in 1 carton
Delivery Time: 3-15 work days
Payment Terms: T/T, L/C, D/A, D/P, PAYPAL
Supply Ability: 2,000,000pcs/Month
Contact Now
Detail Information
Port: Single Shield Material: Brass Alloy
Plastic: PBT Terminal: Phosphor Copper
Main Products: RJ45, Side Entry Low Profile Rj45 Jack Withstanding Voltage: AC 1500V RMS 50Hz Or 60 Hz 1 Min
Plastic Color: Black PCB: Insert Plate

Product Description

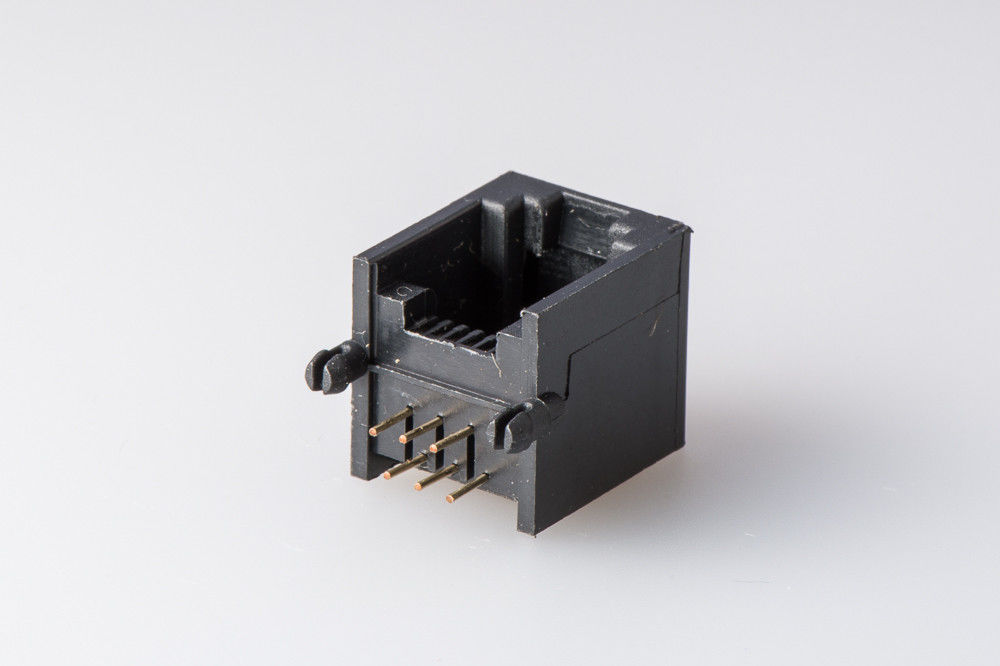

6P6C 90 Degree RJ45 Modular Jack Full Plastic Single Port Female


Spectifications



Electrical



1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1000V RMS 50Hz or 60Hz 1 min




Mechanical



1.Insertion Force

2 CONTACTS....350g

4 CONTACTS….500g

6 CONTACTS….750g

8 CONTACTS….900g

10 CONTACTS....1050g

2.Retention Strength

7.7KG.F min between jack and plug

3.Durability

750 mating cycles min



Material



1.Housing

ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2.Contact Wire

Diameter 0.45mm phosphor bronze gold plating over nickel  0.35mm

thickness phosphor bronze alloy selective gold plating over nickel

3.Shield

0.20~0.25mm thickness brass with tin plated

4.Gold Plating

1u inch,3u inch,6u inch,15u inch,30u inch,50u inch

6.RoHS peak wave

 solder

RoHS peak wave solder temperature rating 240°C±5°C





Drawing



6P6C 90 Degree RJ45 Modular Jack Full Plastic Single Port Female



6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female





Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .All the step are

 doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM  for PULSE
7. Active Environmental policy
8. Every module  tested 3times  (not just batch tested)





Unit Price

Charge only 35~60% of Pulse ,Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong (HQ)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.


6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female


                                                   Storeroom Of Mold




Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

8. kits if customers are not satisfied)




Main Customers


6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female               6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female         6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female

 6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female              6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female               6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female
 6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female      6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female       6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female


6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female             6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female





 Munich exhibition in November 2014





6P6C 90 Degree RJ11 RJ45 Modular Jack , Rj45 Data Jack Full Plastic Single Port Female




Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
