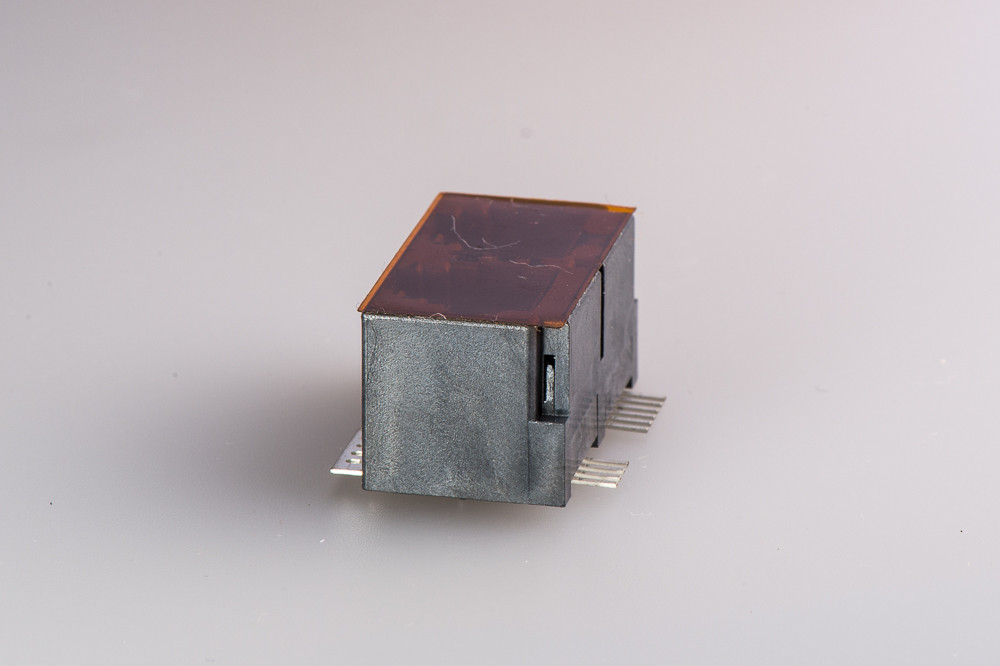

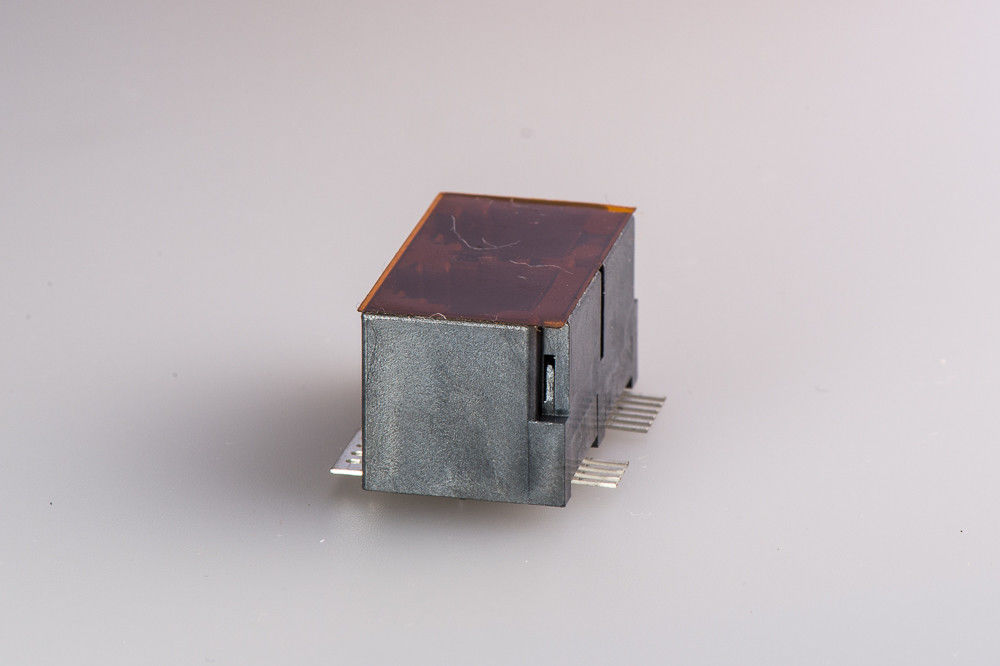

Female 4P4C + 6P6C SMD RJ45 Connector Double Port Top Enter Modular Jack

Female 4P4C + 6P6C SMD RJ45 Connector Double Port Top Enter Modular Jack

Female  4P4C + 6P6C SMD RJ45 Connector Double Port  Top Enter Modular Jack

Product Details:

Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHC
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: 1052-206012

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: USD 0.15 ~ 0.5 PCS
Packaging Details: 70 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detailed Product Description
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: PCB
Patented NO: 201520126620.x Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket
Project Application: Networking Solutions OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Color: Black, Yellow, Bule Option Type: SMD Connector



SMD RJ45 Female Connector 4P4C + 6P6C Double Port  Top Enter Modular Jack





Spectifications



  Series

 SMD RJ45 Female Jack
  Connector Type

 SMD RJ45

  Mounting Type

  Thru-Hole

  Orientation

  Top Enter

  Termination

  Solder

  LED Color

  Without

  Shielding

 No Shield





NOTES:



ELECTRICAL:


1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
    RESISTANCE:1000V AC RMS 50Hz. 1min.


MECHNICAL:


1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.


ENVIRONMENTAL:


1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)


MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.



Drawing



SMD RJ45 Female Connector 4P4C + 6P6C Double Port  Top Enter Modular Jack

( PHC )



Female  4P4C + 6P6C SMD RJ45 Connector Double Port  Top Enter Modular Jack





Why Choose PengHui



Quality :



World’s Leader supplier of Integrated RJ45 Connector and PCB connector



Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .



  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)



Unit Price


Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent





Service

PHC Offer good pre-sales & after-sales service &Strong technical support



1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.



3. Free Samples:3-5 PCS of each part number.

4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

5. Customer complaint:24-48 hours reply 8D report.

6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if

customers are not satisfied)





Design &Technical strength


We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays

PHC Patented product in China



Female  4P4C + 6P6C SMD RJ45 Connector Double Port  Top Enter Modular Jack







Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

                                                                                                  -------------  PHC  Sales & Support Team
