Home ProductsRJ45 With Transformer

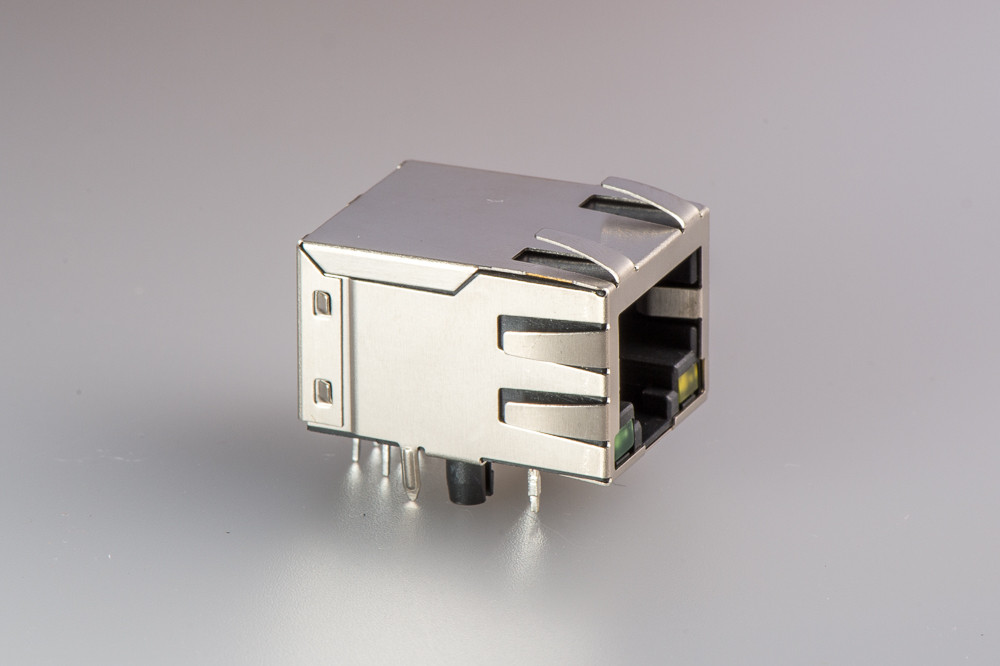

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack

Product Details:

Place of Origin: GuangDong
Brand Name: PHC
Certification: ISO9001-2008 , RoHs , UL , SGS
Model Number: RMS-063C-08F6-GY-1

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: USD1.0 - 1.5 PCS
Packaging Details: 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time: 24-30 work days
Payment Terms: D/A, D/P, L/C, T/T,paypal
Supply Ability: 1000,000pcs/Month
Detailed Product Description
Shield: Brass Alloy Terminal: Phosphor Copper
Soldering Temperature: 255 ℃ 5 Seconds LED Color: Yellow, Gree, Red, Blue, Double Color Option
Mounting Type: Insert Plate 10 / 100 / 1000 MB Orientation: 90 Degree, Side Enter
Pin Number: 8 Pin Port: Single Port


Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack

Specifications


Part Number

Manufacturer
Part Number

Manufacturer

Description

RMS-063C-08F6-GY-1

RMS-063C-08F6-GY-1

PHC

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female

10/100 /1000Mbps

insert plating



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

G/Y

Shielded




Electrical

1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression
3. 350uH minimum OCL with 8mA bias current

Current rating1.5A
Voltage rating125V AC
Insulation resistance500MΩ min
Contact resistance30MΩ max
Withstanding voltageAC 1500V RMS 50Hz or 60Hz 1 min
Insertion loss-1.2dB Maximum at 100kHz-100MHz
Return loss-18dB minimum at 1MHz-30MHz
 -14dB minimum at 30MHz-60MHz
 -12dB minimum at 60MHz-80MHz
Common mode rejection-30dB minimum at 1MHz-100MHz
Cross talk-30dB minimum at 1MHz-100MHz
Mechanical
Insertion force2 contacts 350g
4 contacts 500g
6 contacts 750g
8 contacts 900g
10 contacts 1050g
Retention strength7.7KG.F min between jack and plug
Durability800 mating cycles min
Material
HousingABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
Contact wireDiameter 0.45mm phosphor bronze gold plating over nickel  0.35mm thickness phosphor bronze alloy selective gold plating over nickel
Shield0.20-0.25mm thickness brass with tin plated
Gold plating3u",  6u", 15u", 30u",  50u"
LED specificationsStandard LED colorLED wavelengthForward      (V max)Typical  (V TYP)Luminous intensity
Green560-580 nm2.5V2.1-2.2V9-25 MCD
Yellow580-610 nm2.5V2.1-2.2V9-30 MCD
Orange580-610 nm2.5V2.1-2.2V50-100 MCD
  1. LED intensity/wavelength measured with photo research PR-650 colormeter
  2. With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
RoHS peak wave solderRoHS-5 peak wave solder temperature rating 235 ±5°C
 RoHS-6 peak wave solder temperature rating 260 ±5°C
Operating and storage temperature
Operating temperatures-40 to 85°C
Storage temperatures-40 to 85°C
Applications
Networking productsNIC, hub, switch, router, bridge, work
StationPC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box



Drawing

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack
(PHC)

Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack


Why Choose PengHui Quality

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the step are doing by ourself. So we can control the quality.

1) Manufactured under strict controls.
2) ISO 9001:2008
3) UL Certification
4) Reach Cetitifaction
5) RoHS compliance
6) OEM  for PULSE
7) Active Environmental policy
8) Every module  tested 3times  (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong (PHC)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays


Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.


Vertical RJ45 With Transformer 8 Pin Single Port With Shield And LED Female Jack

                                              Injection Moulding
