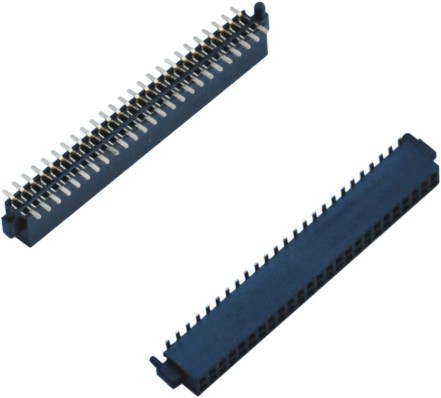

Female Headers 1.27mm Pitch Double Row 50 Pins SMT LCP Plastic Black Gold-plated

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHC
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: Female Headers
Minimum Order Quantity: 1000 PCS
Price: USD 0.2 ~ 0.5 PCS
Packaging Details: 300 pcs in 1 tray,5 tray (1500pcs)in carton; Tray is φ330*62mm;Carton is 34.5*34.5*32.5cm.
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Contact Now
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: PCB
Gender: Female Header Pins: 8-60PINS
Pitch: 1.27 Pitch OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Mounting Type: SMT Row: Single Or Dual Rows

Product Description


Female Headers 1.27mm Pitch Double Row 50 Pins SMT  LCP Plastic Black Gold-plated


Specifications



1.Characteristics: 1)1.27 PITCH 2 ROW 50PINS SMT female headers
  2)Available in SMD

2. Operation/Application: 1)PCB assembly
  2)Board to board
  3)Pos machine, TV,
  4)Hub, Router, Switches

3. Electrical Characteristics:
1) Shielded Without



Material:

1. Housing Material: Glass Filled Polyester(UL94V-0),NYLON, LCP
2. Contact Material: Phosphor Bronze
3. Plating: Contact Area-Selectine Gold Plating.

4. Cap: Glass Filled Polyester(UL94V-0),NYLON, LCP


Electrical:

Current Rating 1 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 1000MΩMin
Withstanding Resistance 500VAC
Contact Resistance 20mΩMax



Environmental:

1. Storage Temperature -40°C~105°C Relative Humidity <80%.
2. Opration Temperature -40°C~+105°C

Lead-free process,compliant RoHS




Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .


  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)



Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if

customers are not satisfied)



Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.


Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%


Design &Technical strength

We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays




Female Headers 1.27mm Pitch Double Row 50 Pins SMT  LCP Plastic Black Gold-plated



                                                        A set of mould



Punching Workshop



Female Headers 1.27mm Pitch Double Row 50 Pins SMT  LCP Plastic Black Gold-plated




Wish To Be Your Best Supplier and Supporter In Your connector Solutions
