RJ45 Female Connertor Side Enter Low Profile RJ45 Jack With Shielded And HF Production

Basic Information
Place of Origin: China
Brand Name: PHC
Certification: ISO9001:2008,,SGS,UL,CE,REACH
Model Number: 1060-208102HF
Minimum Order Quantity: 500pcs
Price: USD 1.0 pcs
Delivery Time: About 2 Weeks
Supply Ability: 100000/M
Contact Now
Detail Information
Port: Single Port House: HF
Color: Black Gold Plating: 1u ,3u 6u 15u 30u 50u
Operating Temperature: -40℃to 85℃ Storage Temperature: -40℃to 85℃

Product Description



RJ45 Female Connertor Side Enter Low Profile RJ45 Jack With Shielded And HF Production





Eceatrical


1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min


Mechanical

1. Operating:750 cycles min


Materical


1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch


Environmental


1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃


Mates with modular plug conforming to FCC part 68,subpart F.

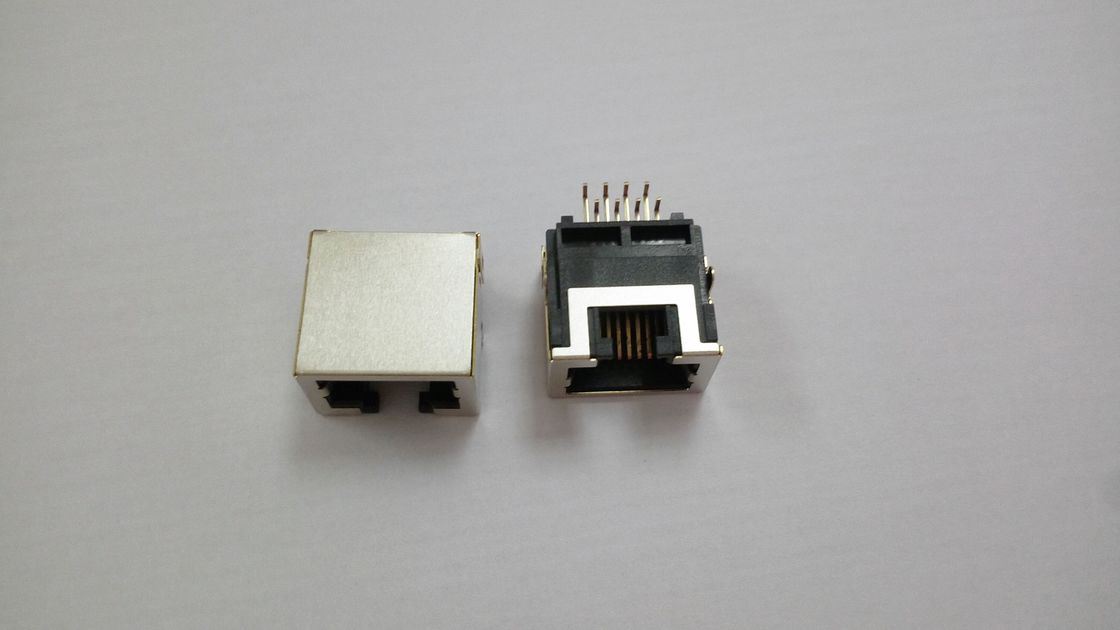

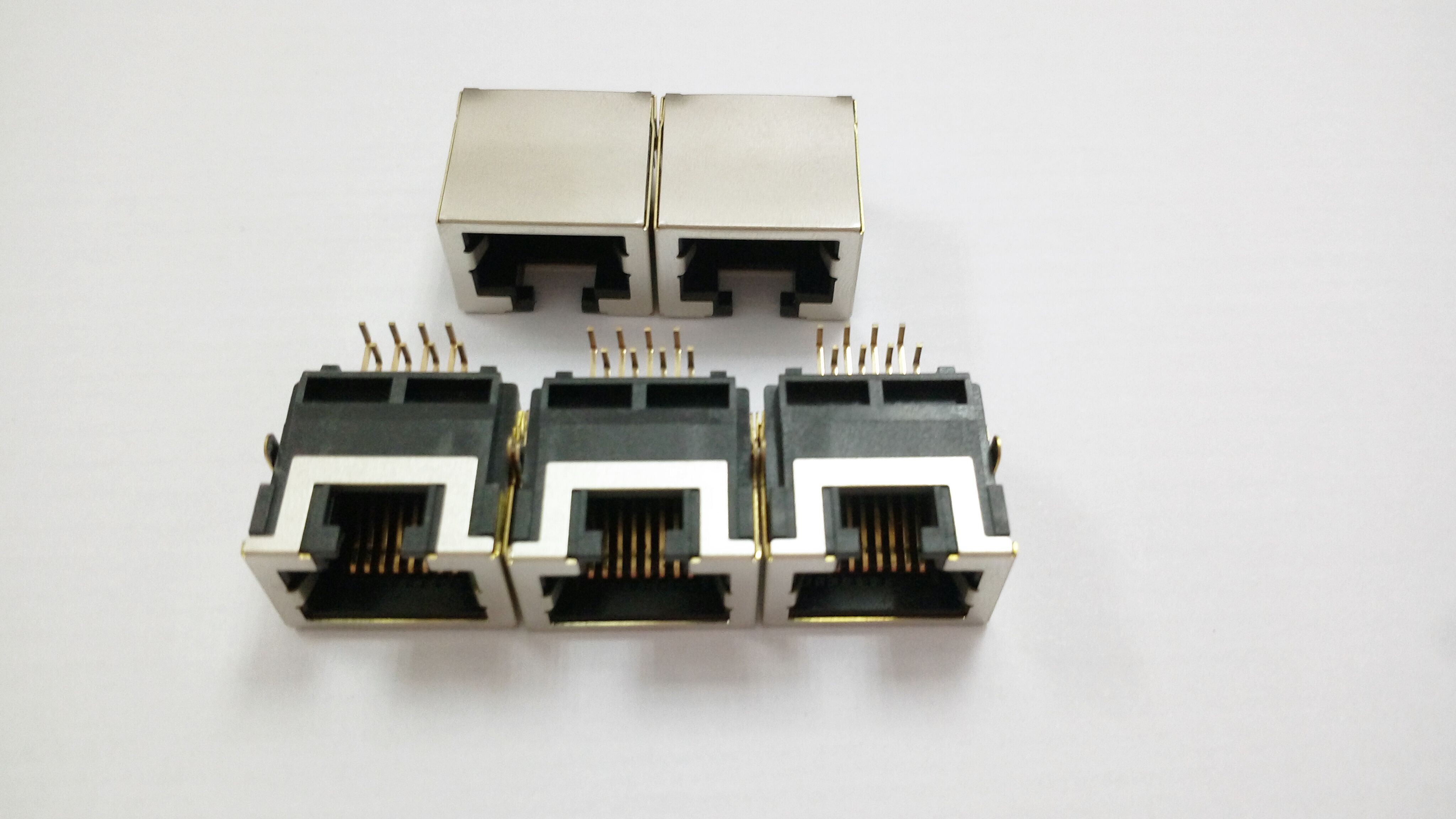

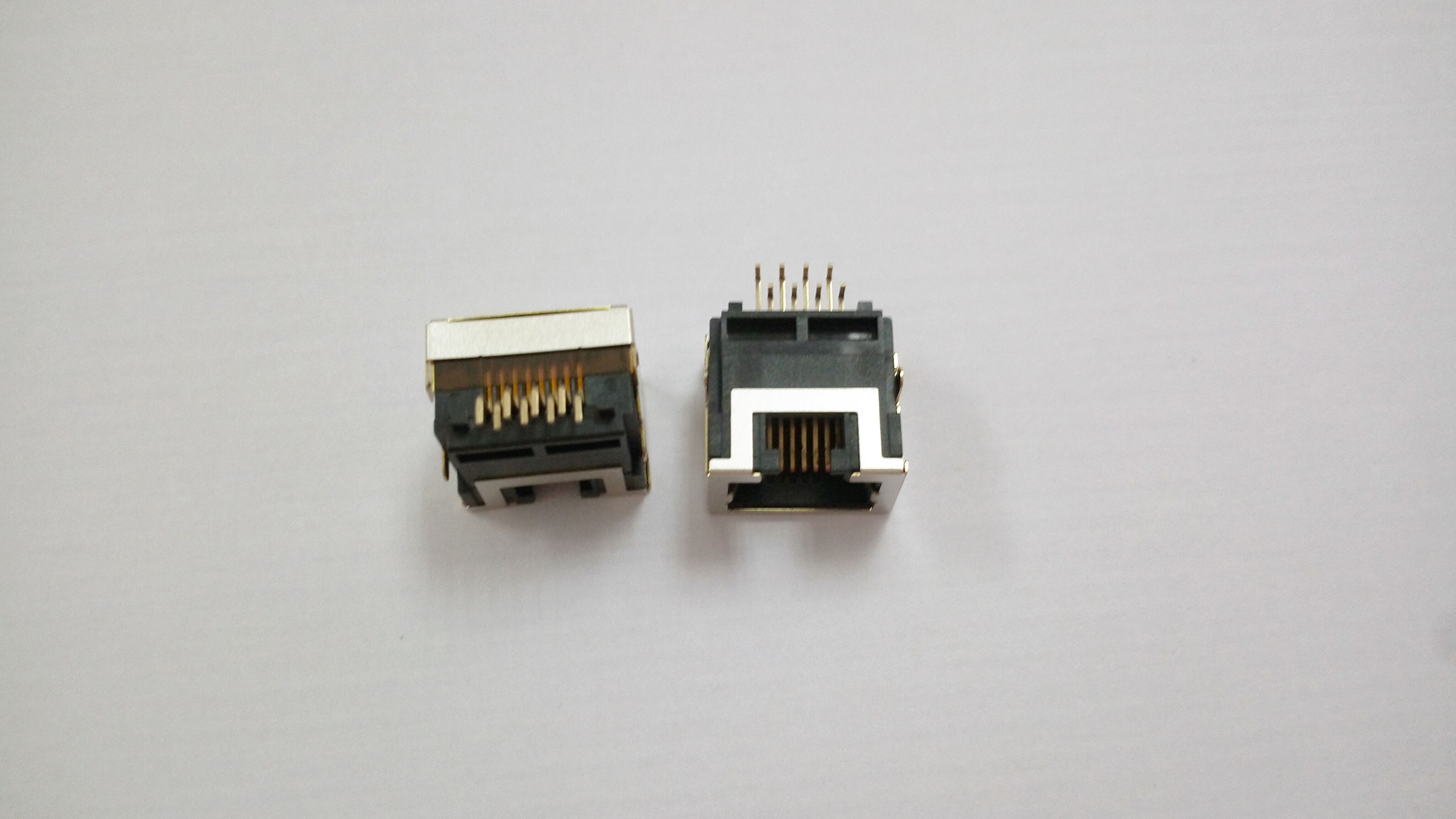

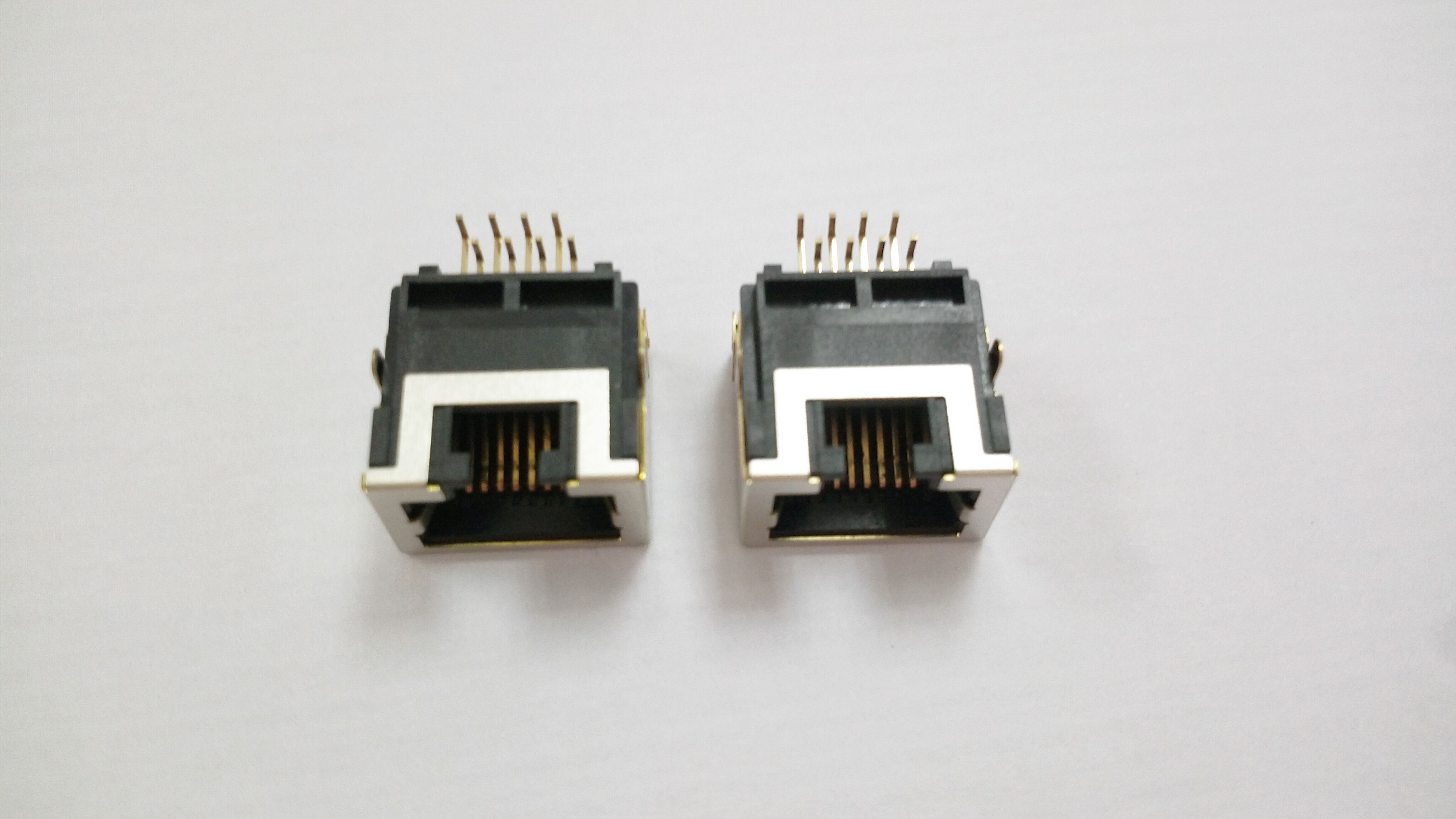

Product Picture



Low Profile RJ45 Female  Jack 8P8C Sinking Board , HF Product , Shielded





Product Drawing



Low Profile RJ45 Female  Jack 8P8C Sinking Board , HF Product , Shielded





Other Sinking Series



Low Profile RJ45 Female  Jack 8P8C Sinking Board , HF Product , Shielded
