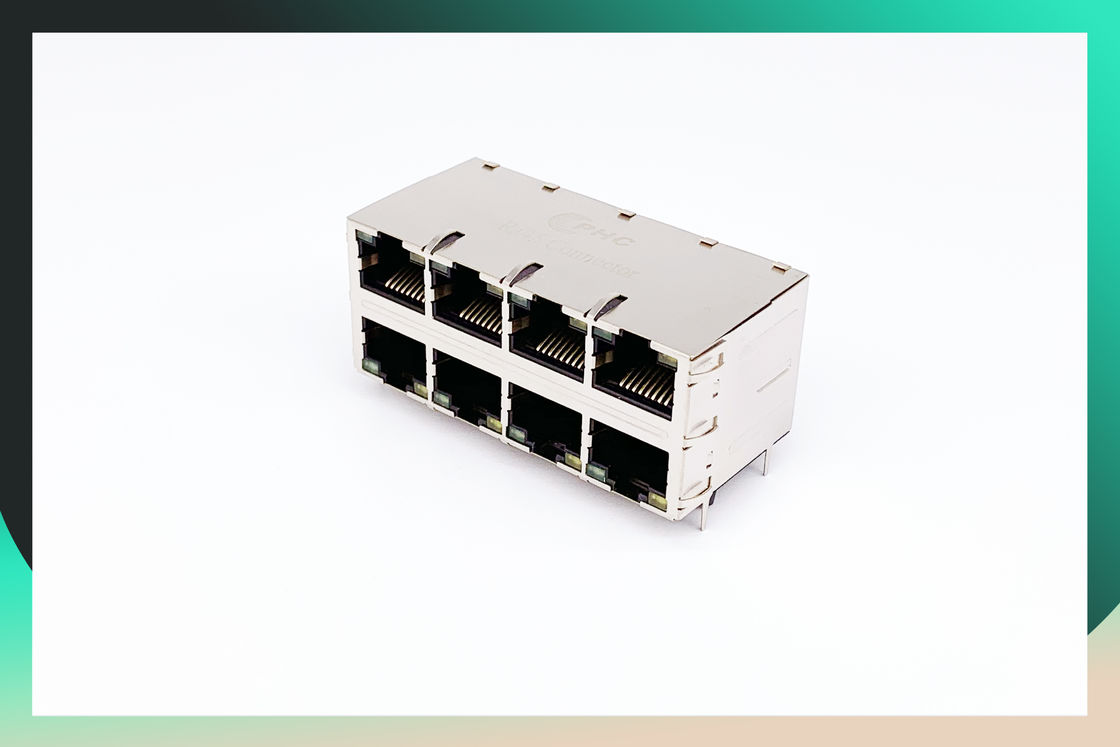

PHC 2 x 4 Port 10 / 100 / 1000 Mbps Shielded RJ45 Ethernet Jack W/O LED

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHC
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: Magnetic RJ45 Ethernet Jack
Minimum Order Quantity: 500 PCS
Price: 2.0~3.0 USD/PCS
Packaging Details: 10 pcs in 1 tray
Delivery Time: 3-30 work days
Payment Terms: T/T, L/C, D/A, D/P, PAYPAL
Supply Ability: 2,000,000pcs/Month
Contact Now
Detail Information
Port: 8 Port Shield Material: Brass Alloy
Terminal: Phosphor Copper Application: 8 Port 10/100/1000 Base-T
Led: Yellow,green,red,blue Option Application: PCB,Audio & Video,networking,Telecom,Signal
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket Sample: Welcome Ask Sample For Testing

Product Description

2X6 Port RJ45 Magnetic Jack 1000 Base - T RJ45 PCB Jack with LED and Shielded EMI,RJ45 Modular Jack





Part Number 0854-2X6R-G6-F / 0854-2X8R-G6-F / 85728-1008
Application-LAN ETHERNET(NON PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 9
Diodes NO DIODES
LED Option Without LEDS
Latch UP/Down
Number of Ports 2x6 Port
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 Magnetics
Temperature -20 TO 70°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1



Drawing

PHC 2 x 4 Port 10 / 100 / 1000 Mbps Shielded RJ45 Ethernet Jack W/O LED

PHC 2 x 4 Port 10 / 100 / 1000 Mbps Shielded RJ45 Ethernet Jack W/O LED
