Network Switch Single Port RJ45 Female Jack Connector Tab Up Without Transformer

Basic Information
Place of Origin: China
Brand Name: PHC
Certification: ISO9001 : 2008 , SGS , RoHs , UL
Model Number: 1055-2080XX
Minimum Order Quantity: 500
Price: USD1.0~1.2 pcs
Packaging Details: 100 pcs in 1 tray
Delivery Time: 1-2 Weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50000/day
Contact Now
Product Description



Single Port RJ45 Connector Tab Up Without Transformer for Network Switch





Feature:



1. RJ45 Connector 8p8c

2. IS09001-2008
3. SGS Certified
4. More than 10 Years Connectors Industry
5. used for HUB,PC Card,Switch,Route,PC Mainboard,SDH,PDH,IP Phone,XDSL Modem



Packaging&Delivery



1. Packaging Detail:1pc/bag 100pv/bag 1000pc/bag
2. Delivery Detail: About 2-3 weeks


Eceatrical


1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min


Mechanical

1.Operating:750  cycles min


Materical


1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch


Environmental


1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃


Mates with modular plug conforming to FCC part 68,subpart F.

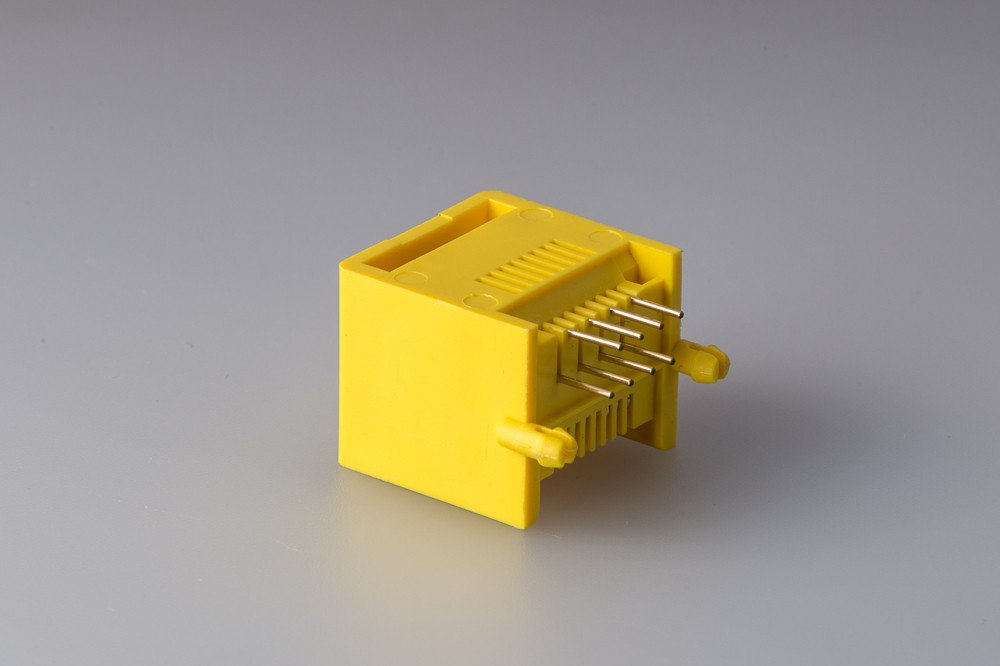

Production Picture



Network Switch Single Port RJ45 Female Jack Connector Tab Up Without Transformer





Drawing



Network Switch Single Port RJ45 Female Jack Connector Tab Up Without Transformer





Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .



  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)


Unit Price

Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

1. All the step are doing by ourself. So we can control the cost
2. PHC have more than 30 units automation equipments to product as possible
3. PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong .
4. With large scale of production lines, we can reach to cost reduction at the most extent

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits if customers are not satisfied)


Design &Technical strength
We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time : 30-45 workdays



Application:



1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box



RJ45 Jack Series



Network Switch Single Port RJ45 Female Jack Connector Tab Up Without Transformer





Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
