Gold Flash 90 Degree RJ45 10P8C With Shielded And No LED , PCB Female Jack

Basic Information
Place of Origin: GuangDong
Brand Name: PHC
Certification: ISO9001-2008
Model Number: 1059-208012
Minimum Order Quantity: 500pcs
Price: USD0.8- 1.5PCS
Packaging Details: 100pcs/Tray
Delivery Time: 24-30 work days
Payment Terms: D/A, D/P, L/C, T/T,paypal
Supply Ability: 1000,000pcs/Month
Contact Now
Detail Information
Mounting Type: Insert Plant Orientation: 90 Degree, Side Enter
Application: Without Transformers Delivery Time: 2-3 Weeks

Product Description

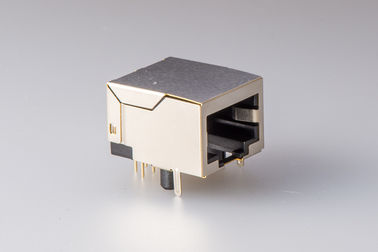

90 Degree RJ45 10P8C With Shielded And No LED , PCB Female Jack , Gold Flash





Specifications



Part Number

Manufacturer

Part Number

Manufacturer

Description

1059-208012

1059-208012

PHC

90 Degree RJ45 10P8C With Shielded And No LED , PCB Female Jack , Gold Flash



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female



Insert Plant



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

NO

Shielded





Eceatrical


1.voltage Rating:125 val
2.Insnlation Resiitance:500M min
3.Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min


 Mechanical

1.Operating:750  cycles min


 Materical


1.Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2.Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch


 Environmental


1.Working Temeperature:-20℃to 75℃
2.Storage Temeperature:-45℃to 85℃


Mates with modular plug conforming to FCC part 68,subpart F.



Electrical Specifications:


1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS





Drawing



90 Degree RJ45 10P8C With Shielded And No LED , PCB Female Jack , Gold Flash



Gold Flash 90 Degree RJ45 10P8C With Shielded And No LED ,  PCB Female Jack





Why Choose PengHui



Quality :



Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .



Manufactured under strict controls RoHS compliance
ISO 9001:2008 OEM for PULSE
UL Certification Active Environmental policy
Reach Cetitifaction Every module tested 3times (not just batch tested)





Unit Price



Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc



All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent





Production&Testing



PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.





Service

PHC Offer good pre-sales & after-sales service &Strong technical support



New Project: Strong technical and ideal support your new design

Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.

Free Samples: 3-5 PCS of each part number.
Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
Customer complaint: 24-48 hours reply 8D report.

Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits , if customers are not satisfied)









Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions



                                                                                -------------  PHC  Sales & Support Team
