Low Profile RJ45 Female Jack 8P8C Sinking Board , HF Product Shielded

Basic Information
Place of Origin: China
Brand Name: PHC
Certification: ISO9001:2008
Model Number: 1060-208102HF
Minimum Order Quantity: 500pcs
Price: USD 1.0 pcs
Delivery Time: About 2 Weeks
Supply Ability: 100000pcs/M
Contact Now
Detail Information
Main Products:: RJ45 Connector PCB Mount Angle: Side Enter
House: HF House Application: TV , Set Box , IP CAMER , DVR, VOIP , Computer

Product Description



Low Profile RJ45 Female Jack 8P8C Sinking Board , HF Product , Shielded





Specifications



Connector Type Sinking Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Ratings Cat3
Features Board Lock
LED Color No
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Housing Material

Thermoplastic







Eceatrical


1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min


Mechanical

1. Operating:750 cycles min


Materical


1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch


Environmental


1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃


Mates with modular plug conforming to FCC part 68,subpart F.



Product Picture

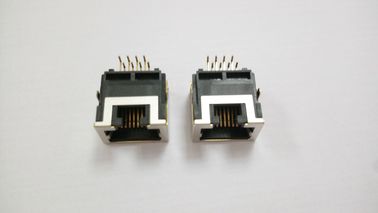

Low Profile RJ45 Female Jack 8P8C Sinking Board , HF Product Shielded





Product Drawing



Low Profile RJ45 Female Jack 8P8C Sinking Board , HF Product Shielded





Why Choose PengHui



Quality :



Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing ,

packing .All the step are doing by ourself . So we can control the quality .



Manufactured under strict controls RoHS compliance
ISO 9001:2008 OEM for PULSE
UL Certification Active Environmental policy
Reach Cetitifaction Every module tested 3times (not just batch tested)





Unit Price



Charge only 35% ~ 60% of Pulse , Wurth(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc



All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent





Production&Testing



PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.





Service

PHC Offer good pre-sales & after-sales service &Strong technical support



New Project: Strong technical and ideal support your new design

Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.

Free Samples: 3-5 PCS of each part number.
Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
Customer complaint: 24-48 hours reply 8D report.

Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits , if customers are not satisfied)
