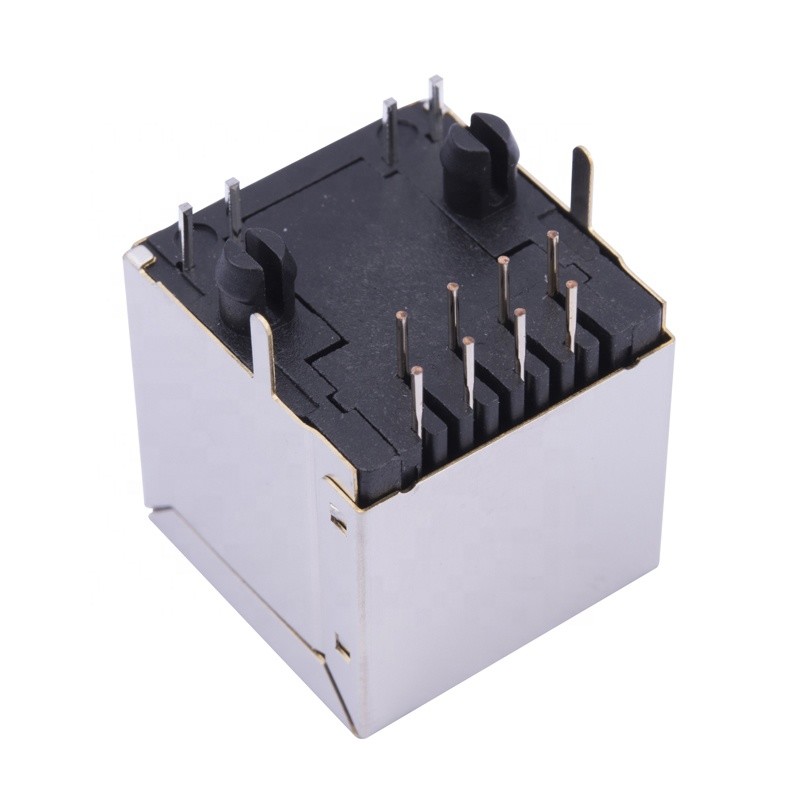

Shielded RJ45 Modular Jack 8P8C Single Port With LED Gold Plated
PHC operates and specializes in the provision of RJ45 Modular Connector networking connectivity alongside solutions
in the field of telecom and datacom; PHC offers a broad range of RJ45 Modular Connector for your data and signal transmissions.
Our RJ45 Modular Connector are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded,
Gold plating /non-gold plating with EMI Finger/LED options.
Spectifications
| Series | Connectors, Interconnects |
| Connector Type | RJ45 Modular Jack |
| Mounting Type | Thru-Hole |
| Orientation | 8P8C Side Enter |
| Termination | Solder |
| LED Color | Yellow / Green |
| Shielding | Shield |
NOTES:
ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.
MECHNICAL:
1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.
ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
Drawing
Single Port Shield RJ45 Modular Connector With LED EMI Finger / Gold Plated
Why Choose PengHui
Quality :
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .
All the step are doing by ourself . So we can control the quality .
| Manufactured under strict controls | RoHS compliance |
| ISO 9001:2008 | OEM for PULSE |
| UL Certification | Active Environmental policy |
| Reach Cetitifaction | Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if
customers are not satisfied)
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
| Case.1 | Stock | 25% |
| Case.2 | 3-4 Weeks | 70% |
| Case.3 | 5-6 Weeks | 5% |
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays
PHC Patented product in China
