| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | 1-1840275-3 |
| Minimum Order Quantity: | 5000PCS |
| Price: | Negotiable price |
| Packaging Details: | 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; vacuum package,boxes in carton |
| Delivery Time: | 3-30 work days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000000PCS/Week |
| Gender: | Female | Type: | Networking |
|---|---|---|---|
| Application: | Networking,Telecom,Signal | Insulation Resistance: | ≥1000MΩ |
| Keywords: | Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket | Housing: | Thermoplastic Plastics,ABS 94V-0/1/2,Nylon,PBT UL94V-0 |
| Contact Material: | Phosphor Bronze 0.46mm | Voltage Rating: | 125vac |
| High Light: | rj45 connector jack,rj45 network port |
||

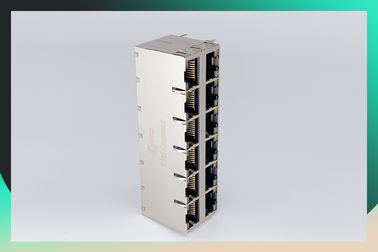

| Part Number | 0854-2X6R-G6-F / 0854-2X8R-G6-F / 85728-1008 |
| Application-LAN | ETHERNET(NON PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 9 |
| Diodes | NO DIODES |
| LED Option | Without LEDS |
| Latch | UP/Down |
| Number of Ports | 2x6 Port |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 Magnetics |
| Temperature | -20 TO 70°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
Drawing
Why Choose PengHui
Quality:
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating, From Design tooling, stamping, Injection molding, assemble, Testing, packing. All the
step are doing by ourself. So we can control the quality.
Unit Price
Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong (HQ)
With large scale of production lines, we can reach to cost reduction at the most extent
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
| Case.1 | Stock | 25% |
| Case.2 | 3-4 Weeks | 70% |
| Case.3 | 5-6 Weeks | 5% |
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
------------- PHC Sales & Support Team
