| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO：9001；ISO：14001 |
| Model Number: | 1051-208004 |
| Minimum Order Quantity: | 5000 PCS |
| Price: | $0.50-$1.00 |
| Packaging Details: | 10 pcs in 1 tray |
| Delivery Time: | 7 - 10 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5,000,000 PCS / Month |
| Place Of Origin: | DONGGUAN, China (Mainland) | Model Number: | 1051-208004 |
|---|---|---|---|
| Application: | PCB | Number Of Ports: | 1 Port |
| Contact Plating: | Gold | Certificate: | IS09001/ROHS/CE/FCC |

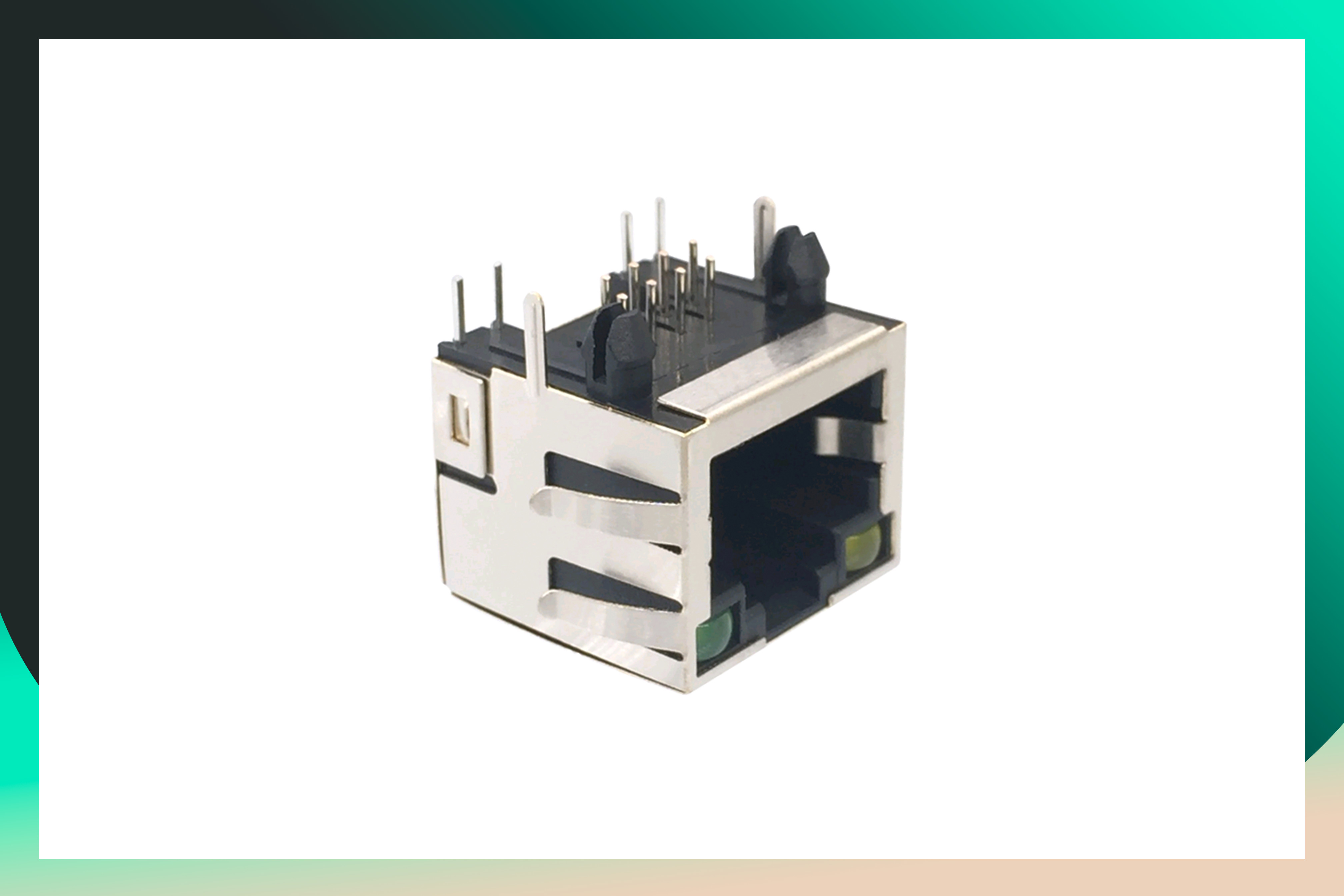

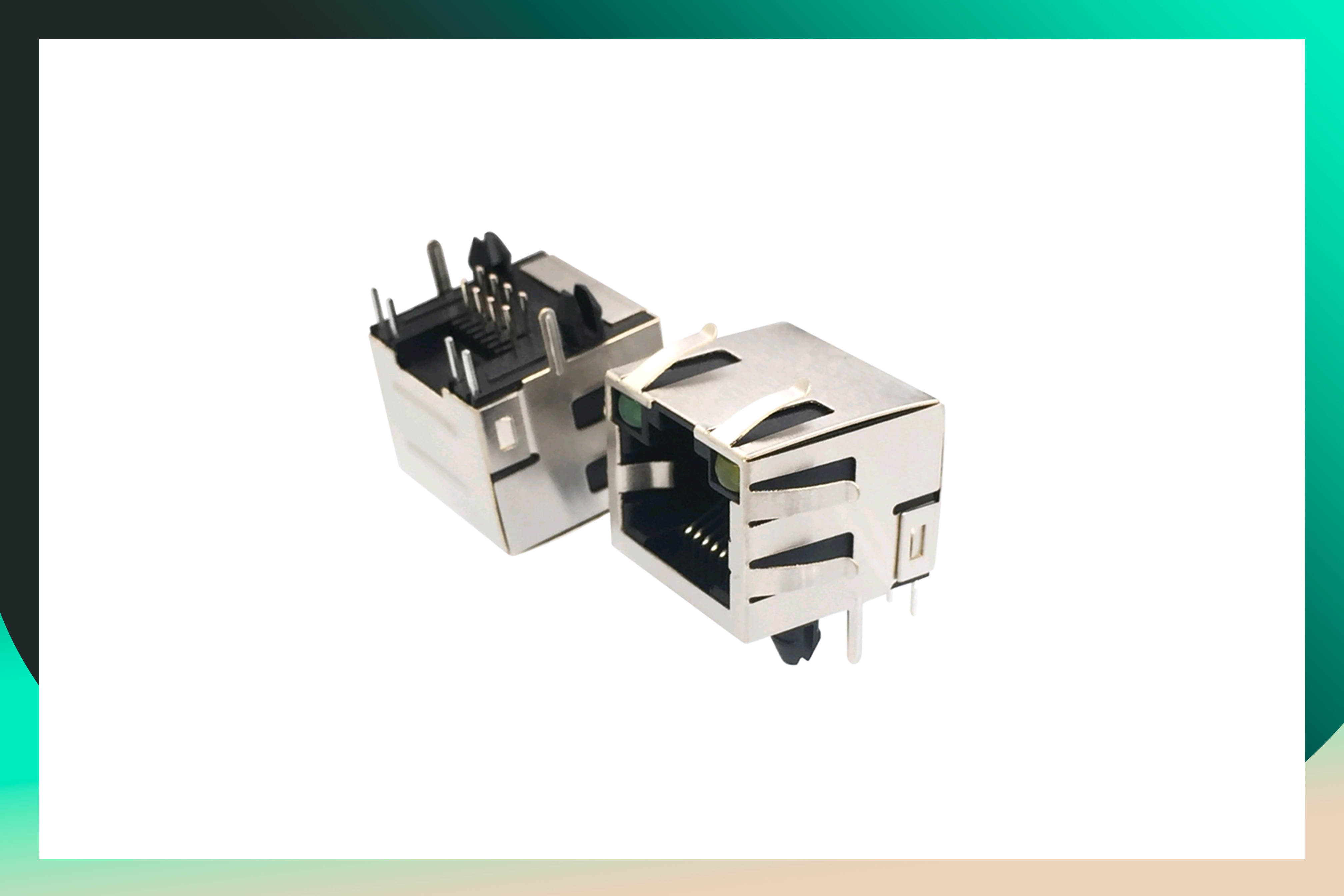

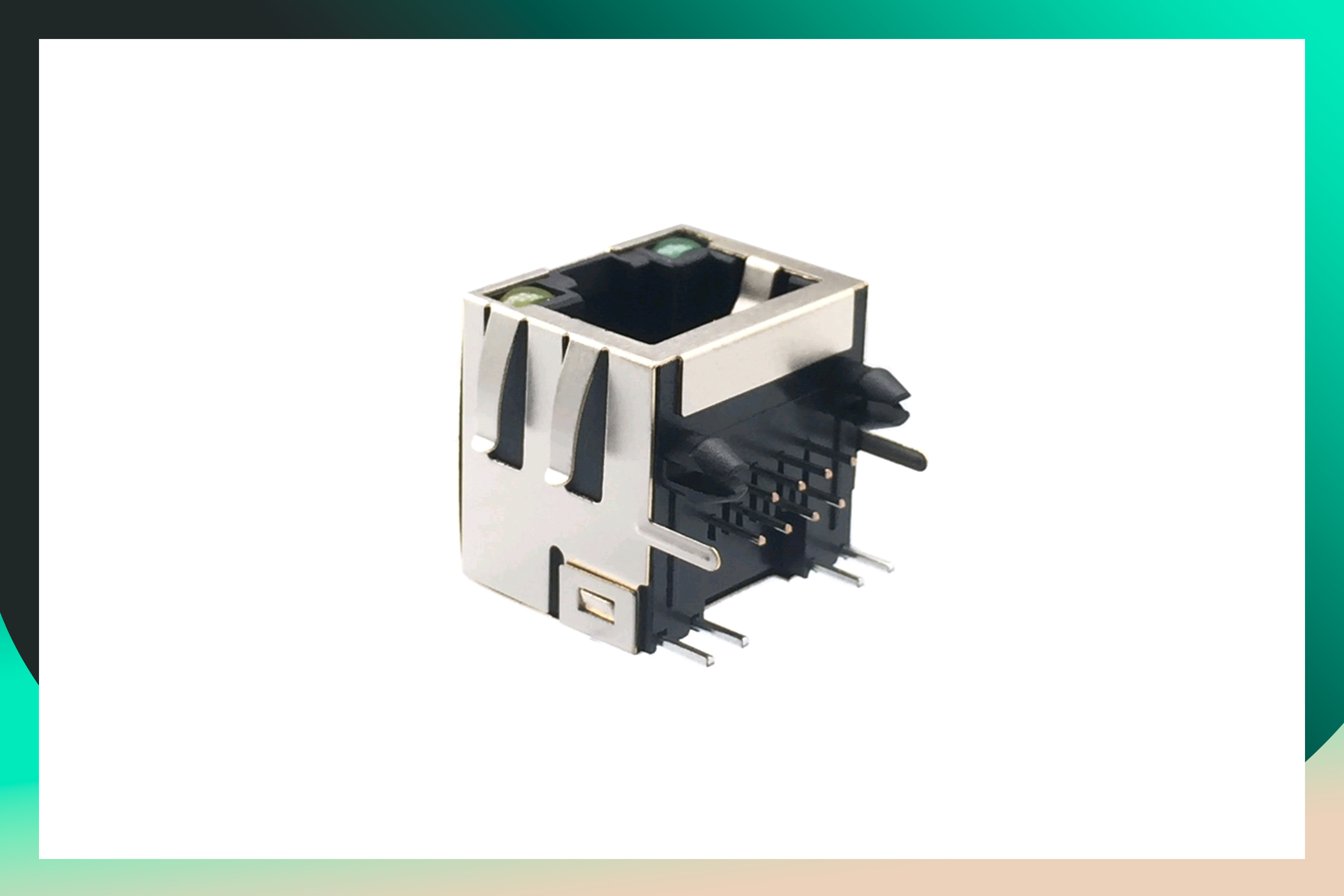

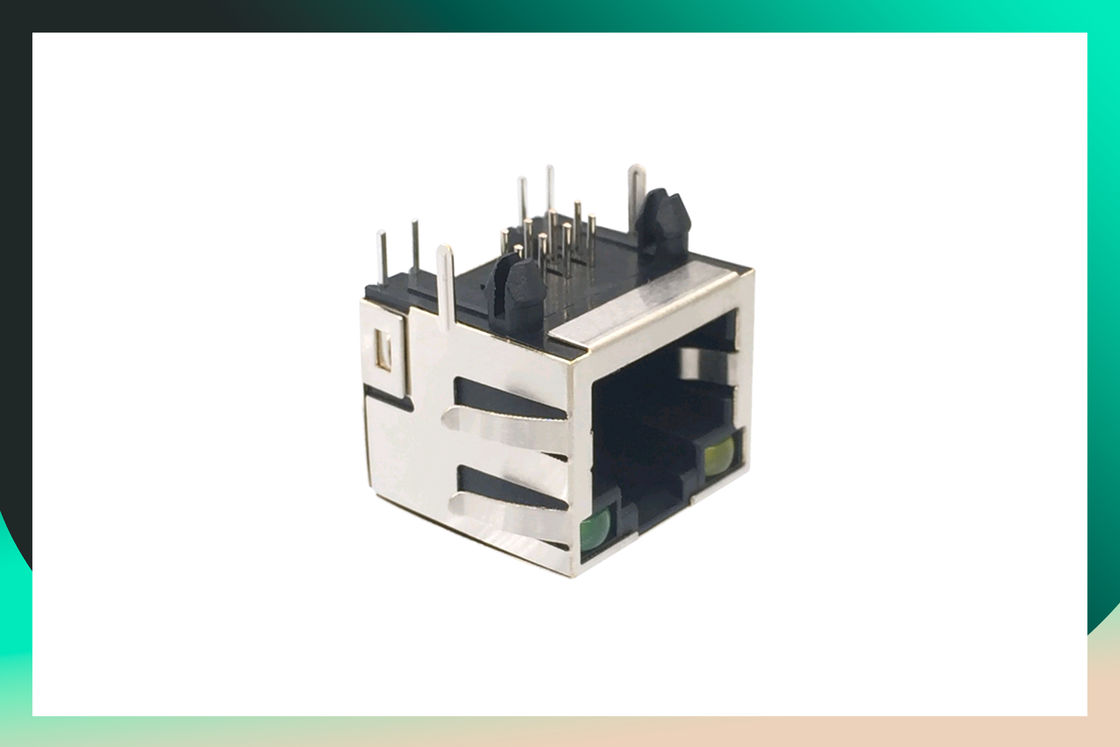

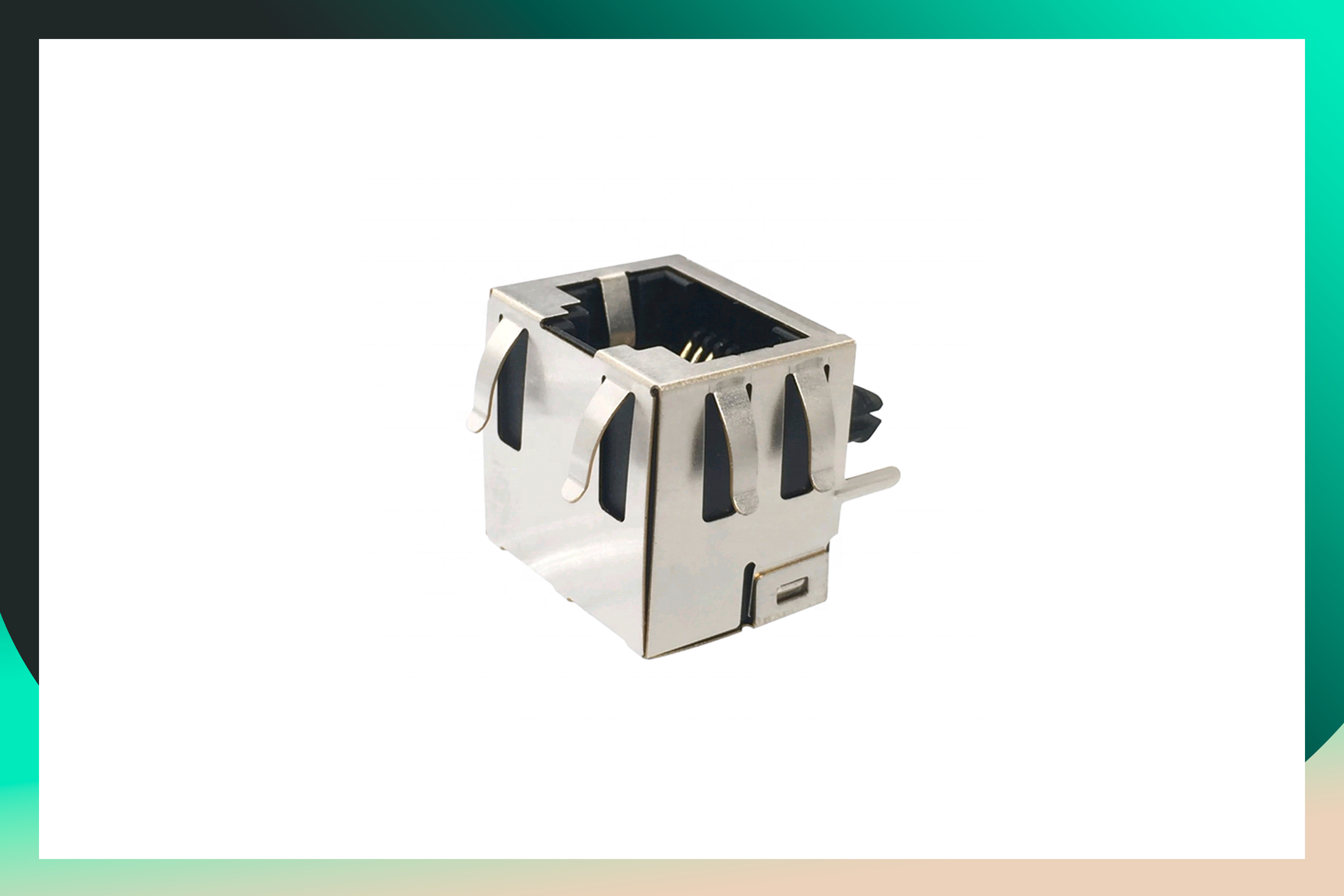

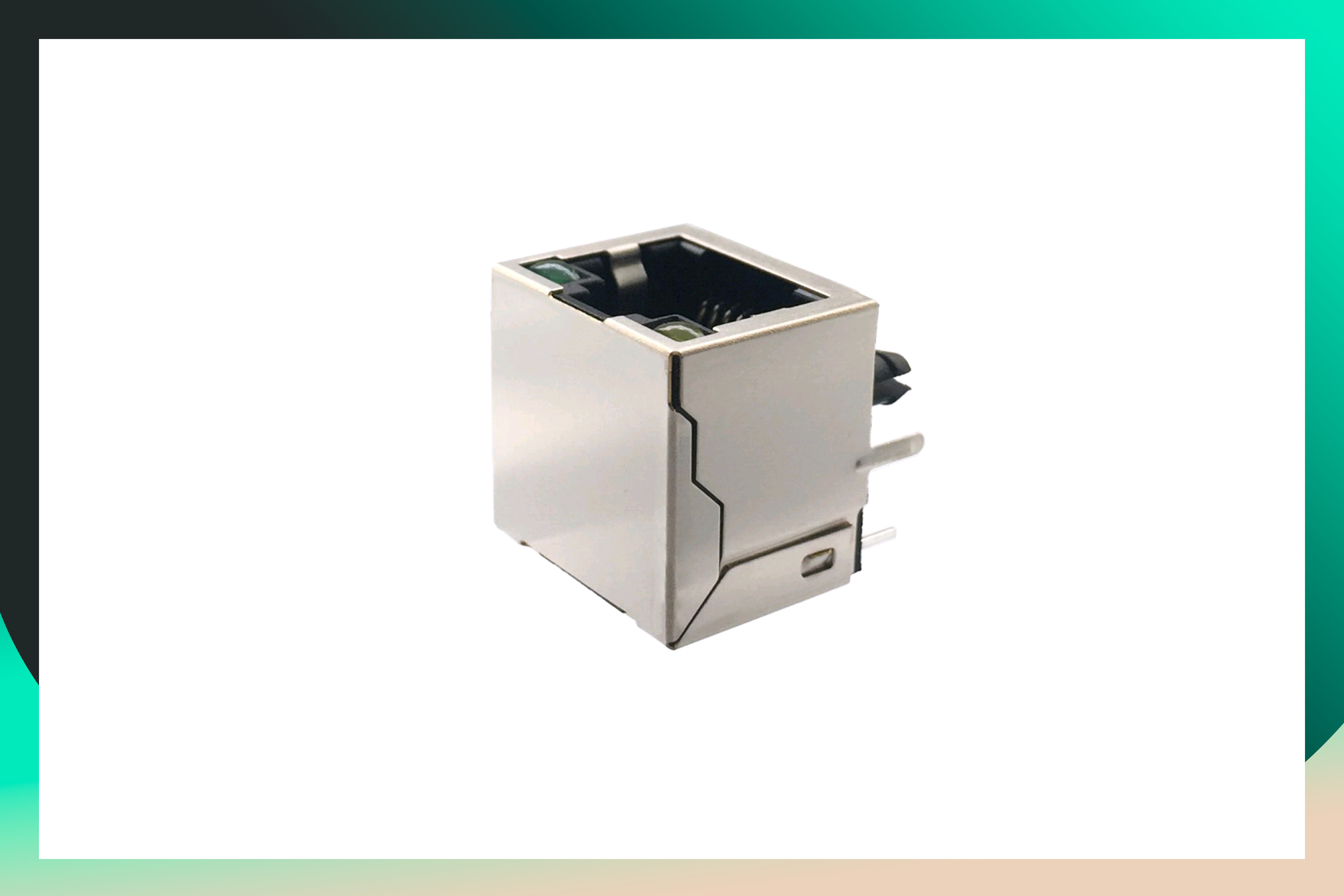

| Termination: | Solder | Type: | RJ45 |
| Gender: | Female | Shielding: | Shielded, EMI Finger |
| Tab Direction: | UP | LED Color: | Green - Yellow |
| Orientation: | 90° Angle (Right) | ||
| High Light: | rj45 connector jack,rj45 network port,1 Port rj45 shielded modular plug |
||
MECHANICAL:
1. HOUSING MATERIAL:glass-filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING: gold plating over nickel.
4. DURABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.
| Categories | Connectors, Interconnects |
| Modular Connectors | |
| Application-LAN | ETHERNET(non-POE) |
| Connector Type | RJ45 |
| Number of Positions/Contacts | 8p8c |
| Number of Ports | 1x1 |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.537" (13.65mm) |
| LED Color | Green - Yellow |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Operating Temperature | 0°C ~ 70°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| RoHS Compliant | YES-RoHS-5 WIth Lead in Solder Exemption |
ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.
ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERATURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
Drawing:
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
| Case.1 | Stock | 25% |
| Case.2 | 3-4 Weeks | 70% |
| Case.3 | 5-6 Weeks | 5% |
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
What can we do for you?
1. We can offer free samples.
2.Various operation force, height, and color for your choice.
3. large quantity discount
Why us?
1. Excellent quality with competitive price
We are a manufacturer making RJ45 for more than 15 years.
2.Quality guaranty
Check quality one by one before shipping, We have a good quality-control team and
precision testing machine to control the quality seriously
3. Customize acceptable
according to your design to produce a quality product.
