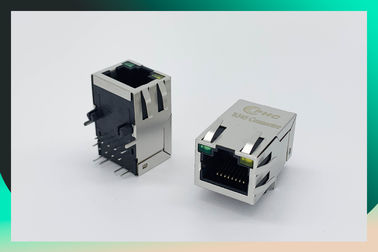

R10G-661A-12F4-G2 Magnetic RJ45 Connector

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001;ISO14001;SGS;
Model Number: R10G-661A-12F4-G2
Minimum Order Quantity: 5000PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in a catrton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Detail Information
Type: RJ45 Female Application: PCB,Audio & Video,Ethernet,for Network Connection
Color: Black Or Other Colors Are Available Product Name: 8p8c Plug CAT5e CAT6
Port: 1 Name: Cat.6a Toolless-plug Rj45
Keywords: 90 Degree RJ45 Socket,rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket Jack: RJ45 Ethernet Port
High Light:

R10G-661A-12F4-G2 Magnetic RJ45 Connector

,

10G Base-T Magnetic RJ45 Connector

,

1X1 Magnetic RJ45 Jack


Product Description

R10G-661A-12F4-G2 1x1 Port RJ45 Connector With 10G Base-T Magnetic



Feature:

1. CONNECTOR MATERIAL:
    HOUSING: THERMOPLASTIC BLACK UL94 V-0
    SHIELD: Brass SHIELD
    PLATING: NICKEL
    CONTACT: PHOSPHOR BRONZE
    CONTACT PLATING: SELECTIVE GOLD,30 MICRO-INCHS MIN IN CONTACT AREA

2. PIN NOT ELECTRICALLY CONNECTED MAYBE OMITTED SEE ELECTRICAL DRAWING

    FOR OMITTED PINS
3. RJ45 CAVITIES CONFORM TO FCC RULES AND REGULATION PART 68.
4. THE PART IS RECOMMENDED FOR WAVE SOLDERING PROCESS PEAK SOLDERING

    TEMPERATURE IS 260° C MAX, 10 SECS MAX
5. OPERATING TEMPERATURE T= 0° C TO +70° C.
6. STORAGE TEMPERATURE T=-40° C TO +85° C.



Drawing:

R10G-661A-12F4-G2 Magnetic RJ45 Connector 0
