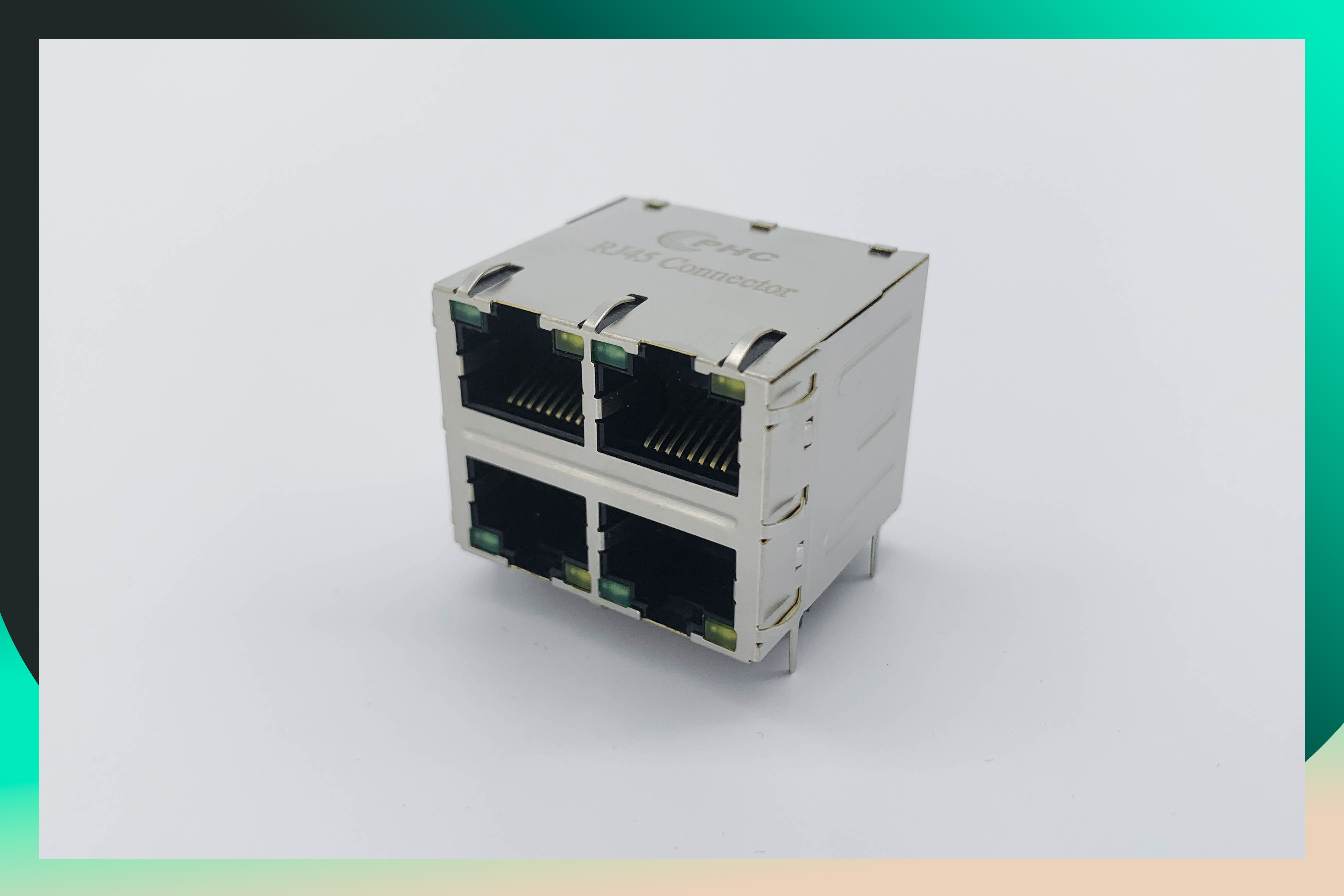

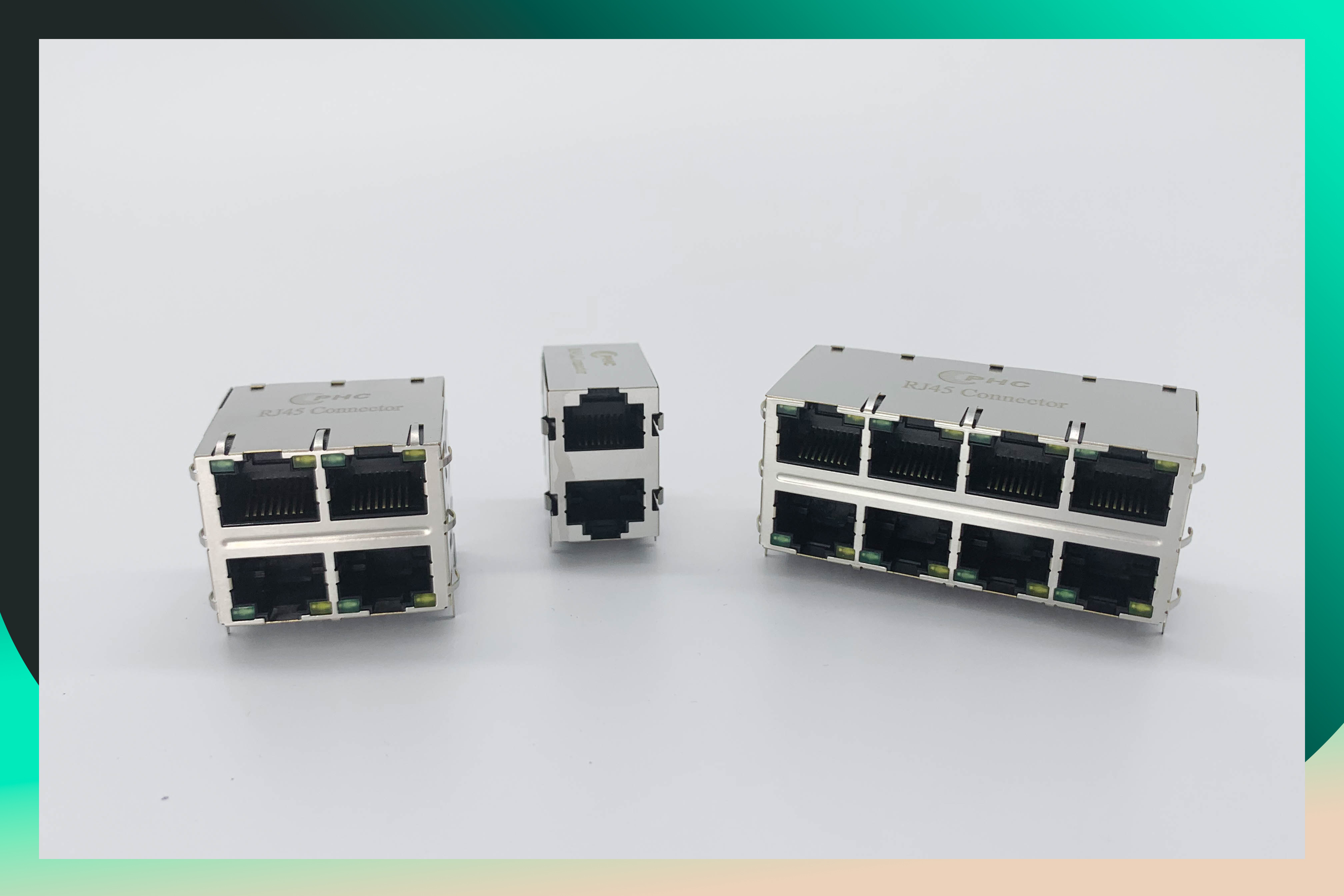

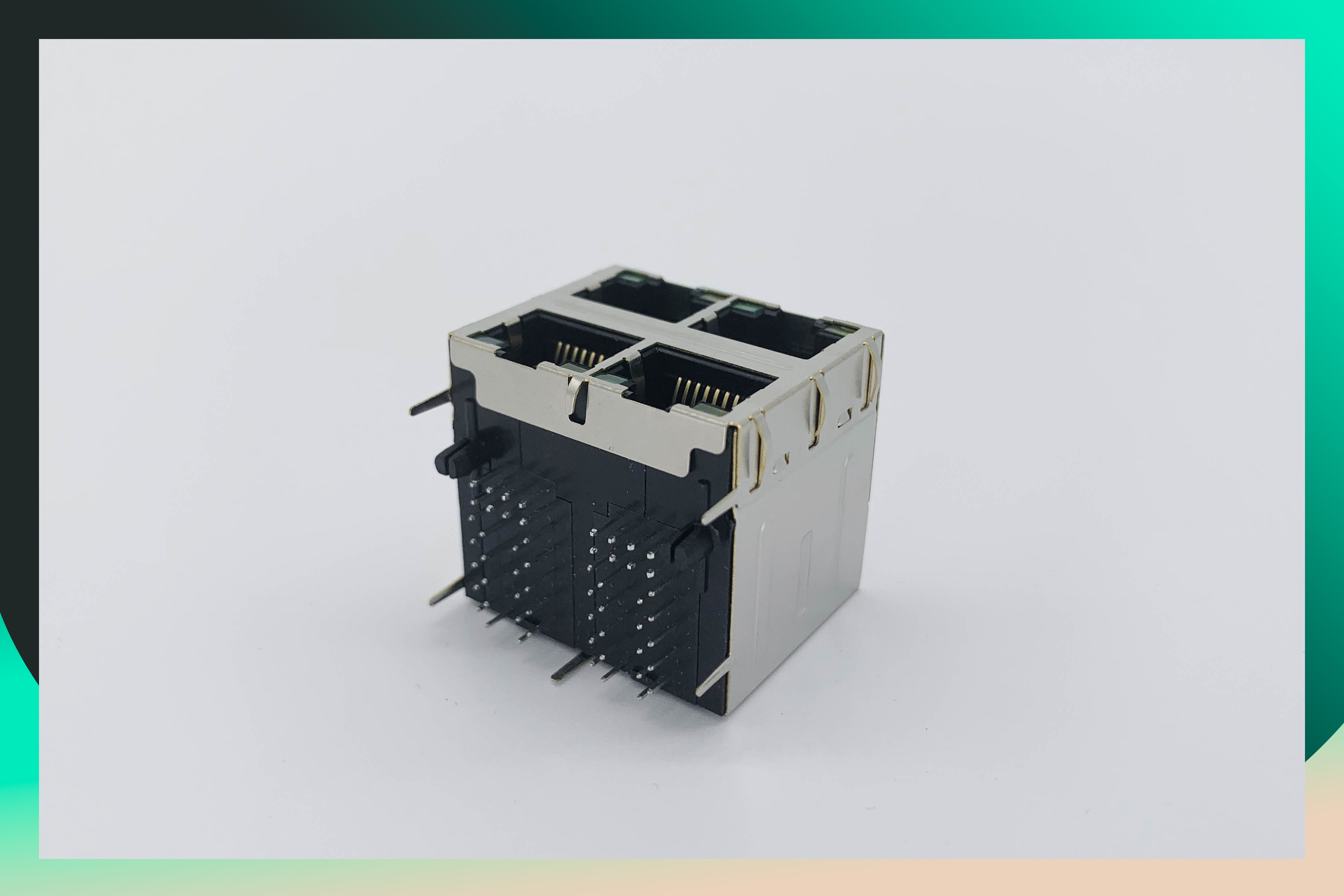

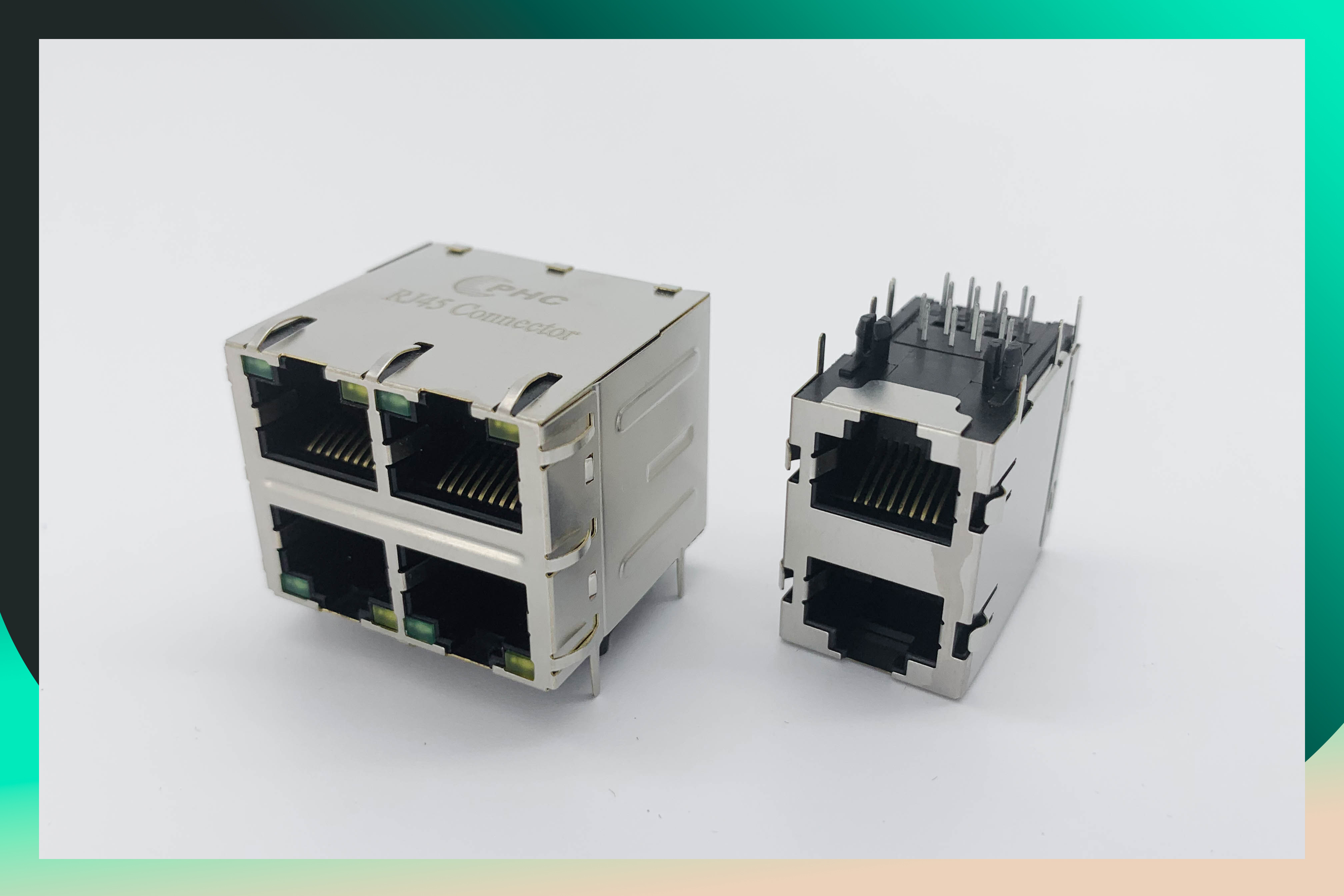

PHC 2X2 Port Shielded 8P8C RJ45 Ethernet Jack

PHC 2 x 1 Port 10 / 100 / 1000 Mbps Shielded RJ45 8p8c jack Ethernet Jack W/O LED

Feature:

1.Complies with IEEE802.3ab standards and all Gigabit specifications including 350uH with 8mA DC bias

2.Intergrated Mag-modular design provides higher reliabilityand conserves minimizing PCB space

3.Housing: PA6T UL94V-0 rated, Black

4.Contact :Phosphor Bronze( C5191),Gold plated on contact area 30u".

5.Input Terminal : Brass(C2680)

6.Metal shielding:Copper alloy with Nickel plated(C2680),

7.Operating temperature: -40oC to +85oC

8.Storage temperature: -40oC to +85oC

Drawing

东莞市鹏辉电子有限公司

DongGuan PengHui Electronics Co.,Ltd

Feature:

.

Complies with IEEE802.3ab standards and all Gigabit

specifications including 350uH with 8mA DC bias

.

Intergrated Mag-modular design provides higher reliability

and conserves minimizing PCB space

.

.

Housing: PA6T UL94V-0 rated, Black

Contact :Phosphor Bronze( C5191),Gold plated on

contact area 30u".

.

Input Terminal : Brass(C2680)

.

.

.

Metal shielding:Copper alloy with Nickel plated(C2680),

SCHEMATIC

o

o

Operating temperature: -40 C to +85 C

o

o

Storage temperature: -40 C to +85 C

Lead-free process,compliant RoHS

o

Electrical Specifications: (25 C)

Insertion

Loss

dB Max

Common Mode

Rejection dB TYP

Crosstalk

dB TYP

Return Loss dB Min

Hi-Pot

vrms)

(

1

~100MHz 1~30MHz 60~80MHz 80~100MHz 1~100MHz 150MHz 1~100MHz

-1.0

-18.0

-12.0

-10.0

-30.0

-20.0

-30.0

1500/1mA

LED Specifications:

Forward

V Max)

Typical

Standard LED Color LED Wavelength

(

(V TYP)

2.1~2.2

Green

560-580 nm

580-610 nm

2.5

2.5

Orange

2.1~2.2

1

1

13

1. LED intensity/wavelength measured with Photo research PR-650 colormeter

GREEN

ORANGE

2. With a forward Current of 20mA,absolute maximum ratings (Ta=25°)

12

1

4

LEFT LED

RIGHT LED

Unspecified tolerance (Unit : mm)

Title

2 X 2 RJ45 Connector

Prepared BY : YQSun

.x +/- 0.38

.xx+/- 0.25

.xxx+/- 0.13

Manufacture P/N

Sheet 1 of 1

RMA-065C8-40F9-GO-30

Approved BY : X.J.Fang

Rev. A0
