| Place of Origin: | GuangDong, China |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | R2.5G-671B-80F9-2O |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable price |
| Packaging Details: | vacuum package,boxes in a catrton |
| Delivery Time: | 3-30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, PAYPAL |
| Supply Ability: | 5000000PCS/Week |
| Product Name: | Female To Female Magnetic Ethernet Rj45 Female Jack | Insulation Resistance: | 1000MΩ Min |
|---|---|---|---|
| Shielding: | Shielded | Material: | Metal&plastic |
| Main Customer: | TI Samsung Cisco Siemens,JABIL/Panasonic/FOXCONN/Coampal/HUAWEI/ZTE | Contact Resistance: | 30mΩ Max.(intial). |
| Speed: | 10/100/1000 Base-T | Port: | 1*2 For RJ45 Connector |
| High Light: | R2.5G-671B-80F9-2O,8P8C RJ45 Female Connector,2.5G RJ45 Female Connector |
||

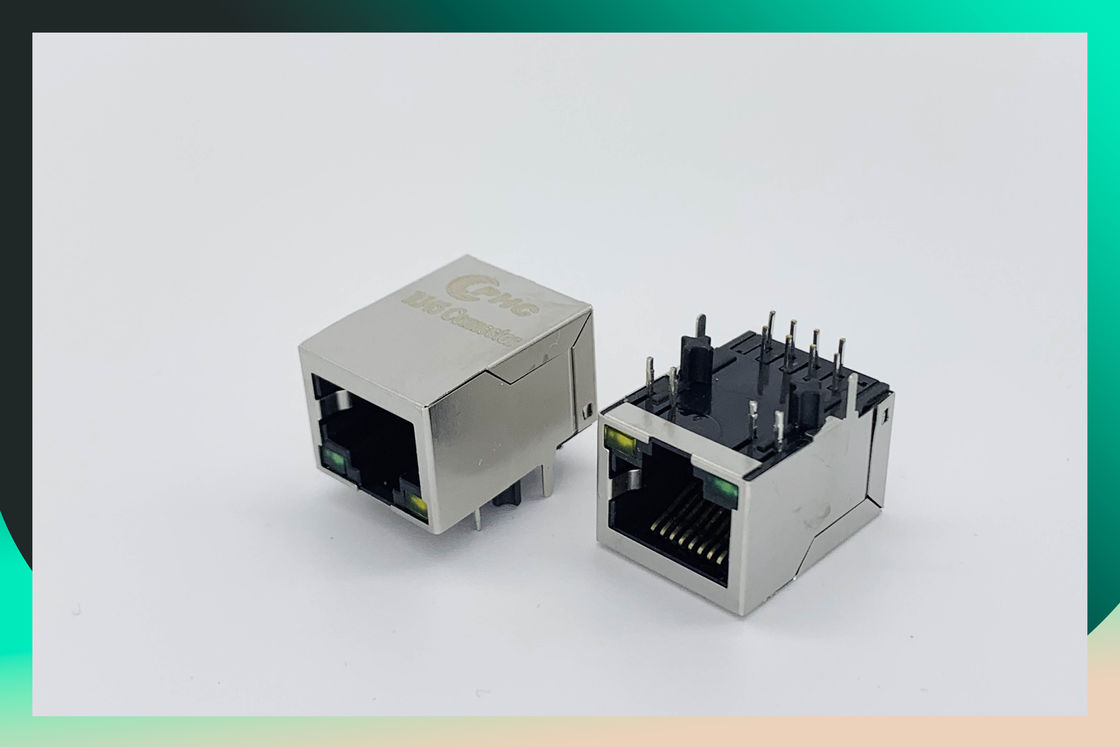

R2.5G-671B-80F9-2O 2.5G Single Port 8P8C RJ45 Female Connector PCB Jack
| Electrical | |||||
| 1.Current Rating | 1.5 amps | ||||
| 2.Voltage Rating | 125vac | ||||
| 3.Insulation Resistance | 500 MΩmin | ||||
| 4.Contact Resistance | 30 MΩmax | ||||
| 5.Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min | ||||
| Mechanical | |||||
| 1.Insertion Force | 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g 8 CONTACTS….900g 10 CONTACTS....1050g | ||||
| 2.Retention Strength | 7.7KG.F min between jack and plug | ||||
| 3.Durability | 750 mating cycles min | ||||
| Material | |||||
| 1.Housing | ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) | ||||
| 2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel | ||||
| 3.Shield | 0.20~0.25mm thickness brass with tin plated | ||||
| 4.Gold Plating | 1u ,3u 6u 15u 30u 50u | ||||
|
5.LED Specification
|
Standard LED Color: | LED Wavelength: | Forward (V MAX): | Typical (V TYP): | Luminous Intensity: |
| Green | 560-580 nm | 2.5V | 2.1-2.2V | 9-25 MCD | |
| Yellow | 580-610 nm | 2.5V | 2.1-2.2V | 9-30 MCD | |
| Orange | 580-610 nm | 2.5V | 2.1-2.2V | 50-100 MCD | |
| 1. LED intensity/wavelength measured with Photo Research PR-650 Colormeter 2. With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25℃) |
|||||
| 6.RoHS peak wave solder | RoHS peak wave solder temperature rating 260℃±5℃ | ||||
| Operating and Storage Temperature: | |||||
| Operating Temperature: | -40℃ to 85℃ | ||||
| Storage Temperature: | -40℃ to 85℃ | ||||
| APPLICATION: | |||||
| NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK | |||||
| STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX. | |||||
