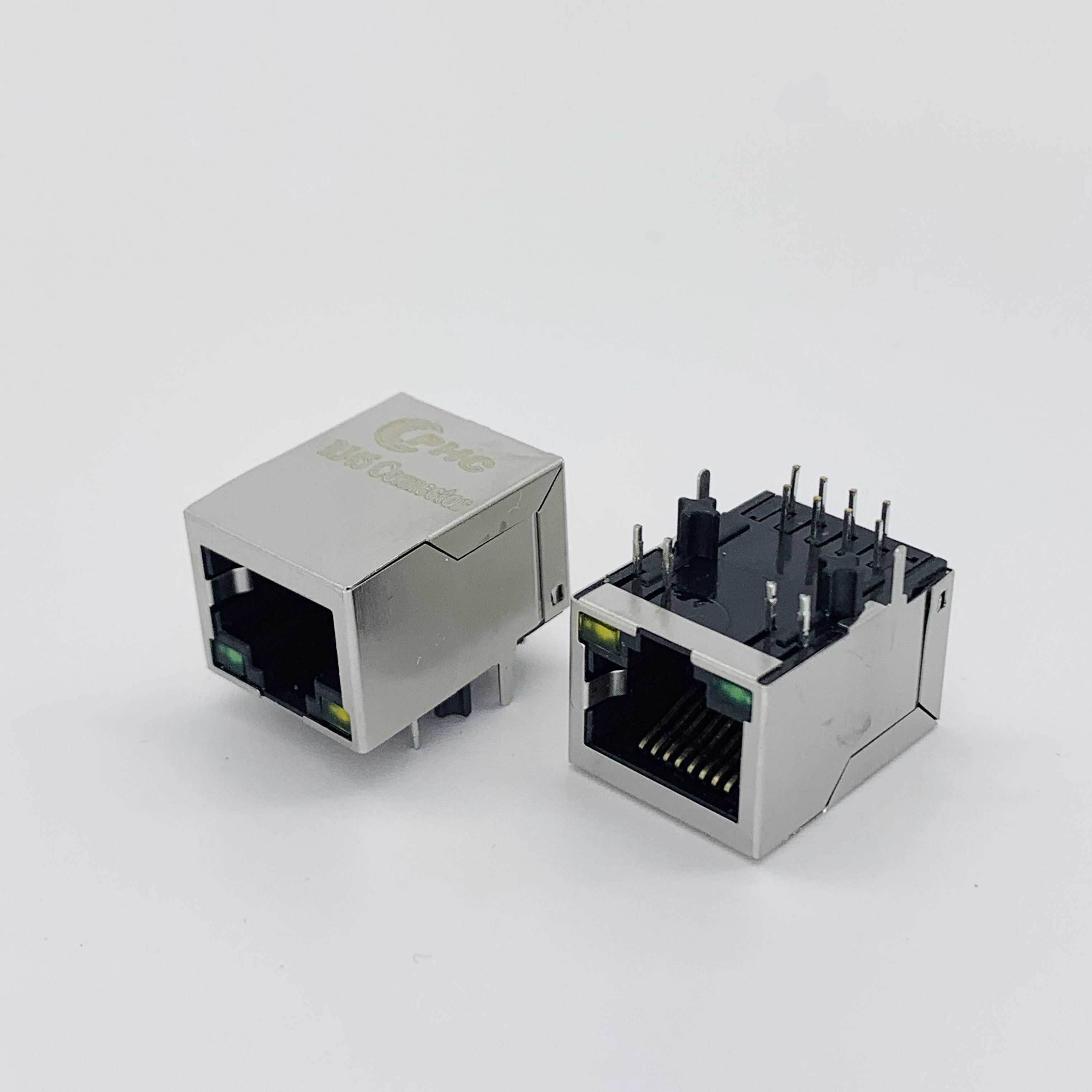

RMS-001L-08A0-GY-6G 10/100Base-TX Magnetic RJ45 Jack

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RMS-001L-08A0-GY-6G
Minimum Order Quantity: 500 PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in a catrton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Detail Information
Application: PCB,networking,Telecom,Signal Color: Black
Material: Phosphor Bronze Insulation Resistance: 1000 Megohms Min @ 500 Vdc
Contact Material: Phosphor Bronze 0.46mm Package: Tray
Sample: Welcome Ask Sample For Testing Shield: Brass With NI Plated
High Light:



10/100Base-TX Magnetic RJ45 Jack


125V Magnetic RJ45 Jack

Product Description

RMS-001L-08A0-GY-6G Magnetic RJ45 Jack 1x10/100Base-TX


Product Details:


1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature -40℃ to +85℃
10. Storage Temperature -40℃ to +85℃
11. Housing Material PBT
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. LED Option Yellow/Green LEDs


Product Drawing:

RMS-001L-08A0-GY-6G 10/100Base-TX Magnetic RJ45 Jack 0



Q1: Can provide a sample test?
A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.


Q2:How about the MOQ?
A: NO MOQ , 1pcs OK . Small order welocome.


Q3: What’s the lead time?
A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4:Can make customized products ?
A:Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.


Q5:What kind of payment do accept ?
A:ONLINE ( TRADE INSURANCE),,VISA,T/T,Western union,MoneyGram.
