Metal Shielded Magnetic Megabit POE RJ45 Connector

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: UL,ROHS,REACH,ISO
Model Number: RMS-001L-08A0-GY-2
Minimum Order Quantity: 100 pcs
Price: Price to be determined
Packaging Details: Tray, carton
Delivery Time: 3-30work-days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 100000 pcs/week
Detail Information
Gender: Modular Jack Application: PCB,Audio & Video,networking,Telecom,Signal
Material: Phosphor Bronze Pin: 8pin
Insulation Resistance: 1000 Megohms Min @ 500 Vdc Keywords: 90 Degree RJ45 Socket
Sample: Welcome Ask Sample For Testing Shield: Yes
High Light:

Megabit POE RJ45 Connector


Megabit POE RJ45 Connector


Metal Shielded RJ45 Modular Jack

Product Description

Metal Shielded RJ45 Magnetics , megabit POE rj45 connector with magnetics , 100Mb


Product Details:


1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature -40℃ to +85℃
10. Storage Temperature -40℃ to +85℃
11. Housing Material PBT
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. LED Option Yellow/Green LEDs


Our advantage:


1.Short lead time: 7~10 days under 50k pcs.

2.High quality with competitive prices.

3.Free samples can provided.

4.Good service to each customers.

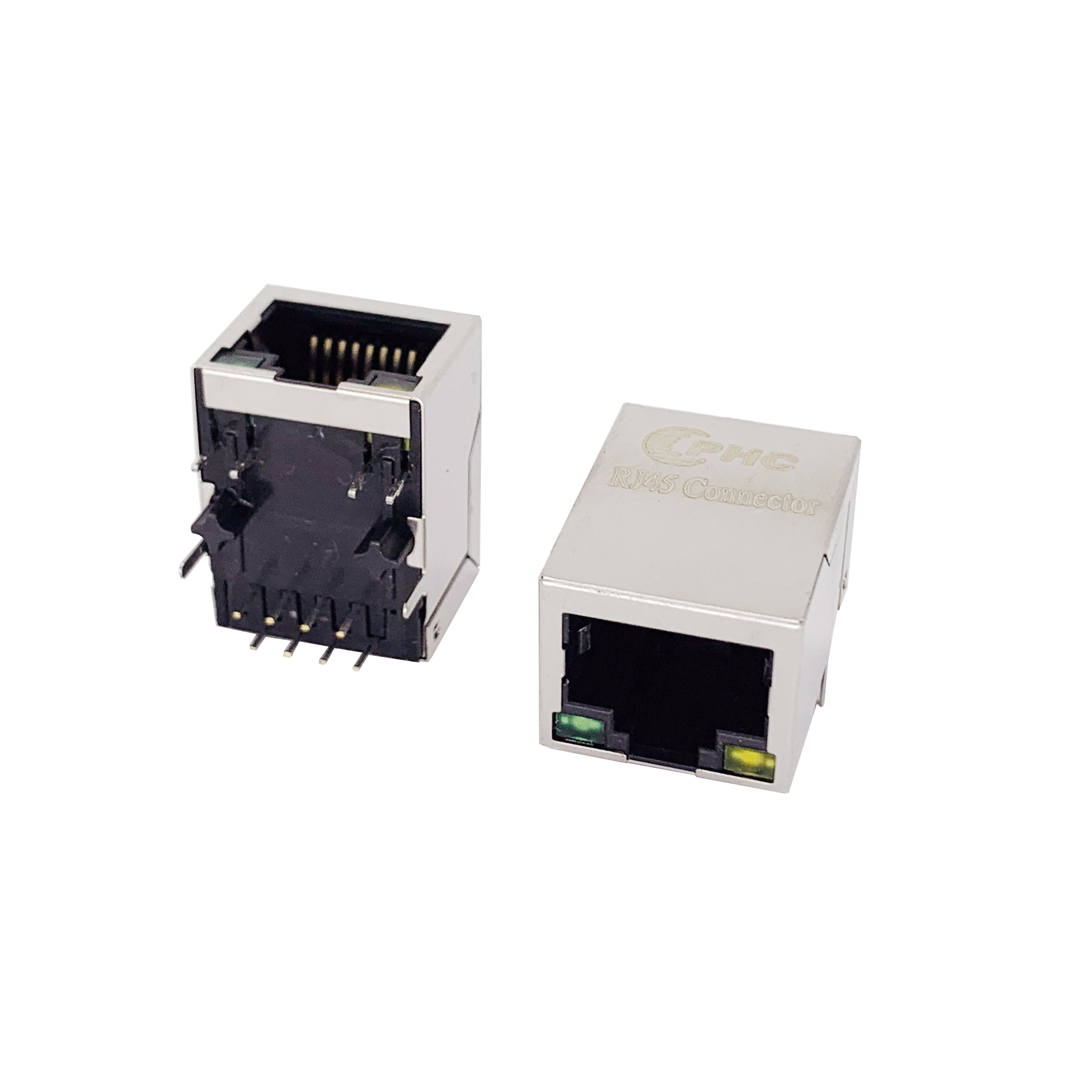

Metal Shielded Magnetic Megabit POE RJ45 Connector 0



  1. When will you ship the goods out if i send payment now?
    Usually ,We will delivery out them 2-3 Week later after payment received.if the PO is very big ,we need more time to produce .

2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.

3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms etc ,then we ship to you.
