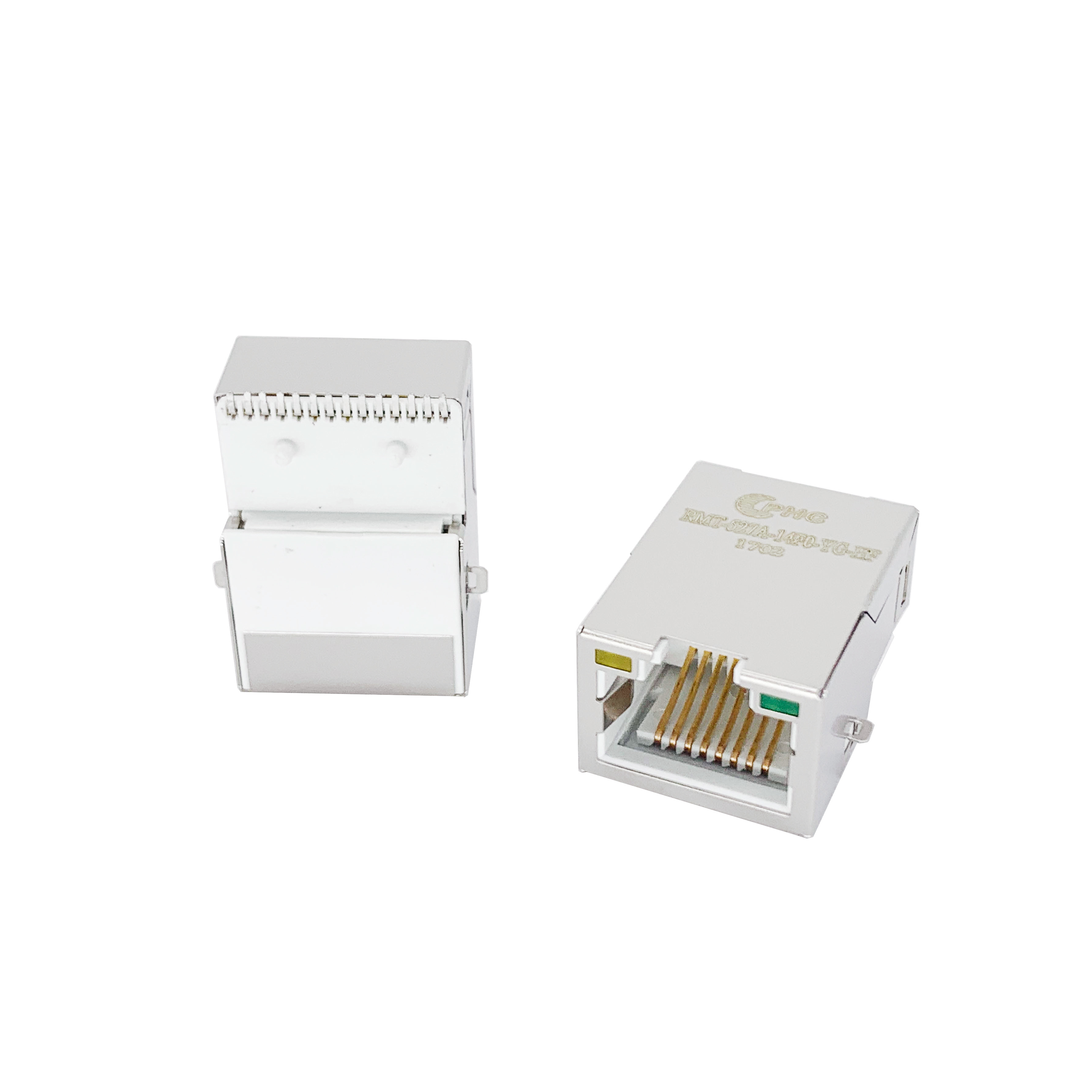

UL94V0 LCP Thermoplastic Female RJ45 Modular Jack

Basic Information
Place of Origin: China
Brand Name: PHCONN
Certification: UL,ROHS,REACH
Model Number: RMT-100S-02A
Minimum Order Quantity: 1000 PCS
Price: Negotiated price
Packaging Details: Tape wrapping
Delivery Time: 25 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000pcs/3 weeks
Detail Information
Gender: Female Type: Factory Manufacturer
Application: PCB,Audio & Video,networking,Telecom,Signal Color: Black/White/OEM
Material: Phosphor Bronze Pin: 8pin
Insulation Resistance: 1000 Megohms Min @ 500 Vdc Voltage Rating: 125 VAC RMS
High Light:

Female RJ45 Modular Jack


LCP Thermoplastic RJ45 Modular Jack


UL94V0 rj45 female jack

Product Description

Length=21.6mm sunk PCB, SMT with 100M/1000M transformer



. Compliant with IEEE802.3af standard including 350mH OCL with 11mA DC Bias

. Intergrated Mag-modular design provides higher reliabilityand conserves minimizing PCB space

. Housing: Thermoplastic LCP UL94V0 rated,Black

. Contact :Phosphor Bronze C5191,Gold plated on content area 6u" Min

. Input Terminal : B rass(C2680)

. Metal shielding:Copper alloy with Nickel plated(C2680),

. Different color of LEDs option available

. Operating temperature: 0 C to +75 C

. Resistance to soldering heat:255for 5seconds,

and only for reflow soldering process.


Electrical Specifications: (25 C)

1. Turns Ratio:

TX & Rx= 1:1±5%

2. Insertion Loss:

@1~100MHz : -1.0dB Max

3. Return Loss:

@1~10MHz : -20dB Min

@30MHz : -16dB Min

@ 60~80MHz : -12dB Min

4. Common Mode Rejection:

@1~50MHz: -30dB Min

@50~100MHz: -20dB Min

5. Crosstalk:

@30~60MHz : -35dB Min

@60~100MHz : -30dB Min

6. OCL: @100KHz, 0.1V

11mADC : 350uH Min

7. Hi-Pot : 2250VDC, 1mA, 1Sec

UL94V0 LCP Thermoplastic Female RJ45 Modular Jack 0


1.When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 5-7 days later after payment recevied.if the PO is very big ,we need more time to produce .
2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.
3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect ,then we ship to you

Notes: Free sample is available !
If you need any products, please kindly send us your drawings or sample for quotation.Any inquiry and requirement, pls feel free to contact us at any time. We will support you the best reliable products. And we do not only provide the connectors for you, but also support the one-stop shoping service.
