1X1 Gigabit Female Magnetic RJ45 Jack With Transformer

Basic Information
Place of Origin: GuangDong
Brand Name: PHCONN
Certification: IS09001-2008
Model Number: 1051-208011
Minimum Order Quantity: 500pcs
Price: 0.15~0.5 USD/PCS
Packaging Details: 70 pcs in 1 tray , 36 tray in 1 carton
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P/PayPal
Supply Ability: 5,000,000pcs/Month
Detail Information
Size: 21.35*15.9*13.5 Plastic: PBT With 15% - 30% Glass
Terminal: Phosphorus Copper Speed: 100M
Application: IP Camer , DVR , TV , SET BOX , Etc Mounting Type: Thru-hole
Series: Ethernet Connector Voltage Rating: 120 - 150V AC
High Light:

1X1 Magnetic RJ45 Jack


Gigabit Magnetic RJ45 Jack


Tab Down RJ45 Modular Jack

Product Description

1X1 Gigabit Female With Transformer And Magnetic RJ45 Jack





10/100/1000 RJ45 single prot (1x1) Tab-down with Leds.Integrated magnetics connector(ICM),

designed to support applications, Such as Network Interface Cards(NIC),Lan-on Motherboard (LOM), and PC applications.



Features and Benefits :


* Single port (1x1) tab-down RJ45 with internal magnetics.

* RoHS-6 peak wave solder temperature rating 260 0C.

* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

* Internal magnetics are 100% electrically tested for HI-POT and functionality.




1. voltage Rating :125 val
2. Insnlation Resiitance : 500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60 / hz1min

1. Operating :750  cycles min


1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v - 0)
2. Contact Wire : Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating : 3u inch6u inch150u inch30u inch50u inch


1. Working Temeperature :-20℃to 75℃
2. Storage Temeperature :-45℃to 85℃

Mates with modular plug conforming to FCC part 68 , subpart F .

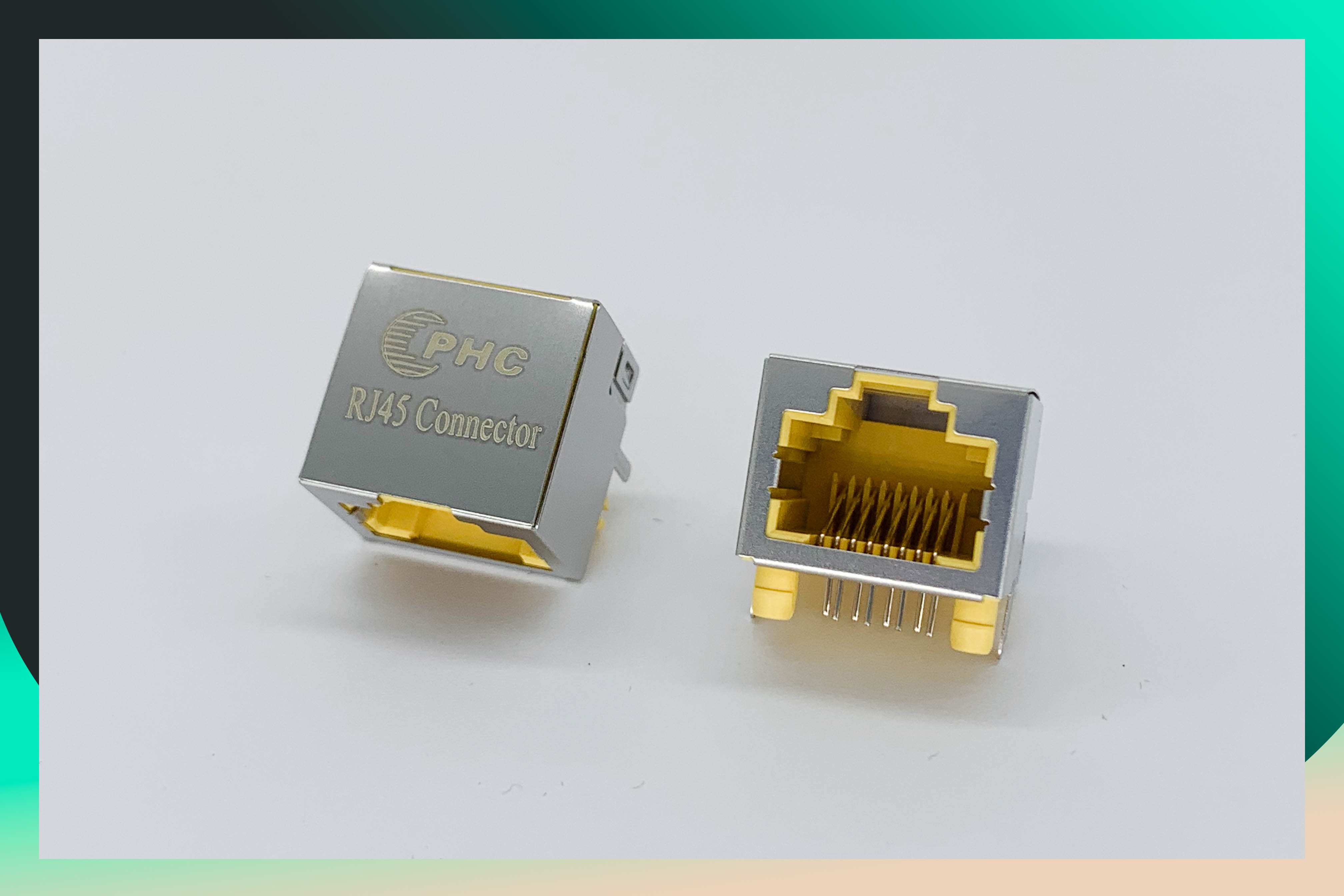

1X1 Gigabit Female Magnetic RJ45 Jack With Transformer 0



Why Choose PengHui



Quality :


World’s Leader supplier of Integrated RJ45 Connector and PCB connector


Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .


1.  Manufactured under strict controls .

2.  ISO 9001 : 2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM  for PULSE

7. Active Environmental policy

8. Every module  tested 3times  ( not just batch tested )



Unit Price


Charge only 35% ~ 60% of Pulse ,(Midcom) , Bothhand Belfuse, Tyco, Halo,....Etc


Except the plating ,All the step are doing by ourself. So we can control the cost

PHC have more than 30 units automation equipments to product as possible

PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong


Design&Technical strength


We have many more than 20years experience in connector industry engineer can support your new project. Design a new tooling time:30-45 workdays



PHC Patented product in China

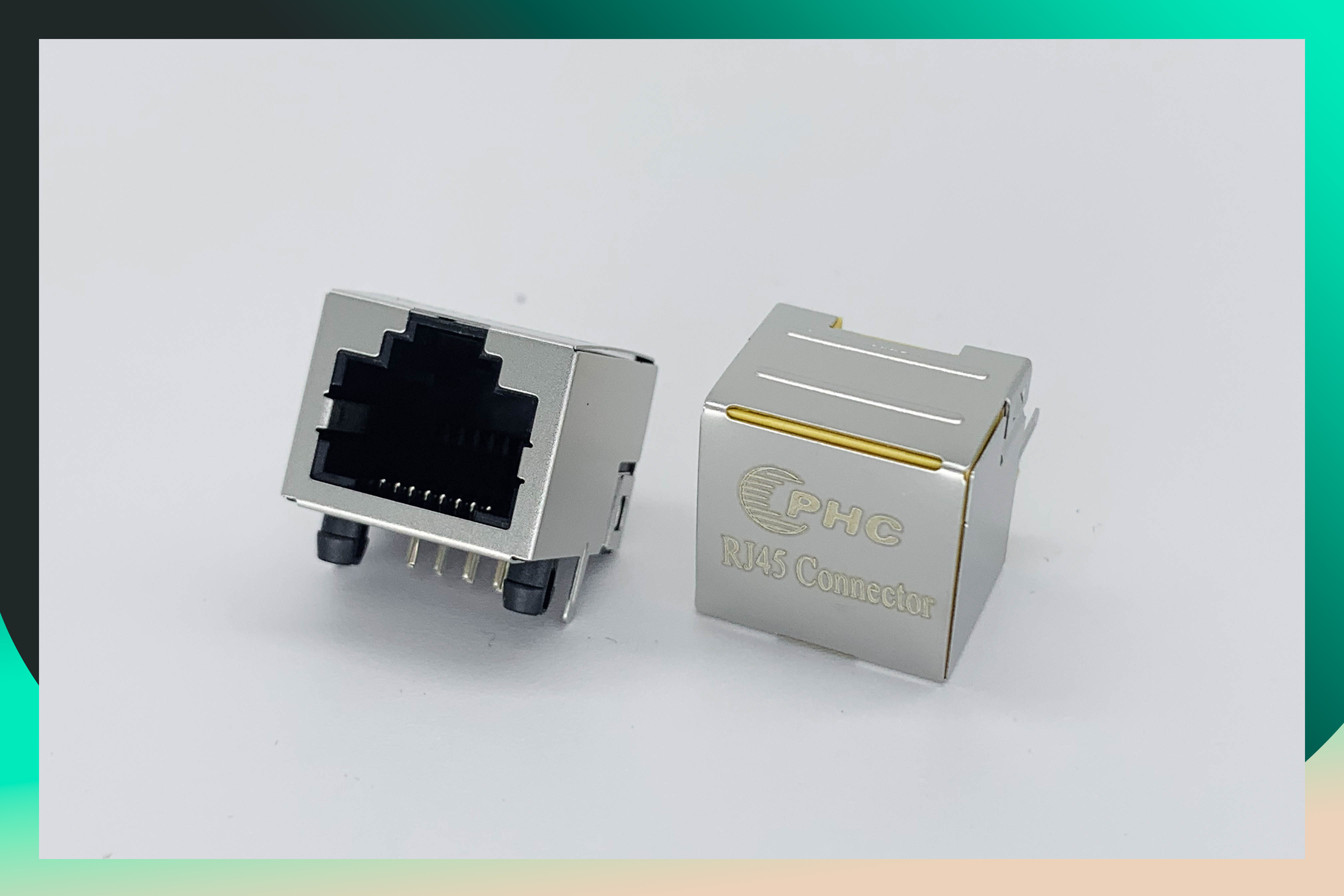

1X1 Gigabit Female Magnetic RJ45 Jack With Transformer 1



Lead Time


With large Popularity of 450 Workers distributed in 3 subsidiary corporations , PHC can offer the fastest Lead time , and the particular case is according to the situation.






3-4 Weeks



5-6 Weeks






PHC Offer good pre-sales & after-sales service & Strong technical support


1. New Project : Strong technical and ideal support your new design

2. Existing projects : Try to help customer to save the cost to offer the good quality product and   save time.

3. Free Samples : 3-5 PCS of each part number

4. Shipping Fee : We can get 80% off from DHL / UPS / TNT / FedEx , keeping safe and fast .

5. Customer complaint : 24-48 hours reply 8D report

6. Warranty : 24 months ( Merchandise are promised to be promptly returned , replacement , or repair kits if customers are not satisfied)



Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions


                                                                                                    -------------  PHC  Sales & Support Team
