Angled Shielded Modular POE Magnetic RJ45 Jack

Basic Information
Place of Origin: China
Brand Name: PHCONN
Certification: UL,ROHS,REACH,ISO 9001
Model Number: RMU-08A8-F6-GY
Minimum Order Quantity: No MOQ
Price: negotiate price
Packaging Details: Vacuum tray packaging
Delivery Time: 3-15 workdays
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10000pcs/day
Detail Information
Name: Magnetic RJ45 Jack Application: PCB, Audio , Data Link
Gender: Modular Jack Material: Phosphor Bronze
Pin: 6/8/10 Pins Insulation Resistance: 1000 Megohms Min @ 500 Vdc
Contact Material: Phosphor Bronze 0.46mm Sample: Welcome Ask Sample For Testing
High Light:

POE Magnetic RJ45 Jack

,

Modular Magnetic RJ45 Jack

,

Angled Shielded RJ45 Modular Jack


Product Description

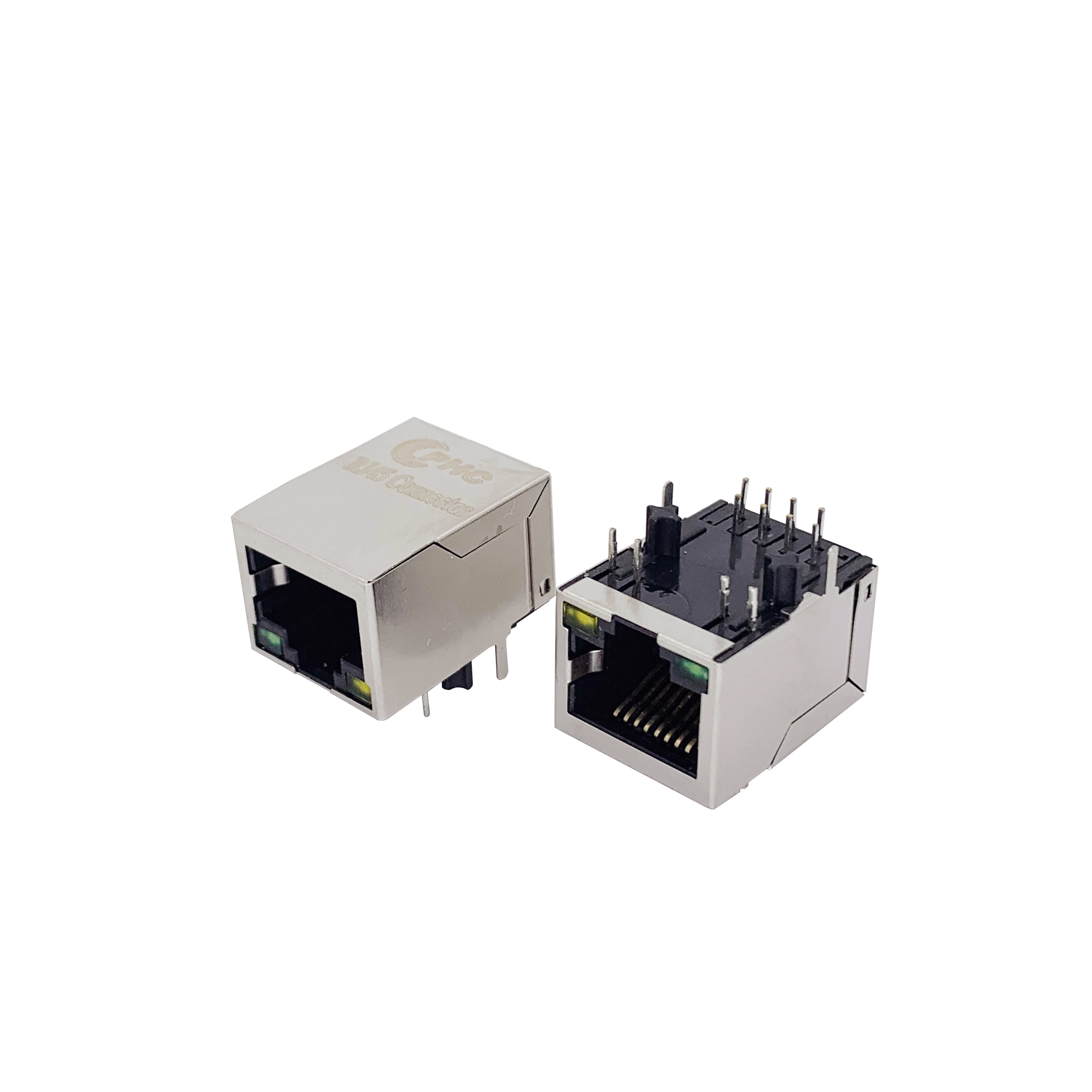

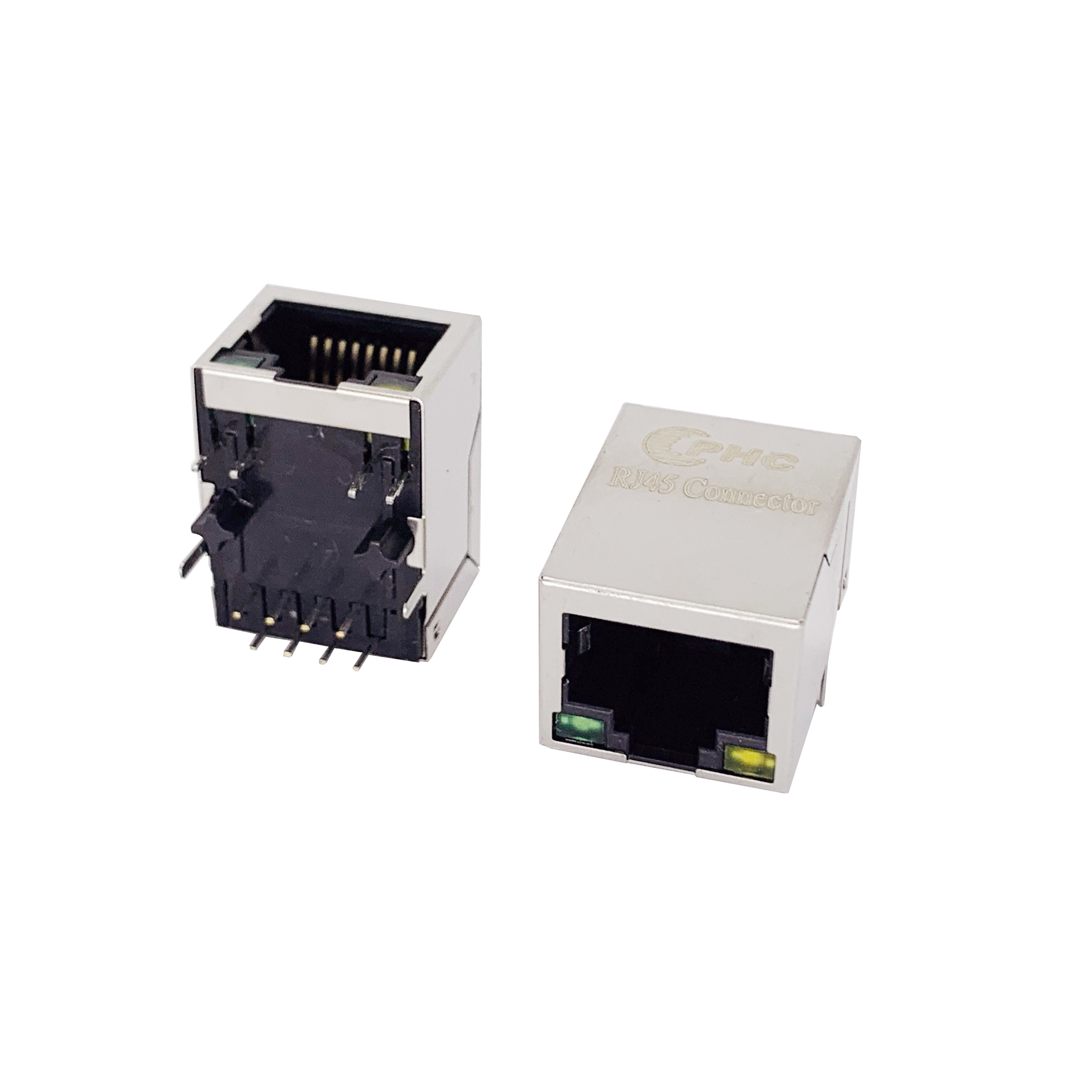

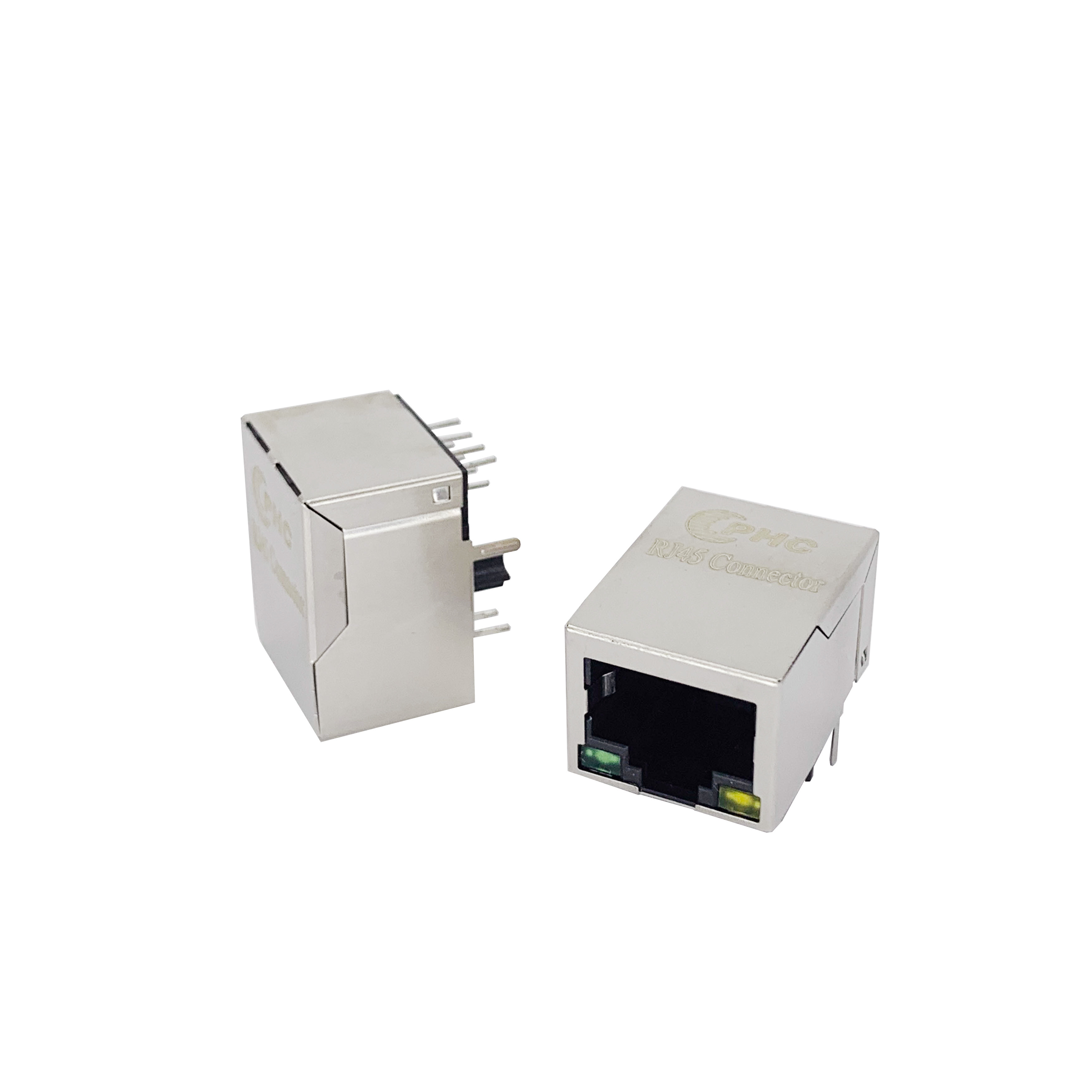

Angled Shielded Modular POE Magnetic RJ45 Jack

Product Description:



RJ45 is a type of connector commonly used for Ethernet networking. It looks similar to a telephone jack, but is slightly wider. Since Ethernet cables have an RJ45 connector on each end, Ethernet cables are sometimes also called RJ45 cables.

The "RJ" in RJ45 stands for "registered jack," since it is a standardized networking interface. The "45" simply refers to the number of the interface standard. Each RJ45 connector has eight pins, which means an RJ45 cable contains eight separate wires. If you look closely at the end of an
Ethernet cable, you can actually see the eight wires, which are each a different color. Four of them are solid colors, while the other four are striped.





Part Number
PHCONN RJ45+USB
Brand
PHCONN/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Up
Filter
Without Filter
LED Option
With LED
LED Color
Yellow & Green
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000/10G BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
Without Board Lock
Housing Material 
PA66
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0



Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Quality
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•PHCONN Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…

Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements

PHCONN Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery, And Service
• PHCONN Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services



Workflow:

Angled Shielded Modular POE Magnetic RJ45 Jack 0
