6P6C 8P8C UTP 180 Degree RJ11 RJ45 Tool Less Keystone Jack

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 180 Degree RJ11 Jack
Minimum Order Quantity: 500 PCS
Price: 1.6~3.0 USD/PCS
Packaging Details: 50 pcs in 1 tray,10 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time: 3-30 work days
Payment Terms: T/T, L/C, D/A, D/P, PAYPAL
Supply Ability: 2,000,000pcs/Month
Detail Information
Type: Factory Manufacturer Gender: Male/Female
Material: ABS/PC/METAL,copper Color: Black/White/OEM
Connector Type: RJ45 Connectors Plating: Nickel,Tin
Shielding: Shielded Contact Resistance: 30 MΩmax
High Light:

RJ45 Tool Less Keystone Jack


6P6C Tool Less Keystone Jack


utp rj45 toolless keystone jack

Product Description


6P6C 180 Degree Rj11 Rj45 Tool-Less Keystone Jack 8p8c Utp




1. The product meets the standards of TIA/EIA568-C.2 and ISO/IEC1180-2002 ed2.0.

2. It adopts cast aluminum alloy casing, and the full shielding design greatly improves the shielding performance and effectively prevents EMI (electromagnetic interference).

3. The contact reed and IDC terminal are all plated with tin phosphor bronze, the bottom layer is plated with 150u Inch, and the outer layer is plated with 50u Inch, which improves the contact performance and transmission performance of the module.

4. The unique oblique 45 degree IDC free line crimping design, the termination is firm and the construction is easier.

5. Mechanical properties: insertion force 350 g; pull-out force 150g, plug-in cycle >1050 times, termination >350 times.

6. Electrical performance: contact resistance <4.3 mΩ; insulation resistance > 500mΩ, lead current: 1.5A.

7. Compatible with all YUEDAO 86 type panels and 19-inch unshielded empty shelves.




1. ISO/IEC 11801-202 ed2.0

2. EN50173-2007 Class F(600MHz)

3. EN 55022 Class B& EN 50082-1(EMC)

4. ANSI/TIA 568-C.2



Contact Phosphor Bronze, 6u-inch gold flashed unless specified
Housing Thermoplastic LCP UL94V-0 rated
Operating Temperature 0℃ --70℃
Storage temperature -40℃--85℃
Turns Ratio Tx & Rx+1:1±5%
Insertion Loss 1-30MHz:-1.0dB Max
Return Loss:1-30MHz -16dB Min; 60-80MHz:12dB Min
Common Mode Rejection 1-100MHz:-30dB Min;200MHz:-20dB Min
Crosstalk 1-100MHz:-30dB Min
OCL 100KHz,0.1V,8MADC:350uH Min
Hi-Pot 1500VAC,1mA,1Sec

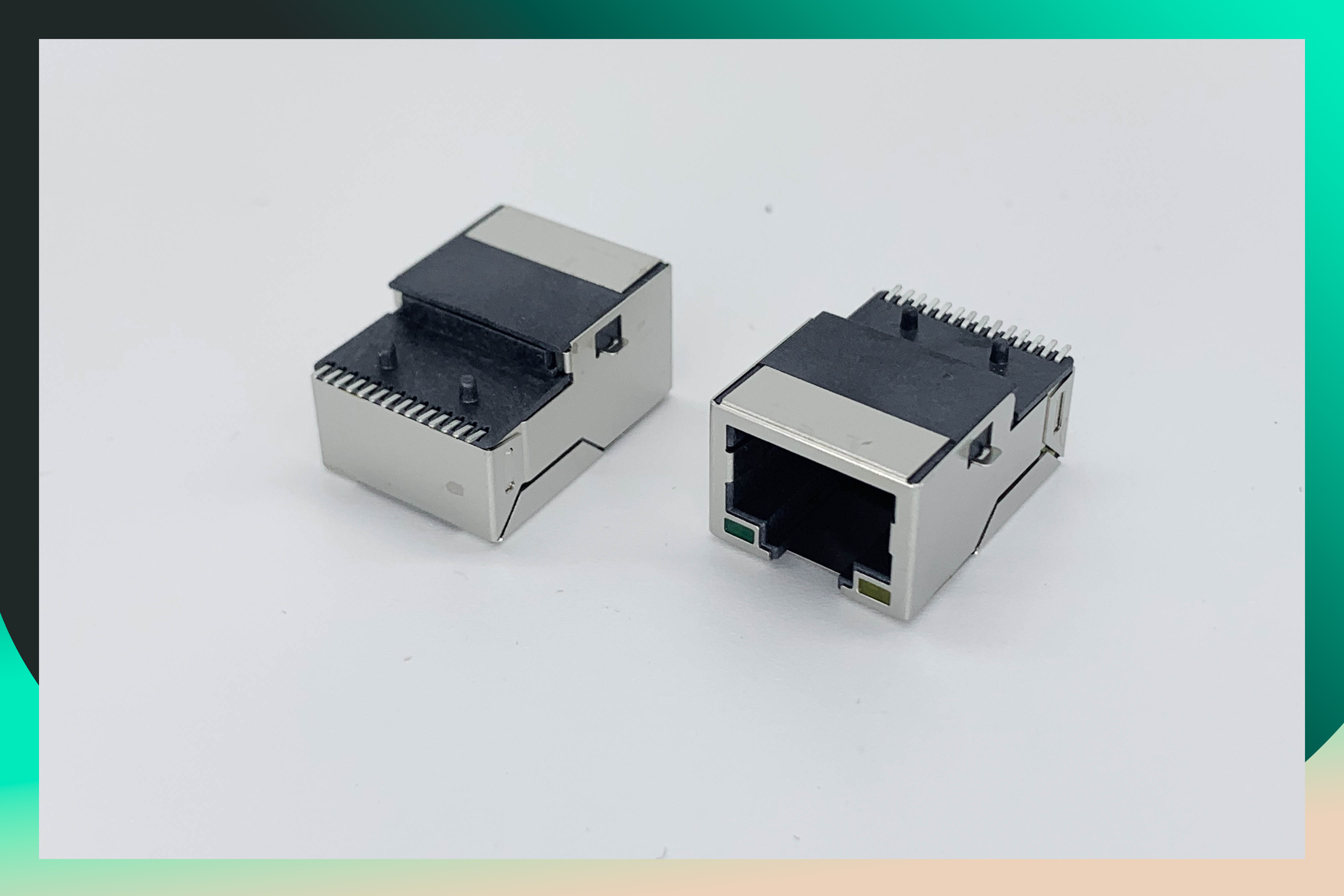

 6P6C 8P8C UTP 180 Degree RJ11 RJ45 Tool Less Keystone Jack 0

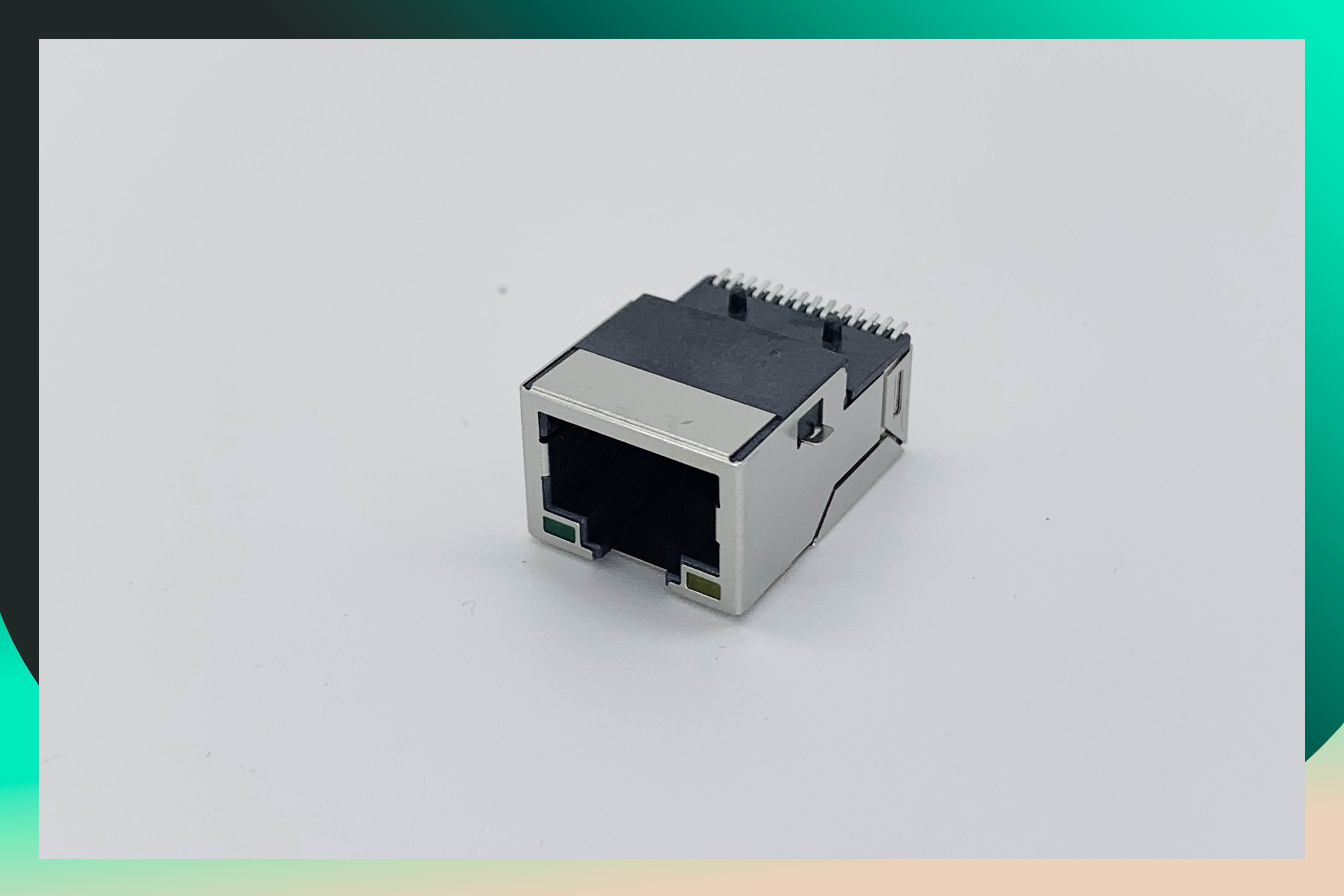

6P6C 8P8C UTP 180 Degree RJ11 RJ45 Tool Less Keystone Jack 1


RJ45 Without Transformer series

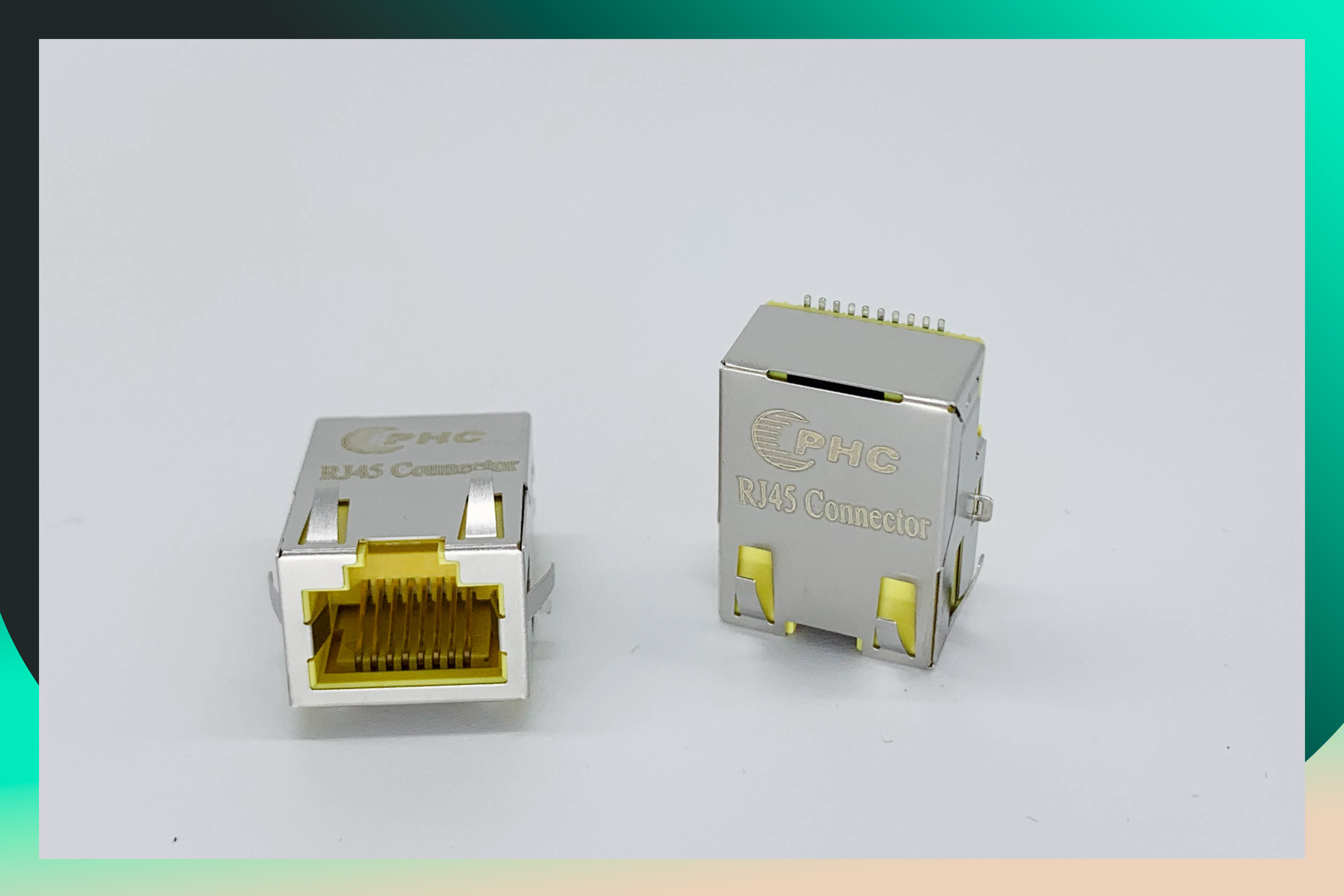

6P6C 8P8C UTP 180 Degree RJ11 RJ45 Tool Less Keystone Jack 2
