| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PHCONN |
| Certification: | UL |
| Model Number: | 1000MRMA21.6 |
| Minimum Order Quantity: | 100 pcs |
| Price: | 1.1-1.5 USD |
| Packaging Details: | Blister box packaging products, carton packaging Blister box |
| Delivery Time: | 5-15 work days |
| Payment Terms: | L/C, T/T, D/P |
| Type: | Multi Type | Gender: | Female |
|---|---|---|---|
| Application: | PCB,Audio & Video,Communication,Panel Mount,PRINTER | Product Name: | RJ45 Cat5e Cat6 Cat6a Metal Boot Commscope Keystone Jack |
| Ports: | 8 Ports | Transmission Rate: | 10/100Mbps |
| Durability: | 750 CYCLES MIN | Insulation Resistance: | 500 MEGOHMS MIN @500V DC |
| High Light: | 100Base-T RJ45 Female Connector,1000Base-T RJ45 Female Connector,8P8C RJ45 Female Jack |
||

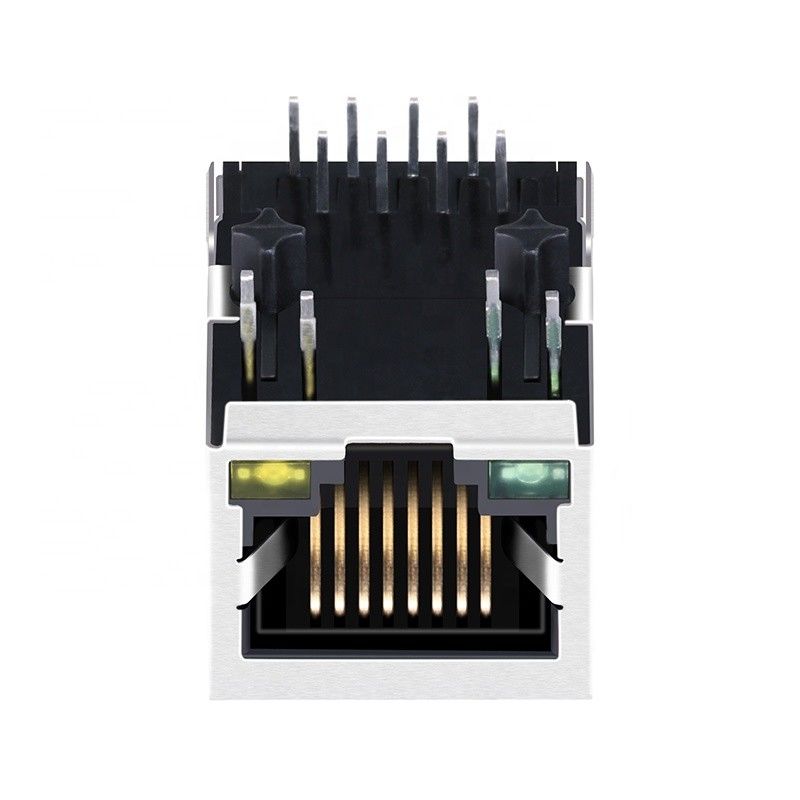

1x1 Port Length 21.6mm 100/1000 Base-T 8P8C RJ45 Female Connector
|
ELECTRICAL
|
|
|
CURRENT RATING: |
1.5 AMPS |
|
VOLTAGE RATING: |
125 VAC RMS |
|
INSULATION RESISTANCE: |
1000 MΩ Min. @ 500V DC |
|
WITHSTAND VOLTAGE: |
1000 V AC OR 1500V DC RMS @0.5mA 50Hz / 60Hz 1 Minute |
|
CONTACT RESISTANCE: |
1XN ROUND PIN 35 mΩ Max./ 1XN FLAT PIN 45 mΩMax./ 2XN ROUND PIN 40 mΩ Max./ 2XN FLAT PIN 50 mΩMax. |
|
MECHANICA
|
|
|
MATING/UNMATING FORCE: |
22N / 2.27kg Max |
|
RETENTION STRENGTH: |
57.83N Min./ 30N Min. |
|
DURABILITY: |
750 MATING/UNMATING CYCLES Min. |
|
ENVIRONMENTAL |
|
|
OPERATION TEMPERATURE: |
-40℃~+85℃ / -20℃~+70℃ |
|
STORAGE TEMPERATURE: |
-10℃~+40℃ RELATIVE HUMIDITY<80% |
|
MATERIAL
|
|
|
HOUSING: |
PBT/PA46/PA66/ABS/PC, UL94V-0 OR UL94V-2 |
|
TERMINAL: |
DIAMETER 0.46mm/THICKNESS 0.35mm PHOSPHOR BRONZE,SELECTIVE GOLD PLATING OVER NICKEL |
|
GOLD PLATING: |
Fu inch , G/F inch, 3u inch, 6u inch,15u inch, 30u inch, 50u inch |
