| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001 : 2008 , SGS , RoHs , UL |
| Model Number: | 1051-208011 |
| Minimum Order Quantity: | 500 PCS |
| Price: | USD 0.2 ~ 0.5 PCS |
| Packaging Details: | 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; |
| Delivery Time: | 7 - 10 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5,000,000 PCS / Month |
| Gold-plated:: | Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" | Application: | TV , Set Box , IP CAMER , DVR, VOIP , Computer |
|---|---|---|---|
| PCB Mount Angle: | Side Enter | Main Products: | RJ45 Modular Jack , USB Connector , Pin Header And Female Header |
| High Quality: | Rj45 Pcb Connector | OEM/ODM: | OEM Service Offered Design Service Offered Buyer Label Offered |
| High Light: | rj45 network port,rj45 modular connector |
||

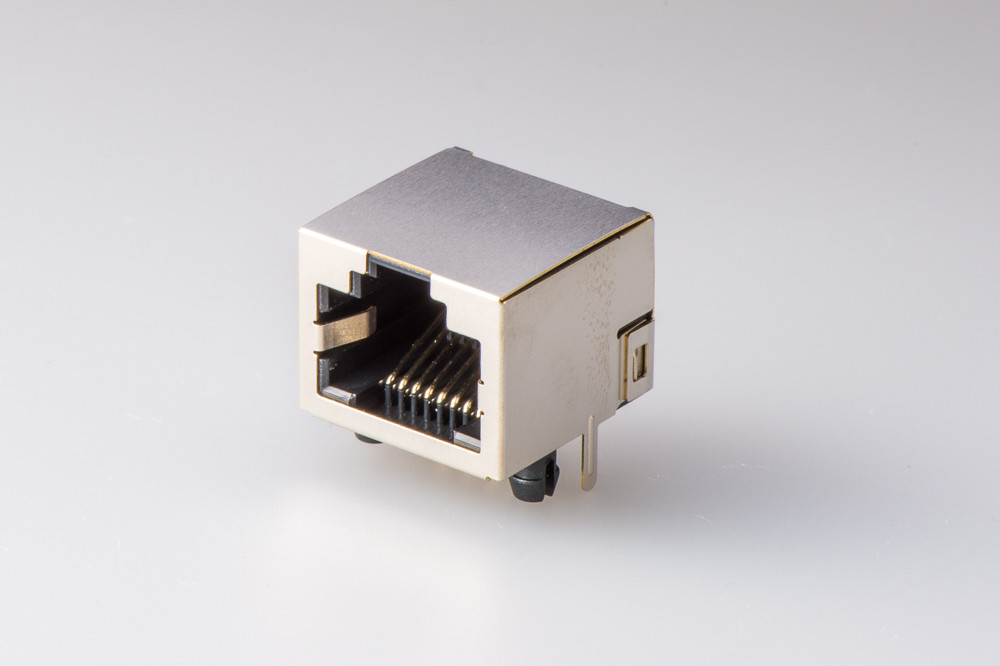

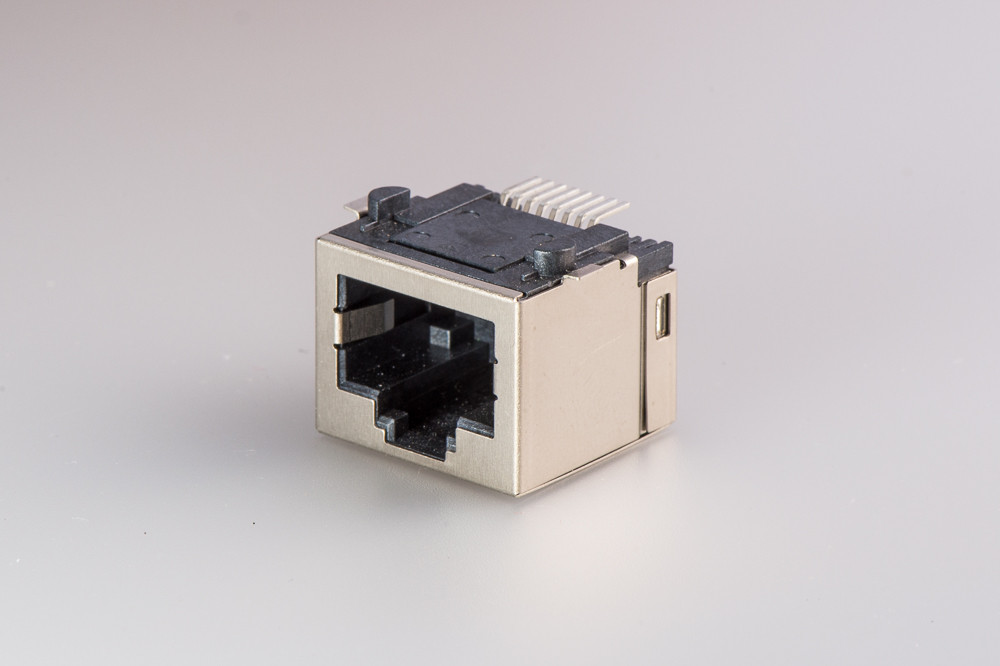

RJ45 Modular Jack 1 X 1 Without Led And Emi Tab-Up Shielded 90 Degree
Specifications
|
Connector Type |
Jack |
|
Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
|
Number of Ports |
1 |
|
Number of Rows |
1 |
|
Mounting Type |
Through Hole |
|
Orientation |
90° Angle (Right) |
|
Termination |
Solder |
|
Shielding |
Shielded, EMI Finger |
|
Ratings |
Cat3 |
|
Features |
Board Lock |
|
LED Color |
No |
|
Tab Direction |
Up |
|
Contact Material |
Copper Alloy |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
Flash |
|
Housing Material |
Thermoplastic |
Eceatrical
1. voltage Rating:125 val
2. Insnlation Resiitance:500M min
3. Withstanding Voltage :AC 1000vxRMS50HZ or 60/hz1min
Mechanical
1. Operating:750 cycles min
Materical
1. Housing : PBT(vl94v-0) RA66(vl94v-0) RA46(vl94v-0)
2. Contact Wire :Diameter 0.45mm phosphor bronze gold plating over nickel
3. Gold plating :3u inch6u inch150u inch30u inch50u inch
Environmental
1. Working Temeperature:-20℃to 75℃
2. Storage Temeperature:-45℃to 85℃
Mates with modular plug conforming to FCC part 68,subpart F.
Drawing
90 Degree RJ45 Connector Without Led , RJ45 Modular Jack 1 X 1 Emi Tab-Up Shielded
( PHC )
Why Choose PengHui
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .
|
Manufactured under strict controls |
RoHS compliance |
|
ISO 9001:2008 |
OEM for PULSE |
|
UL Certification |
Active Environmental policy |
|
Reach Cetitifaction |
Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
| All the step are doing by ourself. So we can control the cost |
| PHC have more than 30 units automation equipments to product as possible |
| PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong . |
| With large scale of production lines, we can reach to cost reduction at the most extent |
Production&Testing
| PHC have more than 30 units automation equipments to product as possible |
| PHC Every Magnetic RJ45 tested 3times (not just batch tested) |
|
PHC Every SMT part used Automation testing and packing. |
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
| New Project: Strong technical and ideal support your new design |
|
Existing projects: Try to help customer to save the cost to offer the good quality product and save time. |
| Free Samples: 3-5 PCS of each part number. |
| Shipping Fee : We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast. |
| Customer complaint: 24-48 hours reply 8D report. |
|
Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair kits , if customers are not satisfied) |
