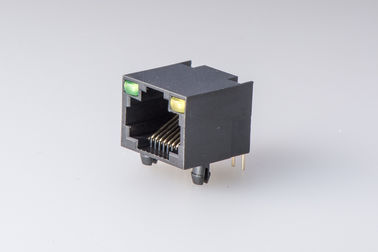

Full Plastic RJ45 Single Port 8P8C With LED Gold Plated Network

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: 1051-208006
Minimum Order Quantity: 500 PCS
Price: USD 0.15 ~ 0.5 PCS
Packaging Details: 70 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: PCB
Gender: Female Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket
Project Application: Networking Solutions OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
High Light:

rj45 connector jack

,

rj45 network port


Product Description

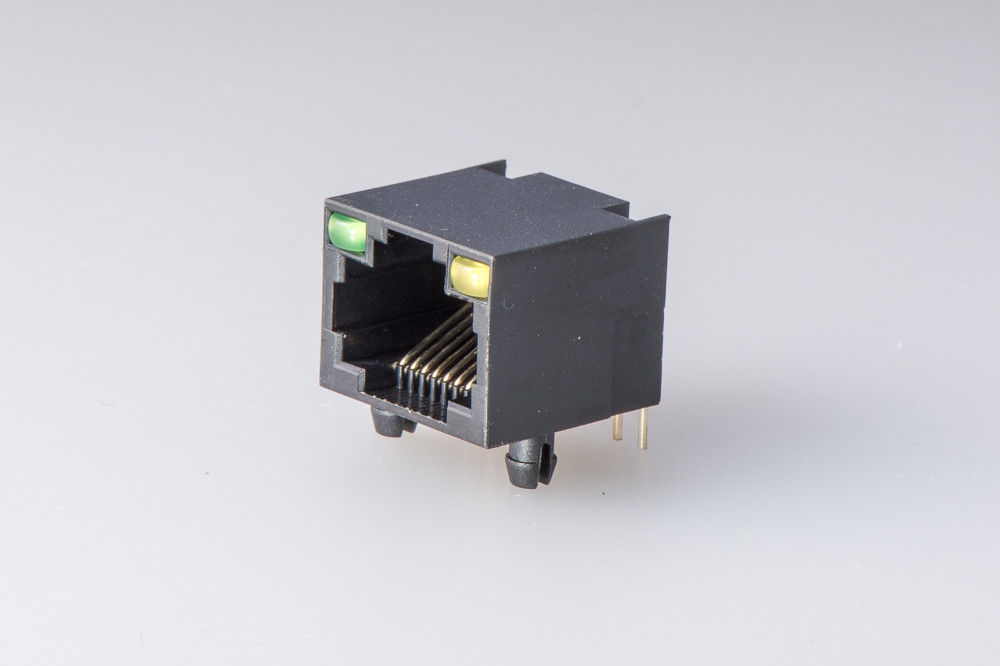

Full Plastic RJ45 Modular Jack 8P8C Single Port  With LED Gold Plated Network​





Spectifications



  Series

  Connectors, Interconnects
  Connector Type

  RJ45 Modular Jack

  Mounting Type

  Thru-Hole

  Orientation

  8P8C Side Enter

  Termination

  Solder

  LED Color

  Green / Yellow

  Shielding

 No Shield





NOTES:



ELECTRICAL:


1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
    RESISTANCE:1000V AC RMS 50Hz. 1min.


MECHNICAL:


1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.


ENVIRONMENTAL:


1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)


MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
