| Place of Origin: | GuangDong, China |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | RMS-171B-10H6-GY |
| Minimum Order Quantity: | 500 PCS |
| Price: | USD 1.6 ~ 3.0 PCS |
| Packaging Details: | 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton |
| Delivery Time: | 3-30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, PAYPAL |
| Supply Ability: | 2,000,000pcs/Month |
| Port: | Single | Shield Material: | Brass Alloy |
|---|---|---|---|
| Plastic: | PBT | Terminal: | Phosphor Copper |
| Application: | 1 Port 10 / 100 / 1000 Base - T | Led: | Yellow , Green , Red , Blue Option |
| Main Products: | RJ45, Side Entry Low Profile Rj45 Jack | Withstanding Voltage: | AC 1500V RMS 50Hz Or 60 Hz 1 Min |
| Highlight: | smt rj45 connector,rj45 pcb connector,single port rj45 magnetic jack |
||

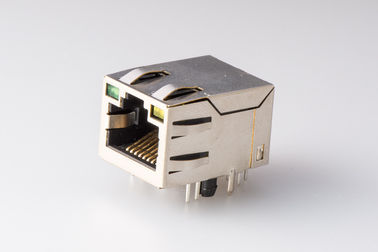

10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules
Spectifications
Electrical
| 1.Current Rating | 1.5 amps |
| 2.Voltage Rating | 125vac |
| 3.Insulation Resistance | 500 MΩmin |
| 4.Contact Resistance | 30 MΩmax |
| 5.Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
Mechanical
|
1.Insertion Force |
2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g 8 CONTACTS….900g 10 CONTACTS....1050g |
|
2.Retention Strength |
7.7KG.F min between jack and plug |
|
3.Durability |
750 mating cycles min |
Material
|
1.Housing |
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) |
|
2.Contact Wire |
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel |
|
3.Shield |
0.20~0.25mm thickness brass with tin plated |
|
4.Gold Plating |
1u inch,3u inch,6u inch,15u inch,30u inch,50u inch |
|
6.RoHS peak wave solder |
RoHS peak wave solder temperature rating 240°C±5°C |
LED Specification
| Standard LED Color: | LED Wavelength: | Forward (V MAX): | Typical (V TYP): | Luminous |
| Green | 560-580 nm | 2.5V | 2.1-2.2V | 9-25 MCD |
| Yellow | 580-610 nm | 2.5V | 2.1-2.2V | 9-30MCD |
| Orange | 580-610 nm | 2.5V | 2.1-2.2V | 50-100MCD |
Drawing
10 / 100 / 1000 Base - T RJ45 Jack Integrated Magnetic Connector Modules
Line Drawing
LED
Why Choose PengHui
Quality :
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .
All the step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Unit Price
Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong (HQ)
With large scale of production lines, we can reach to cost reduction at the most extent
Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.
|
Case.1 |
Stock |
25% |
|
Case.2 |
3-4 Weeks |
70% |
|
Case.3 |
5-6 Weeks |
5% |
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:3-5 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8. kits if customers are not satisfied)
Main Customers
Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
------------- PHC Sales & Support Team
