Plastic 4P4C / 6p6c / 8P8C RJ45 ModularJack Top Enter Female Single Port

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: top enter 4P4C/ 6p6c/ 8p8c RJ45 modular jack
Minimum Order Quantity: 500 PCS
Price: USD 0.1 ~ 0.5 PCS
Packaging Details: 70 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: PCB
Gender: Female Connector Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 With Transformer , Rj45 Socket
Project Application: Networking Solutions OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Enter: Top Enter Color: Balck ,bule Option
High Light:

rj45 network port

,

rj45 modular connector


Product Description

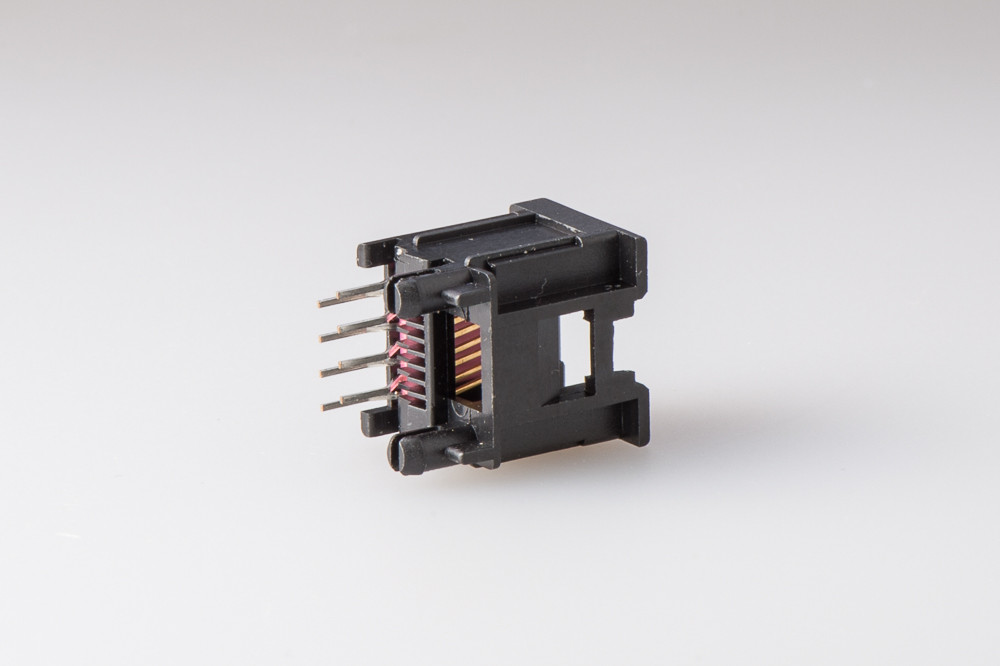

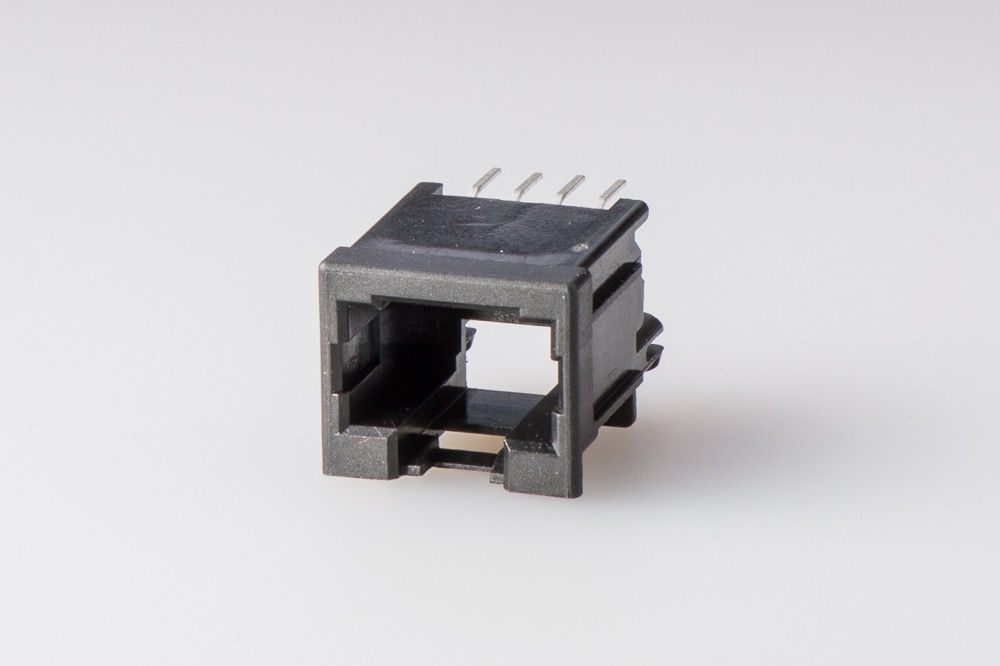

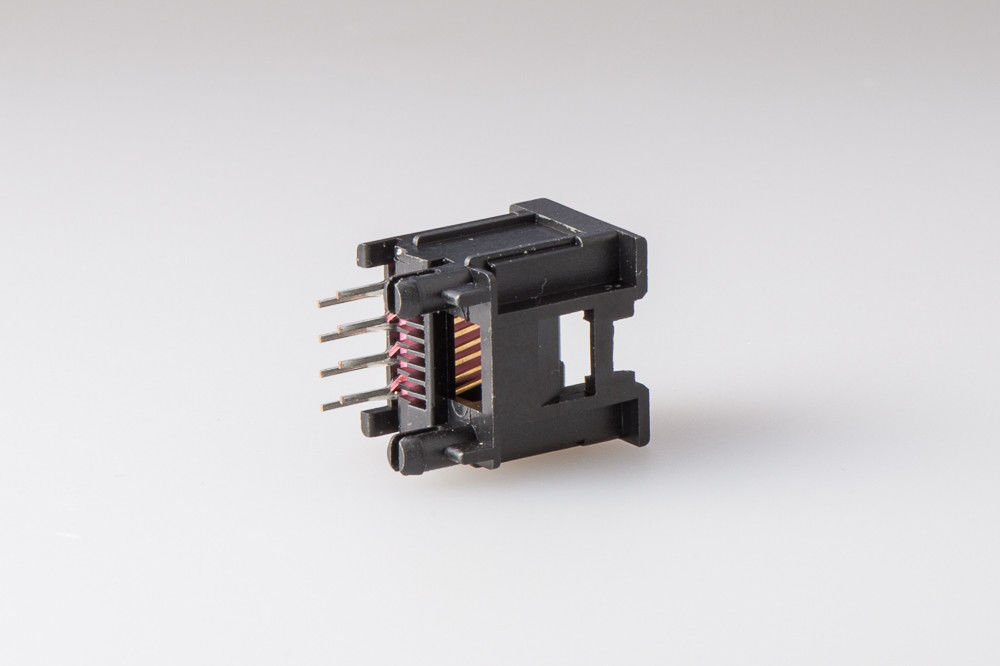

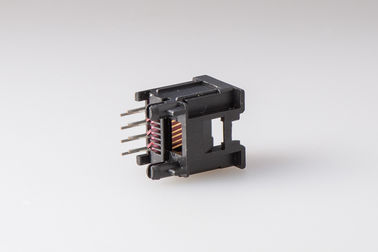

Plastic 4P4C/ 6p6c/ 8P8C RJ45 Modular jack Top Enter Female  Single Port


Spectifications


  Series

  Connectors, Interconnects
  Connector Type

  Jack

  Mounting Type

  Thru-Hole

  Orientation

  Side Enter

  Termination

  Solder

  LED Color

  No

  Shielding

  No Shield


NOTES:

ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
    RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:
1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

Plastic 4P4C/ 6p6c/ 8P8C RJ45 Modular jack Top Enter Female  Single Port
( PHC )


Plastic 4P4C /  6p6c /  8P8C RJ45 ModularJack Top Enter Female  Single Port 0
