| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001 : 2008 , SGS , RoHs |
| Model Number: | 1052-206012 |
| Minimum Order Quantity: | 500 PCS |
| Price: | USD 0.15 ~ 0.5 PCS |
| Packaging Details: | 70 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; |
| Delivery Time: | 7 - 10 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5,000,000 PCS / Month |
| Gold-plated:: | Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" | Application: | PCB |
|---|---|---|---|
| Patented NO: | 201520126620.x | Main Products: | Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket |
| OEM/ODM: | OEM Service Offered Design Service Offered Buyer Label Offered | Color: | Black, Yellow, Bule Option |
| High Light: | rj45 single port,multi-port rj45 |
||

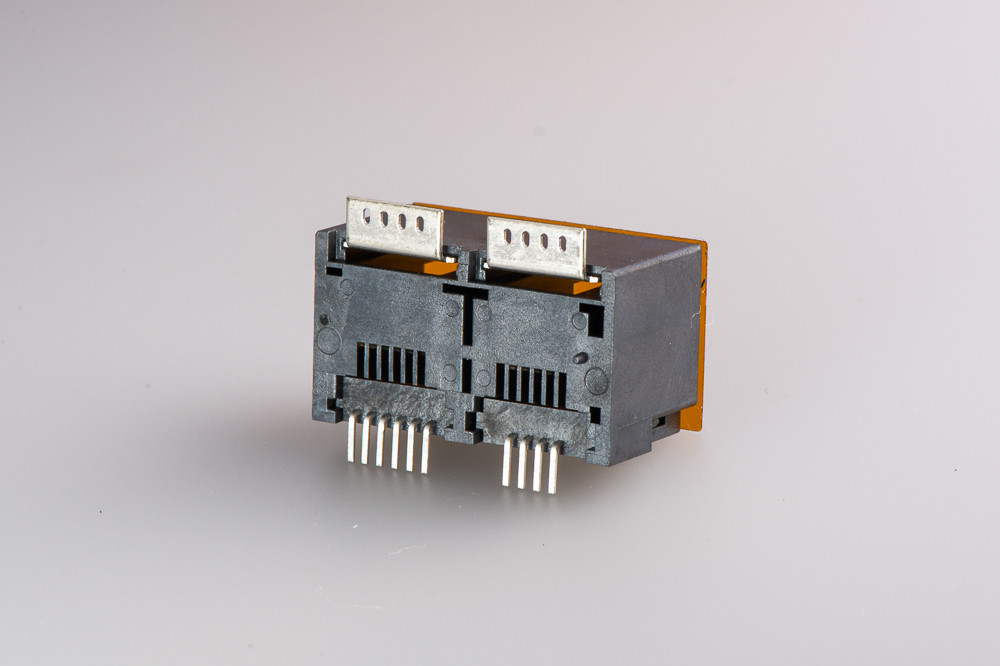

RJ11 Modular Jack 4P4C + 6P6CDouble Port SMT And Full Plast Female Connector
Spectifications
|
Series |
SMD RJ11 Female Jack |
| Connector Type |
RJ11 Female Connector |
|
Mounting Type |
Thru-Hole |
|
Orientation |
Top Enter |
|
Termination |
Solder |
|
LED Color |
Without |
|
Shielding |
No Shield |
Electrical
| 1.Current Rating | 1.5 amps |
| 2.Voltage Rating | 125vac |
| 3.Insulation Resistance | 500 MΩmin |
| 4.Contact Resistance | 30 MΩmax |
| 5.Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
Mechanical
|
1.Insertion Force |
2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g 8 CONTACTS….900g 10 CONTACTS....1050g |
|
2.Retention Strength |
7.7KG.F min between jack and plug |
|
3.Durability |
750 mating cycles min |
Material
|
1.Housing |
ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) |
|
2.Contact Wire |
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel |
|
3.Shield |
0.20~0.25mm thickness brass with tin plated |
|
4.Gold Plating |
1u inch,3u inch,6u inch,15u inch,30u inch,50u inch |
|
6.RoHS peak wave solder |
RoHS peak wave solder temperature rating 240°C±5°C |
Drawing
RJ11 RJ45 Modular Jack 4P4C + 6P6C Double Port SMT Female Connector and Full Plastic
( PHC )
Why Choose PengHui
Quality :
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing ,
packing .All the step are doing by ourself . So we can control the quality .
|
Manufactured under strict controls |
RoHS compliance |
|
ISO 9001:2008 |
OEM for PULSE |
|
UL Certification |
Active Environmental policy |
|
Reach Cetitifaction |
Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer
the fastest Lead time,and the particular case is according to the situation.
|
Case.1 |
Stock |
25% |
|
Case.2 |
3-4 Weeks |
70% |
|
Case.3 |
5-6 Weeks |
5% |
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support
your new project.Design a new tooling time : 30-45 workdays
PHC Patented product in China
Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
------------- PHC Sales & Support Team
