Silver USB Female Connector With One USB Interface Modular Jack And Shield Socket

Basic Information
Place of Origin: DongGuan
Brand Name: PHCONN
Certification: ISO 9001 :2008 , RoHs , SGS
Model Number: RB-017-W
Minimum Order Quantity: 500 PCS
Price: USD 0.7~1.5 PCS
Packaging Details: 50 pcs in 1 tray , 10 tray in 1 carton , which is 31.5*24*40 CM , 7.8 KGS (500pcs ) in 1 carton
Delivery Time: 10 - 25 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000pcs/Month
Detail Information
Part Number: RB-017-W Plastic: PBT
Orientation: 90 Degree , Side Enter Project Application: USB Connector , Networking Solutions
Terminal: Phosphor Copper Tab Direction: Tap Up,Tap Down
Sample: 5 PCS Gender: Female
High Light:

rj45 shielded connectors

,

surface mount rj45 jack


Product Description

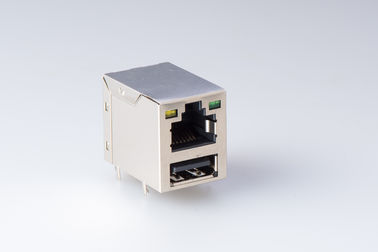

USB Female Connector With One USB Interface Modular Jack And Shield Socket





Specifications



Part Number

Manufacturer

Part Number

Manufacturer

Description

RB-017-W

RB-017-W

PHC

USB Female Connector With One USB Interface Modular Jack And Shield Socket



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 USB

Jack

Side Enter



Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

Yellow / Green

Shielded , EMI Finger





Material:



1. Housing Material: Glass Filled Polyester(UL94V-0),ABS.PBT,NYLON
2. Contact Material: Phosphor Bronze t=0.35mm.
3. Plating: Contact Area-Selectine Gold Plating.
4. Shield: Copper Alloy 0.20 Thickness Plating Ni.
5. LED: Option



Feature:


1. Reduce EMI Radiation, Improve EMI Performance.
2. Designed For Network Interface Card Application.
3. Designed To Meet IEEE802.3u Requirement.
4. Suitable for CAT 3, 5, 6 UTP cable or better


Electrical:



Current Rating 1.5 AMP
Voltage Rating 1.25 VAC
Insulation Resistance 500MΩMin
Withstanding Resistance 1000VAC RMS 50Hz or 60Hz 1 Minute
Contact Resistance 30mΩMax



Mechanical:



1. Durability:750 CYCLES MIN

2. PCB Rentention pre-solder:1LB MIN



Environmental:


1. Storage Temperature -40°C~80°C Relative Humidity <80%.
2. Opration Temperature 0°C~+70°C


Lead-free process,compliant RoHS





Drawing



Shielded RJ45 Female Connector With One USB Modular Jack And Network Socket



Silver USB Female Connector With One USB Interface Modular Jack And Shield Socket 0



LED



Silver USB Female Connector With One USB Interface Modular Jack And Shield Socket 1





Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1) New Project: Strong technical and ideal support your new design
2)Existing projects: Try to help customer to save the cost to offer the good quality product

and save time.
3) Free Samples:3-5 PCS of each part number
4) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5) Customer complaint:24-48 hours reply 8D report
6) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair kits if customers are not satisfied)





Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,

packing .All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM  for PULSE
7. Active Environmental policy
8. Every module  tested 3times  (not just batch tested)





Equipment





Silver USB Female Connector With One USB Interface Modular Jack And Shield Socket 2







Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
