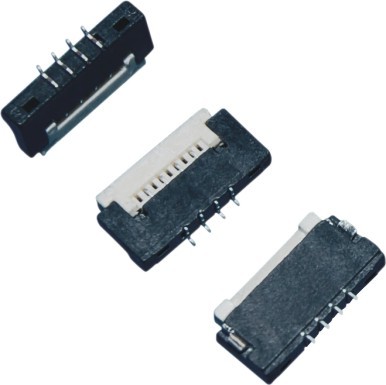

1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: Board to Board Connector
Minimum Order Quantity: 500 PCS
Price: 0.8~1.2 USD/PCS
Delivery Time: 3-15work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union,PAYPAL
Supply Ability: 3,000,000pcs/Month
Detail Information
Plating: Gold Flash , 1u" , 3u" , 6u" , 10u" Pitch Between: 1.0mm Pitch
Contact: Copper Alloy Type: FPC Connector
Color: White PCB Plating: 90 Degree
Connector Type: Board Mounting Mounted Height (mm): 1.5
High Light:

Fpc Connector 0.5mm Pitch

,

Board To Board Connector


Product Description



FPC Connector 1.0 mm Pitch 4 Pins H 1.5mm Up Contact ZIF Type Soldering




Specifications

Material:


1. Insulator:Glass-Reinforced Thermoplastic.UL94V-0  color :black
2. Contact:Copper Alloy
   Contact plating:Gold plating on contact Area. over Nickel underplating overall
3. Rohs Compliant
4. Durability:250cycles min



Elecrical:


1. Voltage Rating:30VAC.
2. CuRRENT rATING:0.5A
3. Contact Resistance:40 milliohms max
4. Dielectric with standing Volaage:500VAC min
5. Insulation Resistance 1000 Megaohas Min



Environmental:


1. Temperature Range:-40℃+85℃




Why Choose PengHui



Quality:

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.



1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM  for PULSE

7. Active Environmental policy

8. Every module  tested 3times  (not just batch tested)



1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 0




Unit Price


Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong
With large scale of production lines, we can reach to cost reduction at the most extent

Design &Technical strength


We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays




Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.


1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 1



                                                      part of terminals


Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.



Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%



Service

PHC Offer good pre-sales & after-sales service &Strong technical support



1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

8. kits if customers are not satisfied)





Automation product line



1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 2




Main Customers


1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 3               1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 4         1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 5

 1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 6              1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 7               1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 8
 1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 9      1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 10       1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 11


1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 12             1.0 mm Pitch FPC Connector 4 Pins H 1.5mm Up Contact ZIF Type Soldering 13




Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
