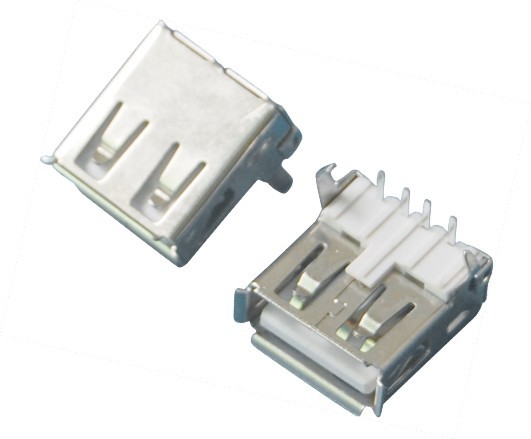

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1120-204005
Minimum Order Quantity: 500 PCS
Price: USD 0.06 ~ 0.1 PCS
Packaging Details: 100 pcs in 1 tray , 6 tray in 1 carton,carton is 35*35*33.5 CM, tray is φ 328*48.1CM
Delivery Time: 3-15 work days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 2,000,000pcs/Month
Detail Information
Application: TV, Set Box,IP Camer,DVR OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Plating: Dip PCB Port: Single Port
Coil Number: Autotransformer Part Number: 1120-204005
High Light:

Micro Usb Female Connector

,

Usb B Female Connector


Product Description


90 Degree 4Pins USB Female Connector Insert Board A Type 2.0

Spectifications


Part Number

Manufacturer
Part Number

Manufacturer

Description

1120-204005

1120-204005

PHC

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC USB Female

Jack

Insart Board



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

No

Shielded






Specifications

1. usb connector
2. Specification is customized
3. Various types for choice
4. Rich experience in manufacturing
5. Prompt lea


Product Description


1. usb connector

2. Specification is customized
3. Various types for choice
4. Rich experience in manufacturing
5. Prompt lead ti

Current rating: 3AMP

Contact resistance: 20MΩ Max

Insulation resistance: 1000 MΩ Min

Withstand voltage: AC 500V

Gold plated, from -55°C to +105°C

Tin plated, from -40°C to +105°C

Contact material: Brass/Phosphor Bronze

Contact plating: Au or Sn over 50 u" Ni

Insulator material: Polyester (UL94V-0), Nylon-66/PBT

Drawing

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 ( PHC )

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 0


Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .All the step are
 doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM  for PULSE
7. Active Environmental policy
8. Every module  tested 3times  (not just batch tested)


Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 1
                                   Metal And Terminal Stamping ; Plastic Injection


Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1) New Project: Strong technical and ideal support your new design
2) Existing projects: Try to help customer to save the cost to offer the good quality product and save
3) time.
4) Free Samples:3-5 PCS of each part number
5) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6) Customer complaint:24-48 hours reply 8D report
7) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8) kits if customers are not satisfied)


Equipment

90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 2


Main Customers


90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 3               90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 4         90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 5

 90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 6              90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 7               90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 8
 90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 9      90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 10       90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 11


90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 12             90 Degree 4Pins USB Female Connector Insert Board A Type 2.0 13


Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

                                                                                          -------------  PHC  Sales & Support Team
