2XN stacked multi RJ45 with Magnetic and POE female RJ45

Basic Information

Place of Origin:	China
Brand Name:	PHCONN
Certification:	ROHS UL certification
Model Number:	R01-P7550523D5W

Minimum Order Quantity:	500pcs
Price:	DongGuan Penghui electronics co.,ltd
Packaging Details:	Stand export packaging
Delivery Time:	15-25days
Payment Terms:	Western Union, T/T
Supply Ability:	500K/Month

Get Best Price Contact Now

Detail Information

Package:	Stand Export Packaging	Poe Std:	IEEE 802.3af/at
Transformer:	10/100/1000/2.5G/5G Base - T Options	Product Number Of Ports:	2/4/8/12/16 Port Options
Welding Process:	THT Wave Soldering	Left LED:	Color Options , Single Color Or Dual Color LED
Right LED:	Color Options , Single Color Or Dual Color LED	Specifications:	R01 Series
Original Munafactuer:	PHCONN	Application:	Server/ Switch /industrial Equipment,/network Equipment
POE Spec:	POE/POE+/POE++	Shielding Housing:	Copper Alloy ,Tin And Nickel Plated
Emi Finger:	With Or Without
Highlight:	Magnetic RJ45 jack with POE , Stacked multi RJ45 connector , Female RJ45 with magnetic attachment

Product Description

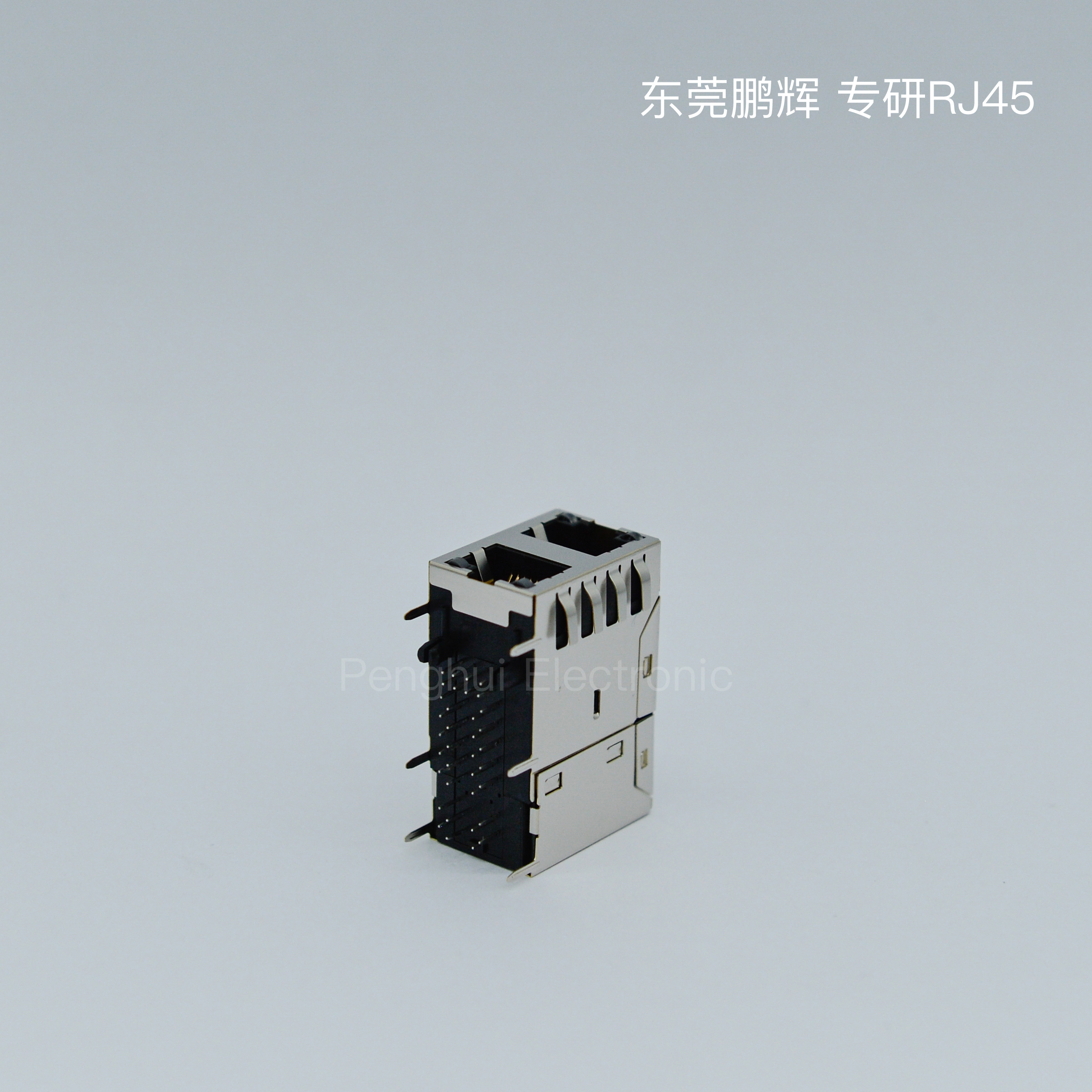

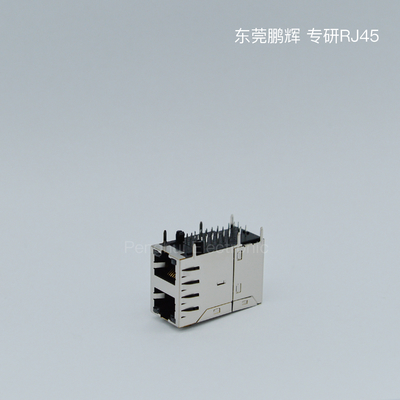

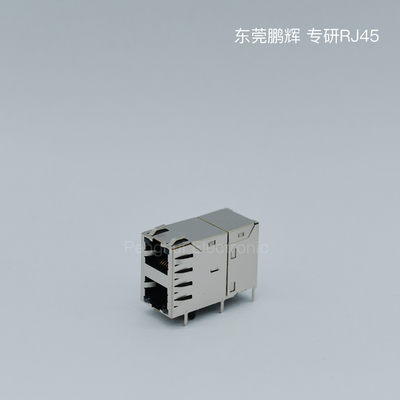

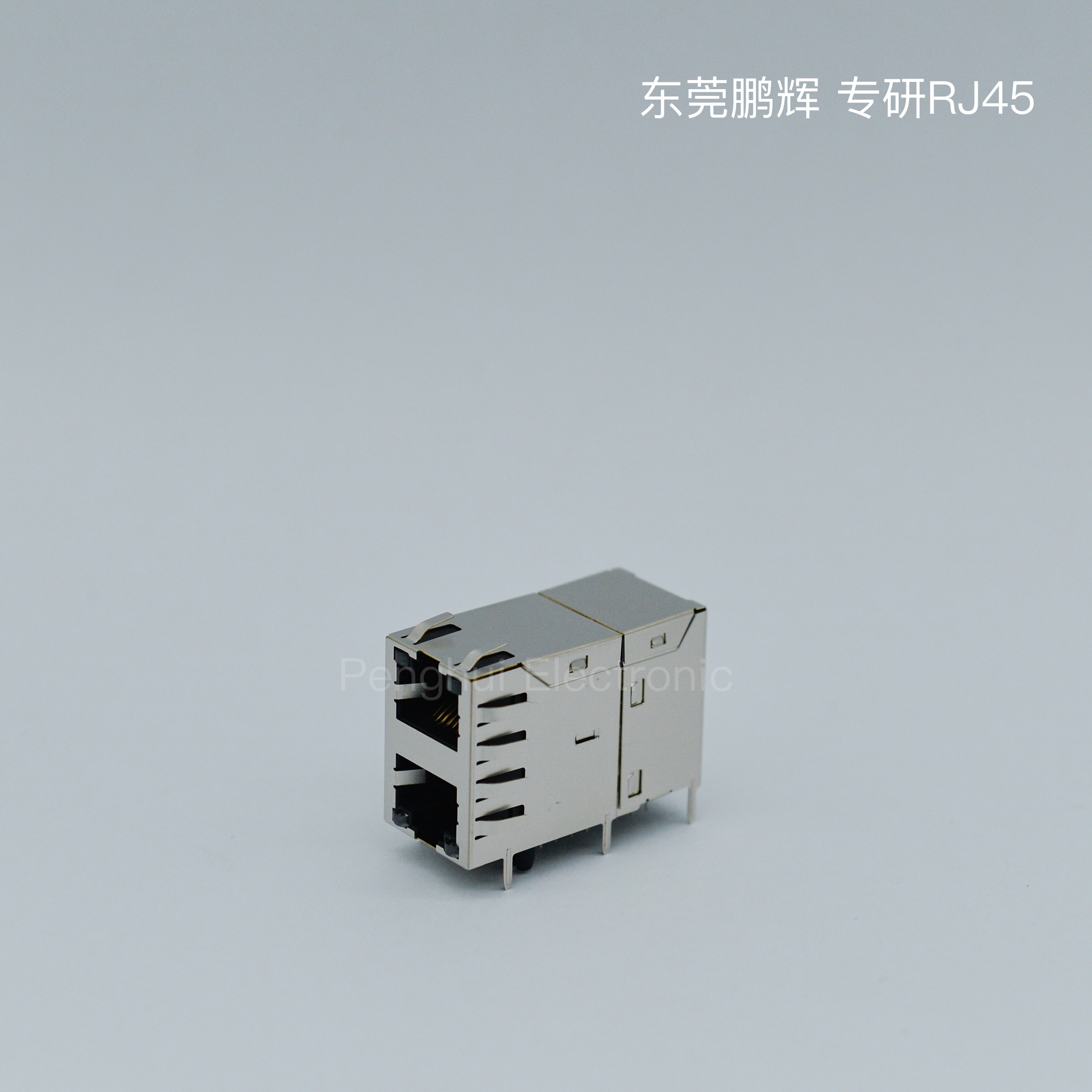

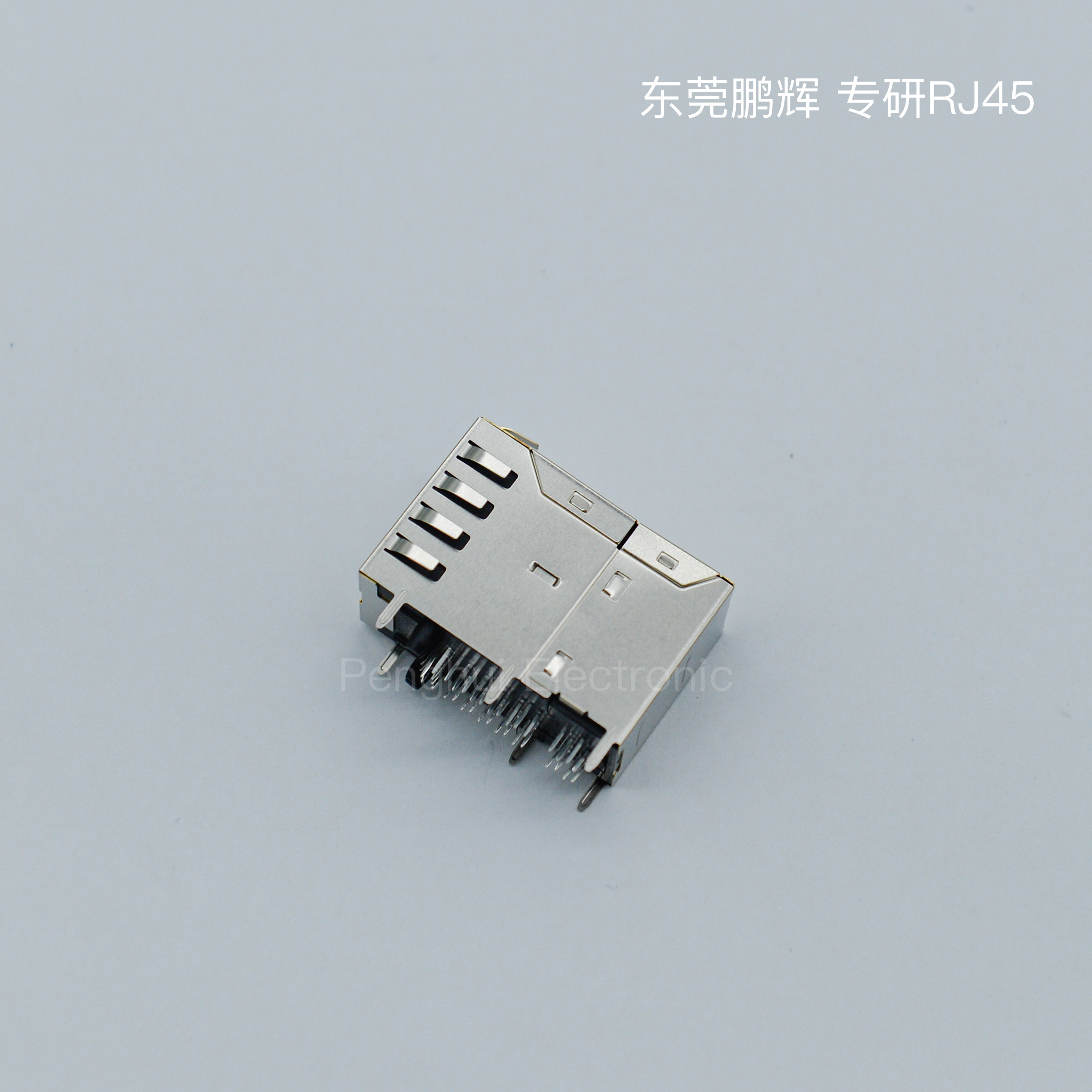

2XN Stacked Multi RJ45 with Magnetic and POE Female RJ45

RJ45 with 10/100/1000 Magnetic with POE LED options

Material Specifications

Housing: PA46 UL94V-0 Black
Contact: Phosphor Bronze, Gold plated on contact area 6u"
Input Terminal: Brass
Metal shielding: Copper alloy with Nickel plated

Environmental Requirements

Lead-free process, compliant RoHS

Electrical Specifications @25°C

Inductance	350uH Min With 8mA DC bias
Insertion loss	1-100MHZ -1dB max
Return loss	1-30MHZ -18dB min 30-60MHZ -16dB min 60-80MHZ -12dB min 80-100MHZ -10dB min
Common Mode Rejection	1-100MHZ -30dB min
Cross Talk	1-100MHZ -30dB min
DC current	720mA MAX @57VDC continuous

Operating and Storage Temperature

Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

Wave Soldering Specifications

Peak temperature: 260°C
