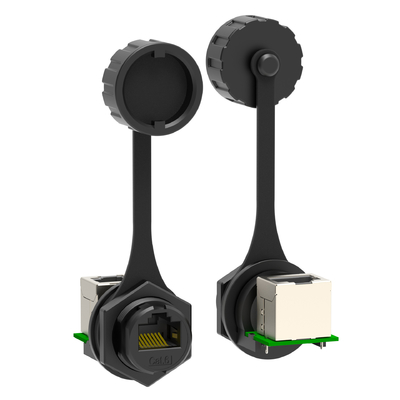

RJ11/RJ45/RJ48 Industrial Waterproof Connector

Product and Electrical Parameters

Name:RJ11/45/48 Industrial Waterproof Connector
Material: High-quality flame-retardant PA66
Terminal: Phosphor bronze contact with heavy gold plating

Interface: RJ11/45/48
Performance:Complies with standards, passed SGS testing
Operating

Temperature:** -20°C to +75°C
Flame Rating: UL94-V0
Installation Method:Panel mount (with locking mechanism)
Panel Thickness: ≤ 4 mm
Rated Voltage:125 VAC
Ingress Protection (IP) Rating:IP67
Durability (Mating Cycles): ≥ 1000 cycles
Withstanding Voltage:1000 V AC
Insulation Resistance:1000 MΩ
