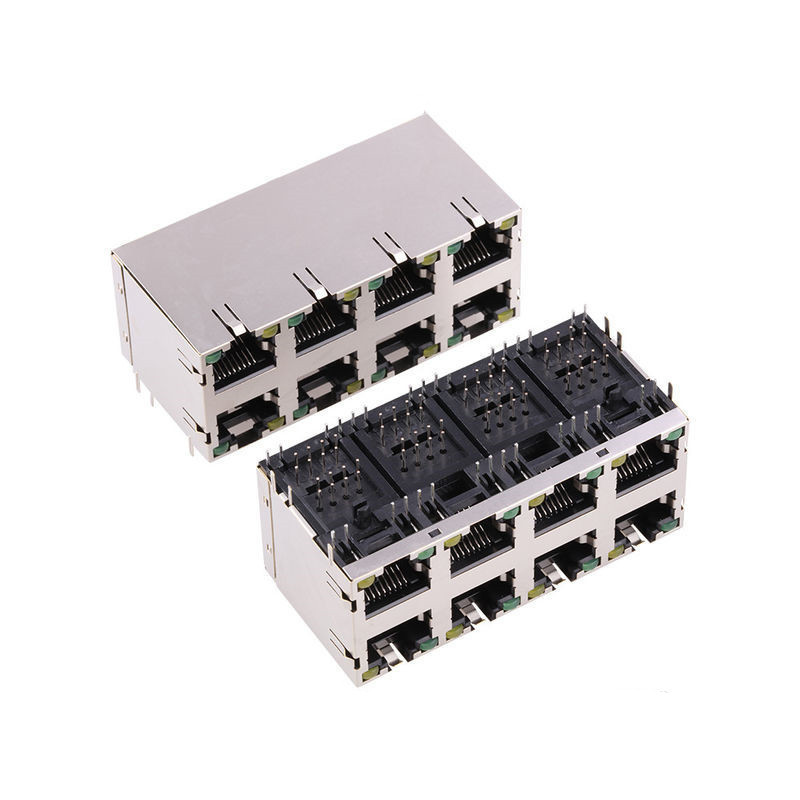

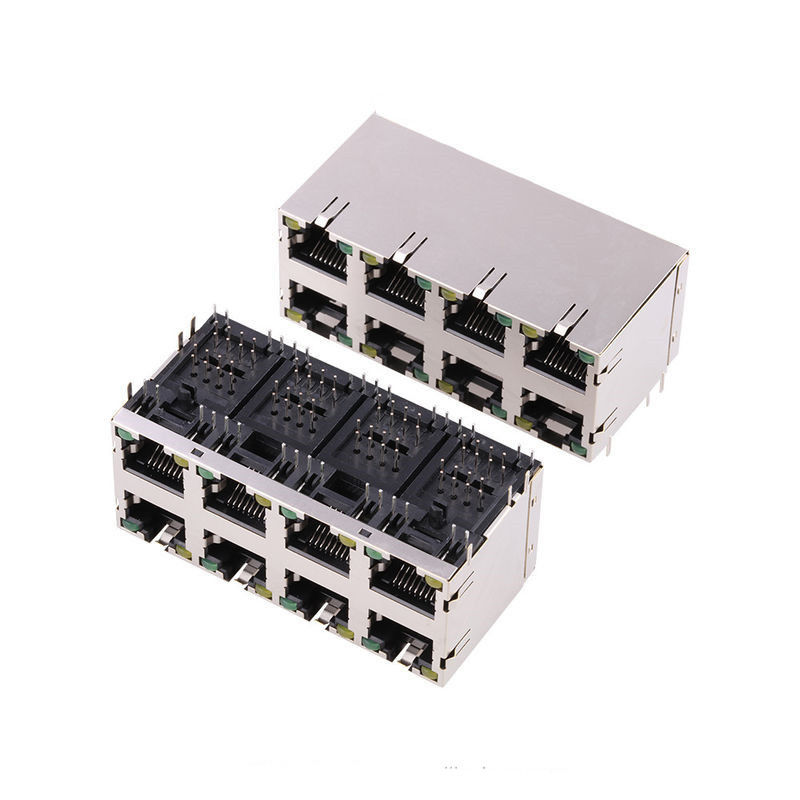

8P8C Female 2X4 8 Port RJ45 Jack Connector With LED Light

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: UL
Model Number: phc1059
Minimum Order Quantity: 100 pcs
Price: 1.1-1.5 USD
Packaging Details: Blister box packaging products, carton packaging Blister box
Delivery Time: 5-15 work days
Payment Terms: L/C, T/T, D/P
Detail Information
Type: Multi Type Gender: Female
Application: PCB,Audio & Video,Communication,Panel Mount,PRINTER Product Name: RJ45 Cat5e Cat6 Cat6a Metal Boot Commscope Keystone Jack
Ports: 8 Ports Transmission Rate: 10/100Mbps
Durability: 750 CYCLES MIN Insulation Resistance: 500 MEGOHMS MIN @500V DC
High Light:

2X4 RJ45 Jack Connector

,

8P8C RJ45 Jack Connector

,

2X4 RJ45 Female Jack


Product Description

8 Port RJ 45 8P8C Female 2X4Port Jack Connector with LED Light



ELECTRICAL



CURRENT RATING:

1.5 AMPS

VOLTAGE RATING:

125 VAC RMS

INSULATION RESISTANCE:

1000 MΩ Min. @ 500V DC

WITHSTAND VOLTAGE:

1000 V AC OR 1500V DC RMS @0.5mA 50Hz / 60Hz 1 Minute

CONTACT RESISTANCE:

1XN ROUND PIN 35 mΩ Max./ 1XN FLAT PIN 45 mΩMax./

2XN ROUND PIN 40 mΩ Max./ 2XN FLAT PIN 50 mΩMax.



MECHANICA



MATING/UNMATING FORCE:

22N / 2.27kg Max

RETENTION STRENGTH:

57.83N Min./ 30N Min.

DURABILITY:

750 MATING/UNMATING CYCLES Min.

ENVIRONMENTAL

OPERATION TEMPERATURE:

-40℃~+85℃ / -20℃~+70℃

STORAGE TEMPERATURE:

-10℃~+40℃ RELATIVE HUMIDITY<80%



MATERIAL



HOUSING:

PBT/PA46/PA66/ABS/PC, UL94V-0 OR UL94V-2

TERMINAL:

DIAMETER 0.46mm/THICKNESS 0.35mm PHOSPHOR BRONZE,SELECTIVE GOLD PLATING OVER NICKEL

GOLD PLATING:

Fu inch , G/F inch, 3u inch, 6u inch,15u inch, 30u inch, 50u inch
