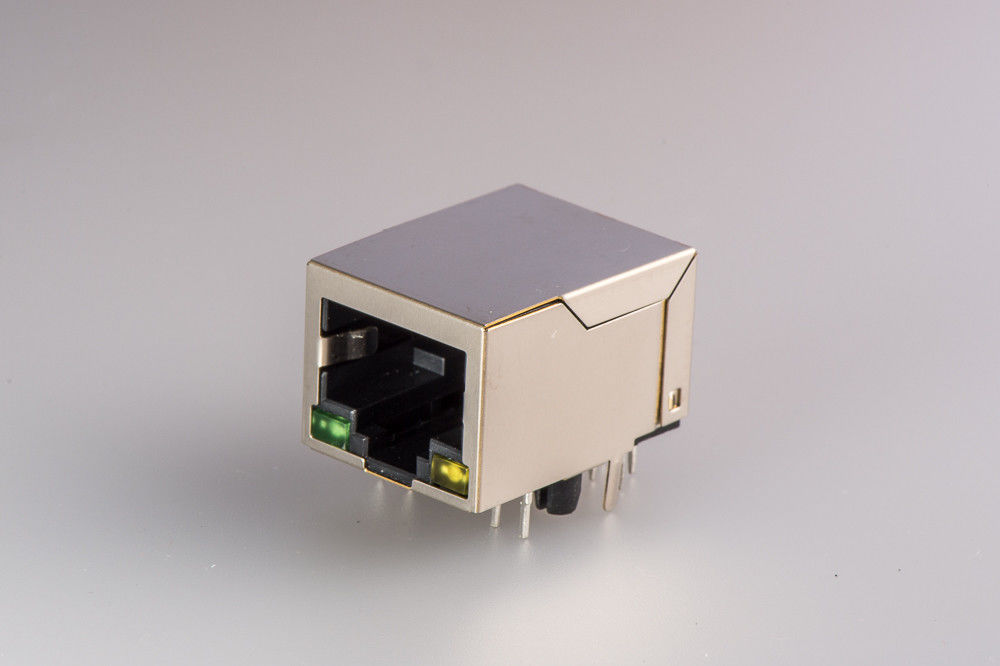

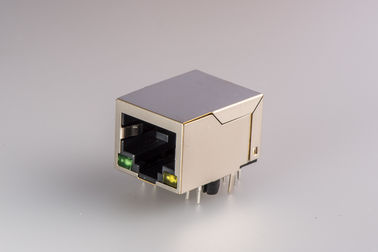

8P8C RJ45 With Transformer 10 / 100 , Registered Jack 45 21.6MM Single Port With Shield / LED

Basic Information
Place of Origin: GuangDong , China
Brand Name: PHC
Certification: ISO9001-2008 , RoHs , SGS , UL
Model Number: RMS-001B-08A6-GY
Minimum Order Quantity: 500pcs
Price: USD 0.6 - 1.2 PCS
Packaging Details: 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time: 24-30 work days
Payment Terms: D/A, D/P, L/C, T/T,paypal
Supply Ability: 3000,000pcs/Month
Contact Now
Detail Information
Shield: Brass Alloy Plastic: PBT
Terminal: Phosphor Copper Soldering Type: THT
LED Color: Yellow, Gree, Red, Blue, Double Color Option Mounting Type: Side Enter
Orientation: 90 Degree Application: 10 / 100 / 1000 MB

Product Description



Low Profile  21.6MM  Single Port  RJ45 With Transformer 10/100 And LED





Spectifications



Part Number

Manufacturer

Part Number

Manufacturer

Description

RMS-001B-08A6-GY

RMS-001B-08A6-GY

PHC

 8P8C  21.6MM  Single Port RJ45 With Transformer 10/100 And LED



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45

10/100 Mbps

Side Enter



Orientation

Termination

LED Color

Shielding

90Degree Angle (Right)

Solder

Green/Yellow

Shielded



Feature:



1.Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2.Contact:Phosphor Bronze C5191,Thickness=0.35mm plated,Nickel 30u" Min, Gold plated on content area 6u"Min
3.Housing:Thermoplastic PBT+30%GF UL94V-0 rated
4.Operating Temperature:0℃ --70℃
5.Storage temperature:-40℃--85℃



Peak reflow temperature rating 245℃
1.Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:(25℃)

1.Turns Ratio:
Tx & Rx = 1:1±5%

2.Insertion Loss:
@1-80MHz:-1.0dB Max
@100MHz: -1.2dB Max

3.Return Loss:
@1-30MHz:-16dB Min
@60-80MHz:-12dB Min

4.Common Mode Rejection:
@1-100MHz:-30dB Min;
@200MHz:-20dB Min

5.Crosstalk:
@1-100MHz:-30dB Min

6.OCL:
@100KHz,0.1V
@8MADC:350uH Min

7.Hi-Pot:1500VAC,1mA,1Sec



Lead-free process,compliant RoHS



Drawing



8P8C  RJ45 With Transformer 10 / 100 , Registered Jack 45  21.6MM  Single Port  With Shield  /  LED
