PBT Material SMD Rj45 Transformer Pcb Mount / Amp Modular Connectors Jacks

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHC
Certification: ISO9001 : 2008 , SGS , RoHs , UL
Model Number: 1060-208047
Minimum Order Quantity: 500 PCS
Price: Negotiable price
Packaging Details: 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; vacuum package,boxes in carton
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Contact Now
Detail Information
Product Name: SMT Rj45 Application:: PCB
Material:: PBT Contact Plating:: 1'-50u'
Plating:: Gold Or Nickel Gold-Plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u"

Product Description

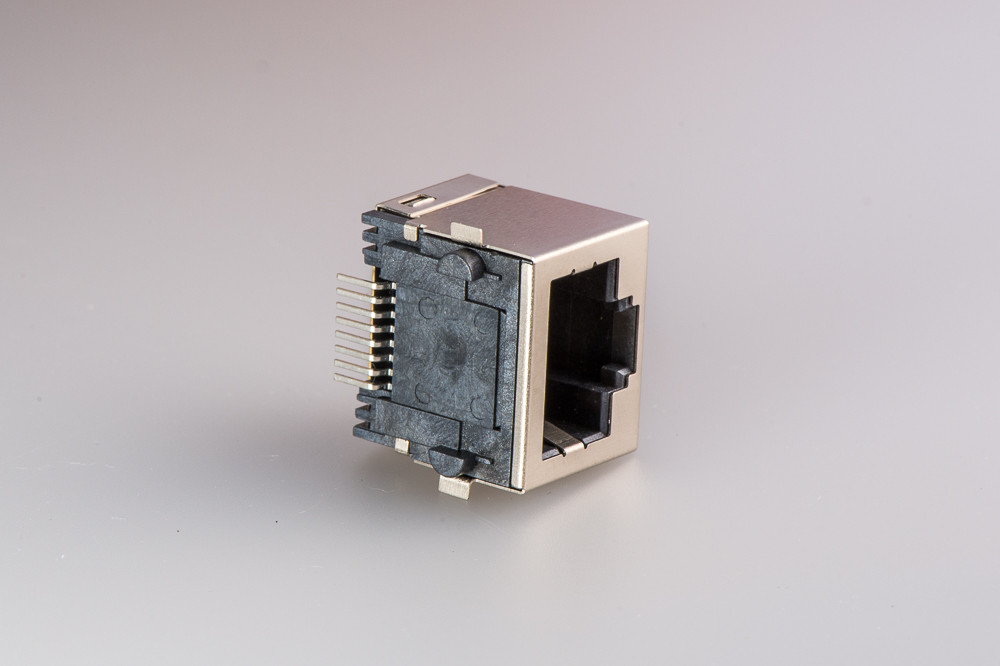

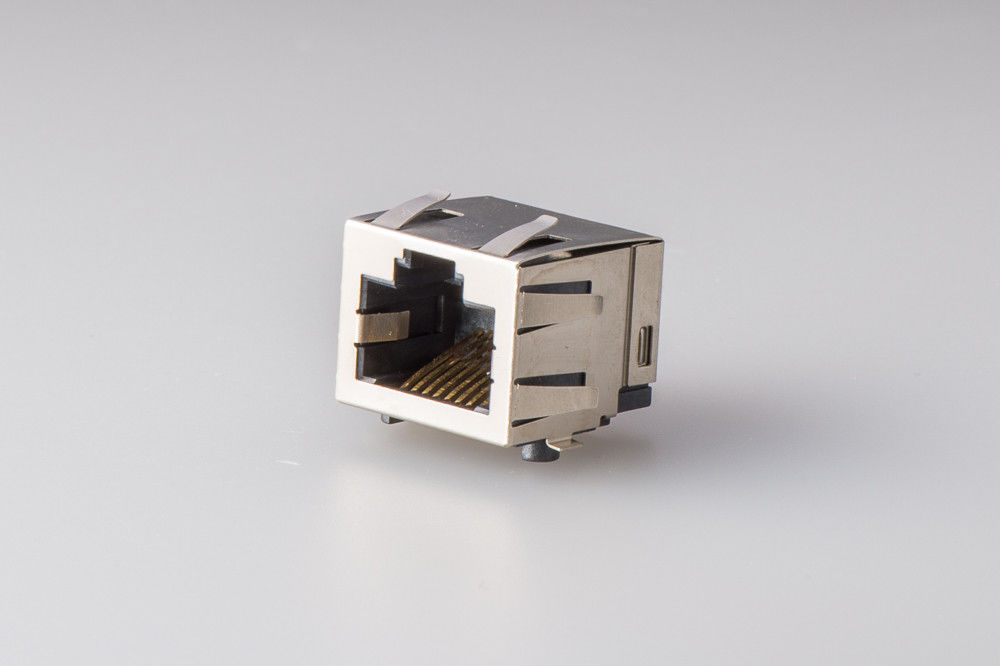

1060-20847 Right Angle Modular SMD RJ45 Jacks  , W / Led RJ45 15.5mm





rj45 transformer pcb mount/amp connectors modular connectors jacks



DESCRIPTION
rj45 panel connector with led/rj45 transformer pcb mount/amp connectors modular connectors jacks
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force

2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g

8 CONTACTS….900g 10 CONTACTS....1050g

2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
5.LED Specification Standard LED Color: LED Wavelength: Forward (V MAX): Typical (V TYP): Luminous Intensity:
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
Orange 580-610 nm 2.5V 2.1-2.2V 50-100 MCD
ENVIROMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.





Drawing



1060-20847 Right Angle Modular SMD RJ45 Jacks  , W / Led RJ45 15.5mm

( PHC )



PBT Material SMD Rj45 Transformer Pcb Mount / Amp Modular Connectors Jacks
