SMT RJ45 Connector 1x1 Tab-Down 10 / 100Base-T MIC26023-5134W-LF3 PHCONN

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RMT-462A-12F6-GY Rev.A0
Minimum Order Quantity: 5000PCS
Price: Negotiable price
Packaging Details: 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; vacuum package,boxes in carton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Detail Information
Application: PCB,networking,Telecom,Signal Color: Black/White/OEM
Material: Phosphor Bronze Pin: 8pin
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket Housing: Thermoplastic Plastics
Contact Resistance: 50 Milli Ohms Voltage Rating: 125vac
High Light:

rj45 network port

,

rj45 connector jack

,

SMT RJ45 Connector 1x1


Product Description

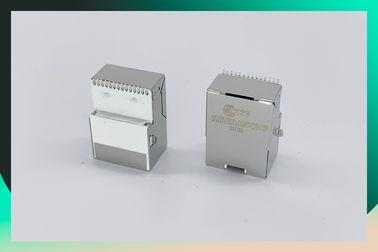

21.6mm 10P10C Magnetic RJ45 Jack Single Port Ethernet Stacked With Shield





Specifications



Part Number

Manufacturer

Part Number

Manufacturer Description
RMT-462A-12F6-GY Rev.A0 RMT-462A-12F6-GY Rev.A0 PHCONN 21.6mm 10P10C Magnetic RJ45 Jack Single Port Ethernet Stacked With Shield

Series Connector Type Applications Mounting Type
Connectors, Interconnects PHC RJ45 Female 10/100 /1000 Mbps Insert Plate

Orientation Termination LED Color Shielding
90° Angle (Right) Side enter Solder G/Y Shielded





Electrical:



1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz



Operating and storage temperatures:



1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃



Application:



1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box



Drawing





SMT RJ45 Connector 1x1 Tab-Down 10 / 100Base-T MIC26023-5134W-LF3 PHCONN 0





Why Choose PengHui Quality



Quality :



World’s Leader supplier of Integrated RJ45 Connector and PCB connector



Except the plating, From Design tooling, stamping, Injection molding, assemble, Testing, packing. All the step are doing by ourself. So we can control the quality.



1) Manufactured under strict controls.

2) ISO 9001:2008

3) UL Certification

4) Reach Cetitifaction

5) RoHS compliance

6) OEM for PULSE

7) Active Environmental policy

8) Every module tested 3times (not just batch tested)





Production&Testing

PHC have more than 30 units automation equipment to the product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

SMT RJ45 Connector 1x1 Tab-Down 10 / 100Base-T MIC26023-5134W-LF3 PHCONN 1



Storeroom Of Mold





SMT RJ45 Connector 1x1 Tab-Down 10 / 100Base-T MIC26023-5134W-LF3 PHCONN 2





Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
