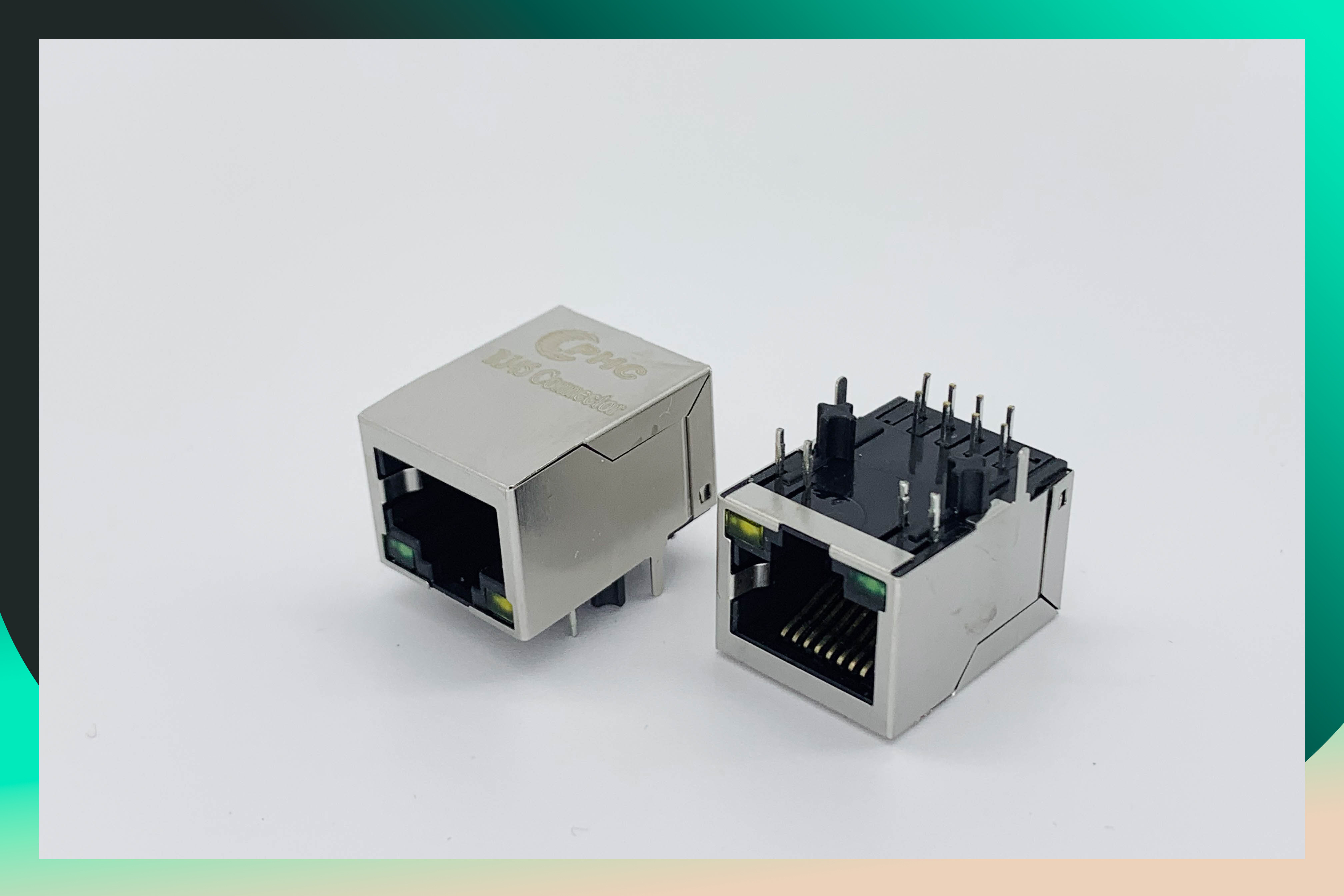

RMS-001L-08A0-GY-2 100 Base-T 21.6L RJ45 with integrated magnetics with G/Y LEDs

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001;ISO14001;SGS;
Model Number: RMS-001L-08A0-GY-2
Minimum Order Quantity: 5000PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Detail Information
Application: PCB,Audio & Video,Telecom,Internet Cable,PRINTER Pin: 8p8c
Connector Type: Ethernet RJ Connector Product Name: 90 Degree RJ45 Adapter
Insulation Resistance: 1000 Megohms Min @ 500 Vdc Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
Shield: COPPER ALLOY(OR STEEL ALLOY) 0.20mm THICKNESS PLATING Nl Certification: ROHS,ROHS UL CEM
Gender: Female Type: RJ45
Color: Black Item: Ethernet Rj45 Modular Female Pcb Jack
High Light:

rj45 network port

,

rj45 connector jack

,

100 Base-T 21.6L RJ45


Product Description

RMS-001L-08A0-GY-2 100 Base-T 21.6L RJ45 with integrated magnetics with G/Y LEDs





Electrical:



1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

2. High performance for maximum EMI suppression

3. 350uH minimum OCL with 8mA bias current

4. Current rating 1.5 amps

5. Voltage rating 125vac

6. Insulation resistance 500 MΩmin

7. Contact resistance 30 MΩmax

8. Withstanding voltage AC 1500V RMS 50Hz or 60Hz 1 min

9. Insertion loss: -1.2dB maximum @100KHz-100MHz

10. Return loss: -18dB minimum @1MHz-30MHz

11. 14dB minimum @30MHz-60MHz

12. 12dB minimum @60MHz-80MHz

13. 10dB minimum @80MHz-100MHz

14. Common mode rejection: -30dB minimum @1MHz-100MHz

15. Cross talk: -30dB minimum @1MHz-100MHz



Operating and storage temperatures:



1. Operating temperatures: -40 to 85℃

2. Storage temperatures: -40 to 85℃



Application:



1. Networking products: NIC, HUB, switch, router, bridge, work

2. Station: PC/system, printer, server, NB, IA cable modem, XDSL application, set-top-box



Drawing

RMS-001L-08A0-GY-2 100 Base-T 21.6L RJ45 with integrated magnetics with G/Y LEDs 0
