| Place of Origin: | GuangDong, China |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001;ISO14001;SGS |
| Model Number: | RMS-031A-UL |
| Minimum Order Quantity: | 500 PCS |
| Price: | Negotiable price |
| Packaging Details: | vacuum package,boxes in a catrton |
| Delivery Time: | 3-30 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, PAYPAL |
| Supply Ability: | 5000000PCS/Week |
| Type: | RJ45 | Application: | PCB,Audio & Video,Communication,Panel Mount,PRINTER |
|---|---|---|---|
| Product Name: | Multi Ports Rj45 4 Ports Modular Jack Shielded RJ45 Female Connector | Switch Capacity: | 1Gbps |
| Transmission Rate: | 10/100/1000Mbps | Durability: | 750 CYCLES MIN |
| Insulation Resistance: | 500 MEGOHMS MIN @500V DC | Shielding: | Shielded |
| Highlight: | 10/100BASE-TX RJ45 Jack,POE RJ45 Jack,1X1 RJ45 Magnetic Jack |
||

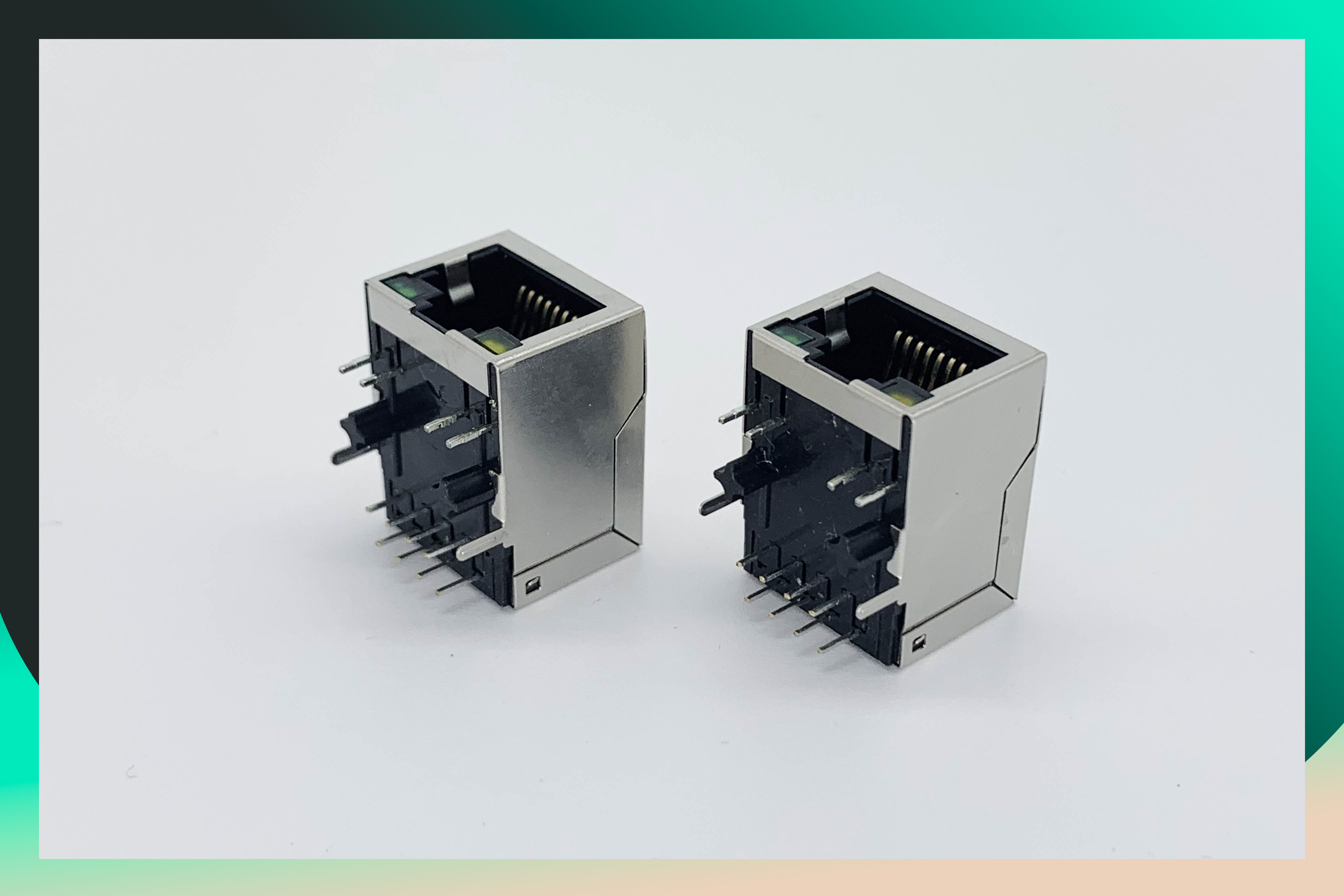

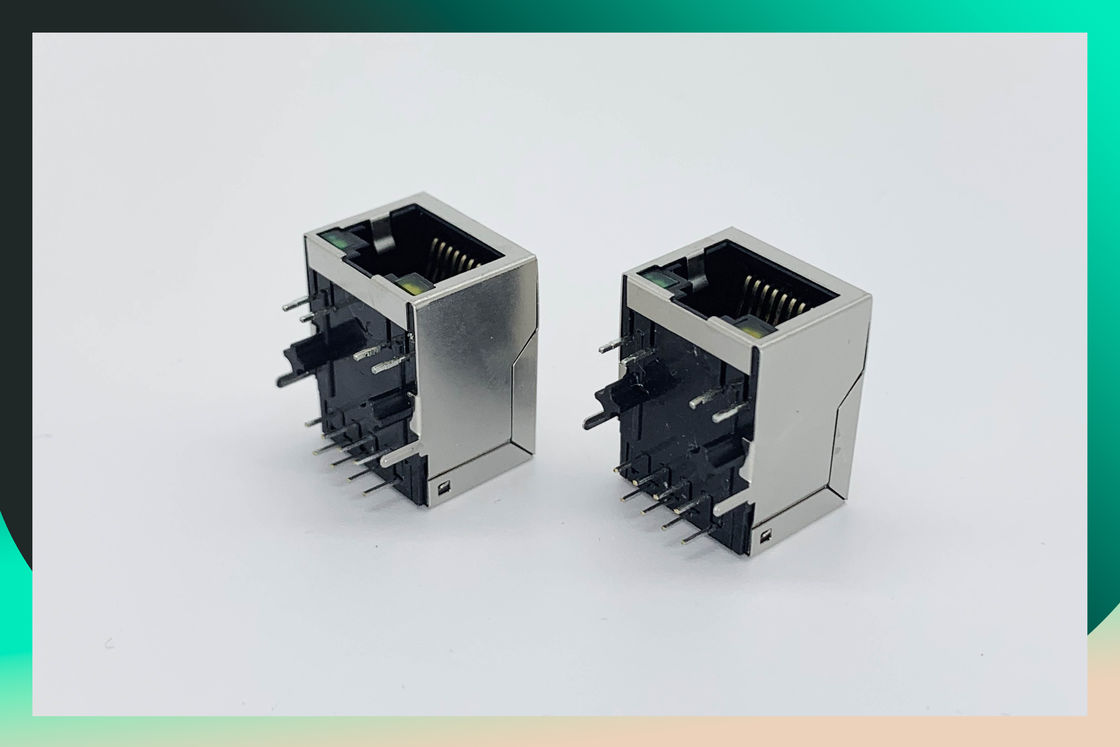

rj45 1x1 connector Power Over Ethernet ( PoE ) 10/100BASE-TX RJ45 Jack With Magnetic Module
Product Specification:
| Specification: | Stacked RJ45 | Cross Part NO: | NONE |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
| Latch: | Tab up | Files: | PDF/3D/ISG/Stp/Step/Datasheet |
Product Details:
| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | -40℃ to +85℃ |
| 10. Storage Temperature | -40℃ to +85℃ |
| 11. Insert Material | UL94V-0 |
| 12. Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
