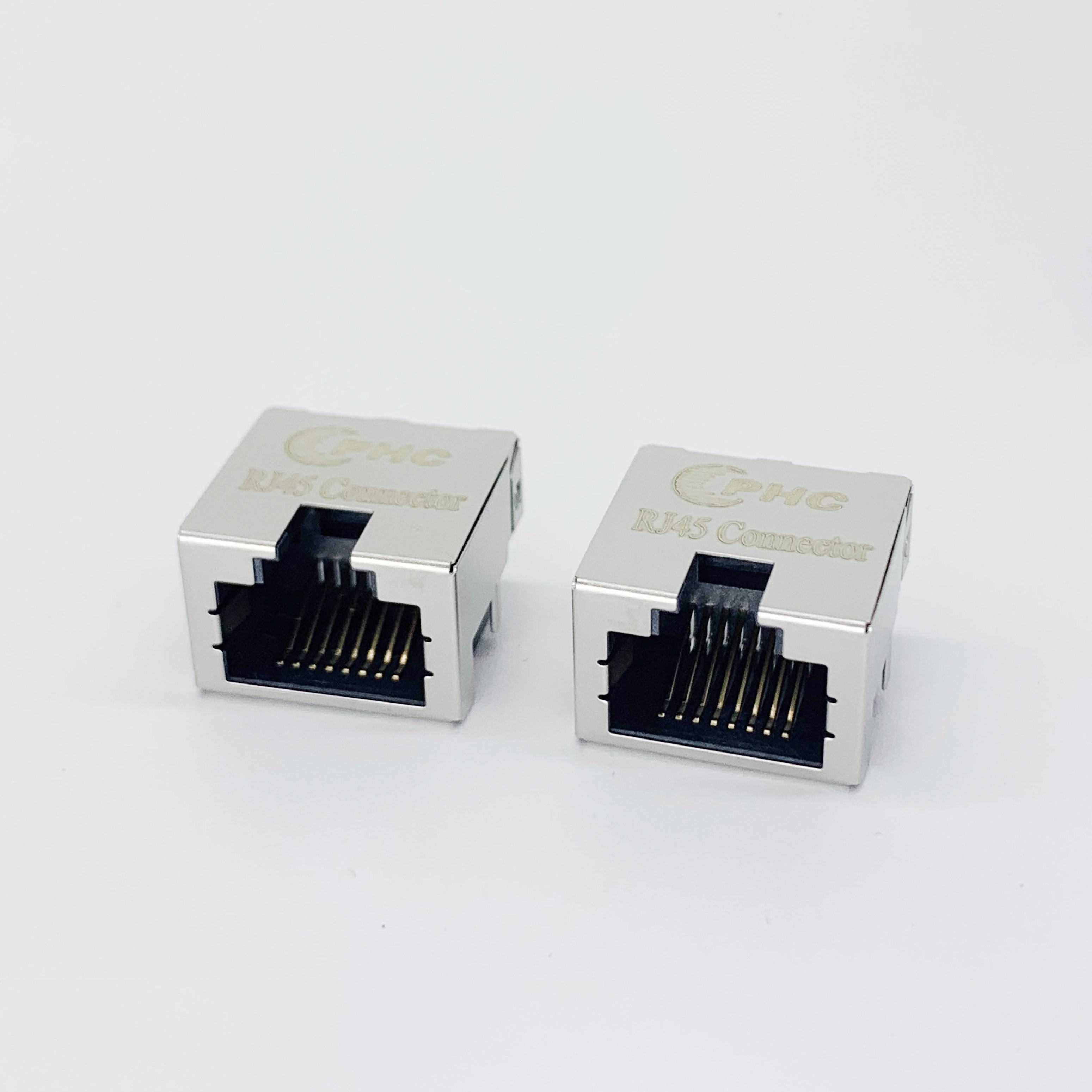

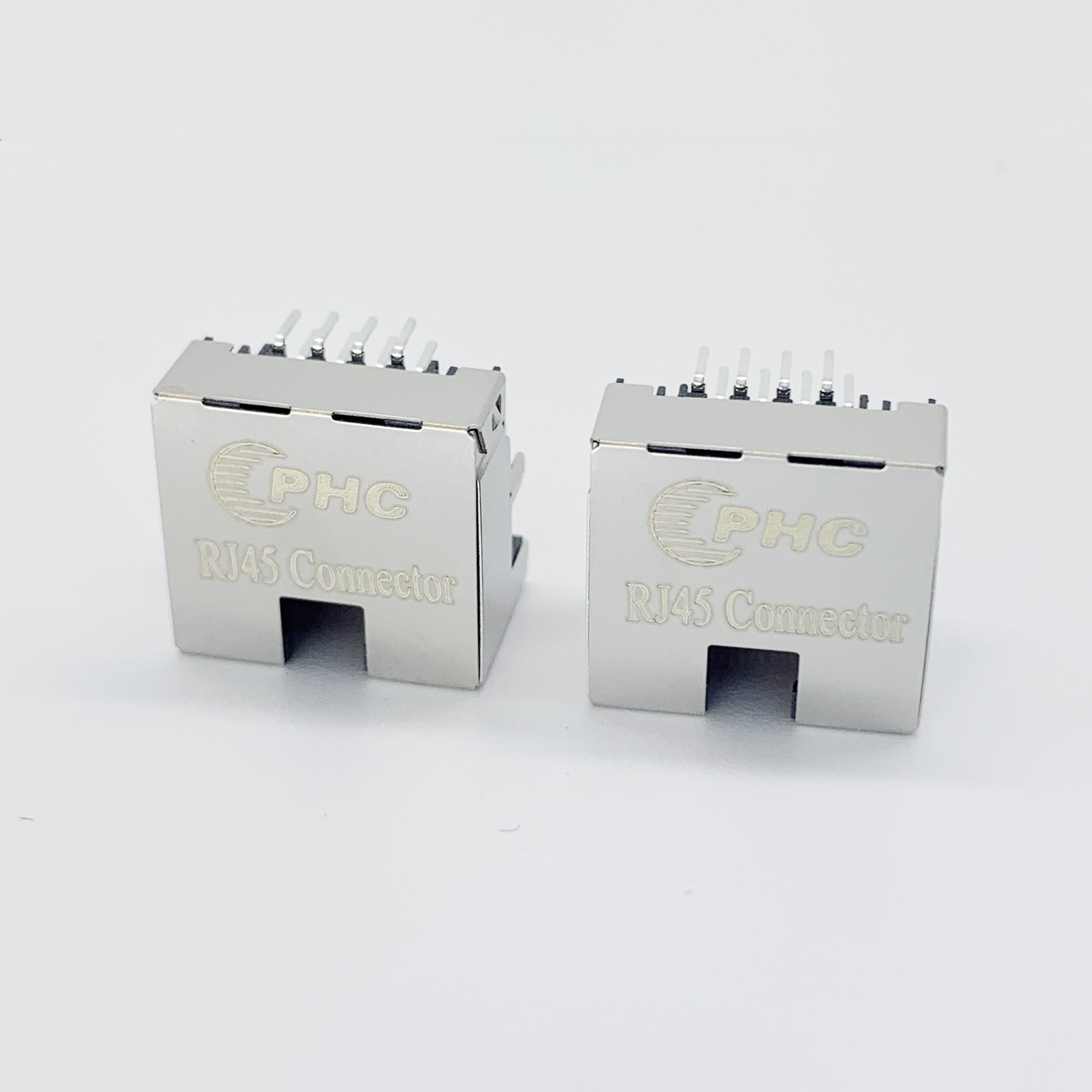

1X1 Tab Up Low Profile RJ45 Jack Without LEDs

Basic Information
Place of Origin: CHINA
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 1060-208061
Minimum Order Quantity: 500 PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in a catrton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Detail Information
Application: PCB,SOHO\LAN-on-Motherboard\Hub\Switch Type: RJ45 Low Profile SMT PCB Jack
Contact Plating: Glod Plating 6u/15u/30u/50u Certification: ROHS
High Light:

1X1 Low Profile RJ45 Jack


Tab Up Low Profile RJ45 Jack


rohs low profile rj45 connector

Product Description

PHCONN208061 Low Profile RJ45 Jack Tab-Up Without LEDs



Part Number 2060-208061
Latch TAB UP
Number of Ports 1X1
Package Height (mm) 11.30
Package Length (mm) 16.18
Package Width (mm) 15.00
Shield EMI Tabs WITH
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


EMS Application


Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly


Features and Benefits:


RoHS peak wave solder temperature rating 260°C

USB module complies with USB 2.0 standards

RJ45 connection meets CAT3, 5e & 6 Fast Ethernet performance standard


Electrical Performance Summary:


Meets IEEE 802.3 specification

High performance for maximum EMI suppression

Minimum 1500Vrms isolation per IEEE 802.3 requirement
