21.6MM Single Port SMD Low Profile RJ45 Jack With 10 / 100 / 1000 Transformer And LED

Basic Information
Place of Origin: GuangDong
Brand Name: PHCONN
Certification: ISO9001-2008
Model Number: RMT-296B-14F4-G2
Minimum Order Quantity: 500pcs
Price: USD1.0 - 1.5 PCS
Packaging Details: 110pcs/reel; 550pcs/ catron
Delivery Time: 24-30 work days
Payment Terms: D/A, D/P, L/C, T/T,paypal
Supply Ability: 1000,000pcs/Month
Detail Information
Shield: Brass Alloy Plastic: HIGH TEMP.LCP
Terminal: Phosphor Copper Soldering Temperature: 255 ℃ 5 Seconds
LED Color: Yellow, Gree, Red, Blue, Double Color Option Mounting Type: SMD And Skining
Orientation: 90 Degree, Side Enter Application: SMD 10 / 100 / 1000 MB
Highlight:

rj45 phone jack

,

low profile rj45 connector


Product Description



Low Profile 21.6MM Single Port SMD RJ45 With 10 / 100 / 1000 Transformer And LED





Specifications



Part Number

Manufacturer

Part Number

Manufacturer

Description

RMT-296B-14F4-G2

RMT-296B-14F4-G2

PHC

Low Profile 21.6MM Single Port SMD RJ45 With 10 / 100 / 1000 Transformer And LED



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female

10/100 Mbps

SMD



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

Green/Green

Shielded





Feature:


1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH

     with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃


Peak reflow temperature rating 245℃
1. Minimum1500Vrms isolation perIeee 802.3requirement



Electrical Specifications:


1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS





Drawing

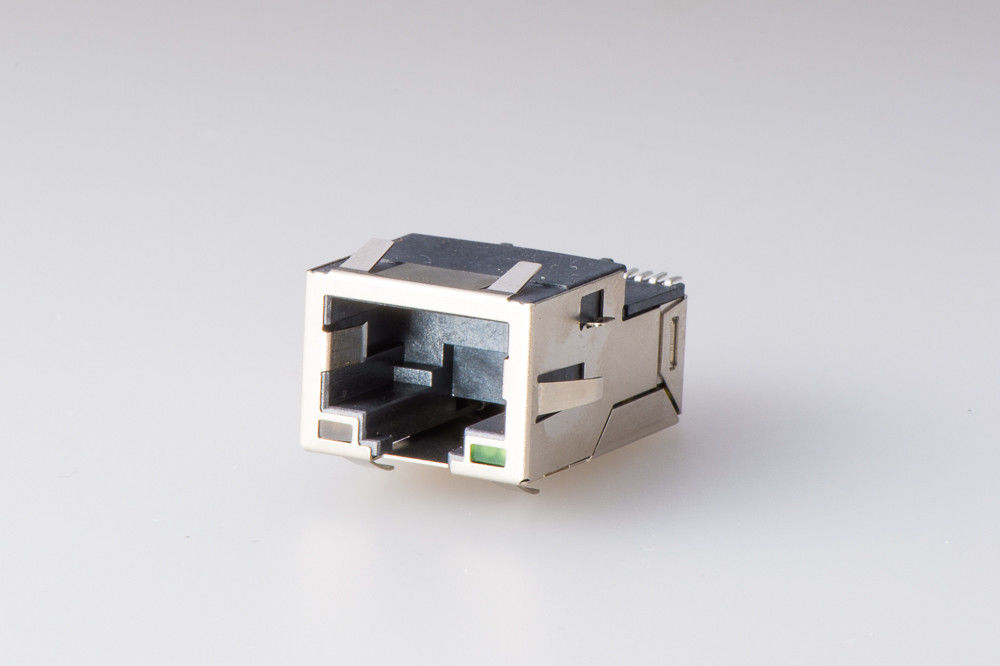

Low Profile 21.6MM Single Port SMD RJ45 With 10 / 100 / 1000 Transformer And LED



21.6MM Single Port SMD Low Profile RJ45 Jack With 10 / 100 / 1000 Transformer And LED 0





Why Choose PengHui Quality



Quality :



World’s Leader supplier of Integrated RJ45 Connector and PCB connector



Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,

packing .All the step are doing by ourself. So we can control the quality.



1) Manufactured under strict controls.

2) ISO 9001:2008

3) UL Certification

4) Reach Cetitifaction

5) RoHS compliance

6) OEM  for PULSE

7) Active Environmental policy

8) Every module  tested 3times  (not just batch tested)





Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.
