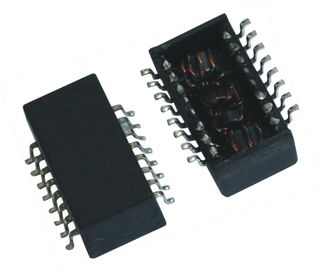

10 / 100 / 1000 Base - TX Single Port Surface Mount Lan Magnetics

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: 4410-016002
Minimum Order Quantity: 500 PCS
Price: USD 0.4 ~ 1.0 PCS
Packaging Details: 20pcs in 1 tray
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: PCB
Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Part Number: 4410-016002 Type: Lan Magnetics
High Light:

10/100Base-t Ethernet Lan

,

Ethernet Pulse Transformer


Product Description


10 / 100 / 1000 Base - T Single Port Surface Mount Lan Magnetics


Specifications



1.Characteristics: 1)10 / 100 / 1000 Base - T
  2)Available in SMD, THT and THT with USB
  3)350µH min. OCL with 8mA bias
  4)Complies with IEEE 802.3
  5)Extended temperature range -40°C to +85°C available
  6)PoE/ PoE+

2. Operation/Application: 1)xDSL Modems
  2)Embedded PC
  3)LAN Applications
  4)Hub, Router, Switches





Feature:


1. IC grade transfer-molded package with stands 260℃ peak temperature profile
2. Complies with IEEE 802.3u and ANSI X3.263 standards including 350uH OCL with 8mA bias from 0℃ to +70℃
3. Operating Temperature:0℃ --70℃
4. Storage temperature:-40℃--85℃

5. Lead-free process, compliant RoHs





Electrical Specifications:



1. Insertion loss:0.1~100MHz:-1.1dB Max

2. Retum loss:30MHz:-18dB Min

                       60MHz:-14dB Min

                       80MHz:-11.5dB Min

3. Cross Talk: 30MHz:-45dB Min

                       60MHz:-40dB Min

                      100MHz:-35dB Min

4. Differential to Common Mode Rejection: 30MHz:-42dB Min

                                                                    50MHz:-37dB Min

                                                                   100MHz:-33dB Min

5. Turn Ratio : 50KHz 0.5V:1CT:1CT±2%

6. Inductance(Ls): 100KHz, 0.1V,DC 8mA:350uH Min

7. Hi-Pot:1500V AC,0.5mA,1Sec



Drawing



10 / 100 / 1000 Base - T Single Port Surface Mount Lan Magnetics



10 / 100 / 1000 Base - TX Single Port Surface Mount Lan Magnetics 0



Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .





  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)




Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.

3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if

customers are not satisfied)

Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.


Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%


Design &Technical strength




We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays
