Lan Transformer Dual Port 10 / 100 / 1000Base-T For Ethernet Switches

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs
Model Number: POE Ethernet transformer 10 / 100Base-T Lan Magnetics 50Pin Modules
Minimum Order Quantity: 500 PCS
Price: USD 0.4 ~ 1.0 PCS
Packaging Details: 100 pcs in 1 tray
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: LAN ETHERNET(PoE&NON PoE)
Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Type: SMT AutomDX: Yes
High Light:

Ethernet Pulse Transformer


Gigabit Ethernet Transformer

Product Description

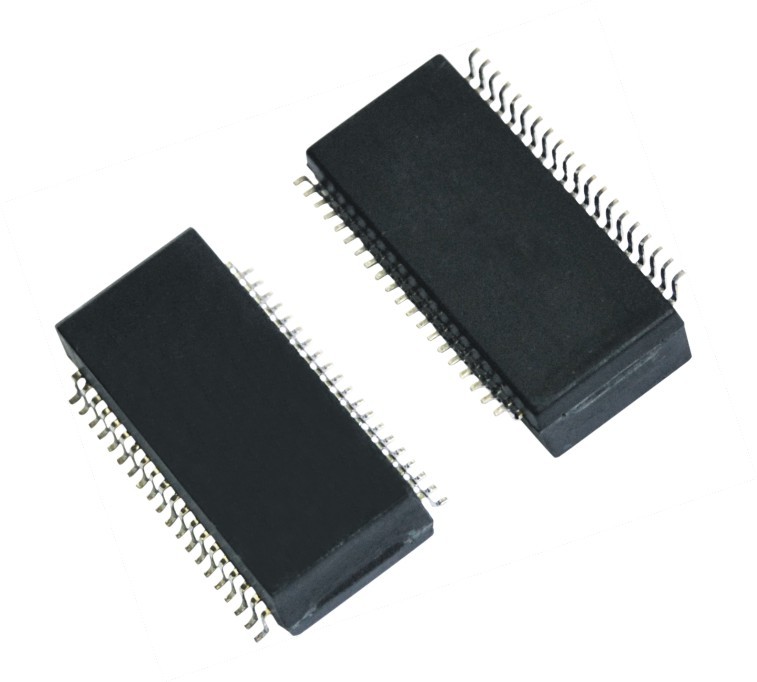

Lan Transformer Dual Port 10 / 100 / 1000Base-T For Ethernet Switches


1. IC grade transfer-molded package with stands 260℃ peak temperature profile
2. Complies with IEEE 802.3u and ANSI X3.263 standards including 350uH OCL with 8mA bias from 0℃ to +70℃
3. Operating Temperature:0℃ --70℃
4. Storage temperature:-40℃--85℃

5. Lead-free process, compliant RoHs


Electrical Specifications:


1. Insertion loss:0.1~100MHz:-1.1dB Max

2. Retum loss:30MHz:-18dB Min

                       60MHz:-14dB Min

                       80MHz:-11.5dB Min

3. Cross Talk: 30MHz:-45dB Min

                       60MHz:-40dB Min

                      100MHz:-35dB Min

4. Differential to Common Mode Rejection: 30MHz:-42dB Min

                                                                    50MHz:-37dB Min

                                                                   100MHz:-33dB Min

5. Turn Ratio : 50KHz 0.5V:1CT:1CT±2%

6. Inductance(Ls): 100KHz, 0.1V,DC 8mA:350uH Min

7. Hi-Pot:1500V AC,0.5mA,1Sec


Why Choose PengHui
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .


  Manufactured under strict controls

  RoHS compliance

  ISO 9001:2008

  OEM  for PULSE

  UL Certification

  Active Environmental policy

  Reach Cetitifaction

 Every module  tested 3times  (not just batch tested)


Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
PHC Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if

customers are not satisfied)


Development Production


Lan Transformer Dual Port 10 / 100 / 1000Base-T For Ethernet Switches 0
